Spectra

by Mindseye Biomedical

Open Source Biomedical Imaging

$39,612 raised

of $30,000 goal

132% Funded! Order Below

Product Choices

$10

Buy me a coffee!

Show your support with a coffee donation.


$349

Spectra Starter Kit

This kit has everything you need to get started experimenting with biomedical imaging, including a small tank phantom, 32-channel flex electrode array, USB cable, and fully assembled, flashed, and tested Spectra board that works with easy-to-install open source host software.


$449

Spectra Deluxe Kit

The whole deal, ready to go. You get everything in the Spectra Starter Kit, plus a custom portable enclosure, an electrode expansion adapter, and a 32-channel, gold-plated electrode cable for performing EIT scans on almost anything, anywhere!


$100

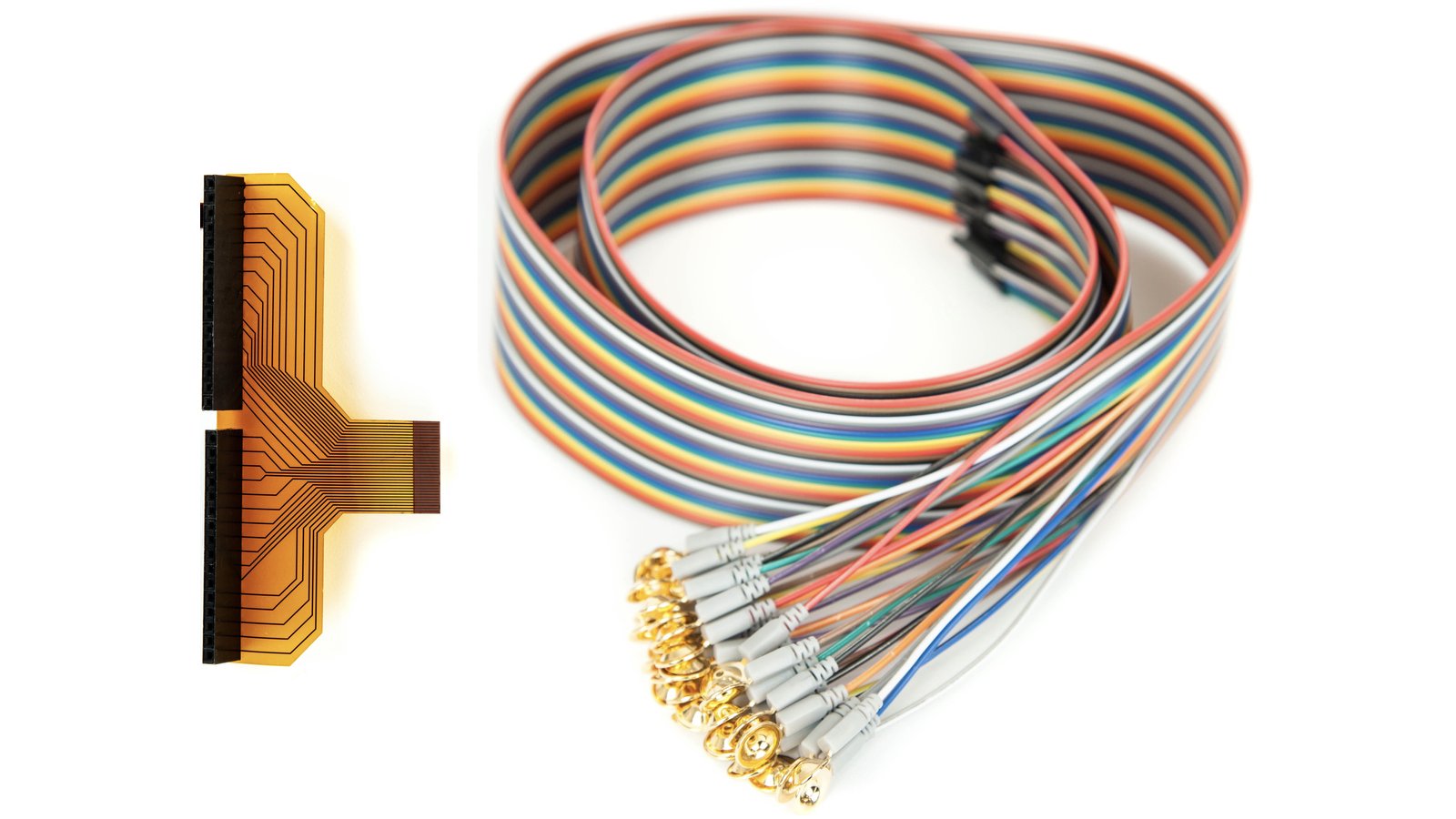

Expansion Kit

This kit includes an electrode expansion adapter and a 32-channel, gold-plated electrode cable (the same as those included in the Spectra Deluxe Kit). The expansion adapter lets you patch out to a standard 0.1" header so you can connect it anyway you want to anything you want. The 32-electrode cable allows you to stick the device on a variety of conductive objects of different sizes as each electrode is independent, gold-plated, and protected by an insulated injection molded cover. The expansion kit gives you the flexibility you need for nearly any experiment.

Details

Recent Updates


As Featured In

Hackaday

Hackaday

"One of the more interesting projects we’ve seen over the past year uses AC currents and an infinite grid of resistors to image the inside of a living organism. It’s called Spectra and it is the brainchild of [Jean Rintoul]."

MickMake

"Not only can you scan the fruit of your choice, but also measure blood flow changes and even determine the presence of hemoglobin in blood samples."

Hackaday

Hackaday

"[Jean Rintoul] has been working on a low-cost way to image the inside of a human body using nothing more than a few electrodes. It can be done cheaply and easily, and it’s one of the most innovative ways of bringing medical imaging to the masses."

Geeky Gadgets

"Spectra enables hackers and scientists to experiment with one of the technologies used in medical imaging electrical impedance tomography (EIT)."

Make

"Safe and easy to use, this system allows you to produce imaging of all kinds of things you previously couldn’t do at home."

Electronics-Lab.com

"Spectra can image lungs, monitor heart activity, and detect changes on materials like bones, tumors and strawberries."

Hackster.io

"I love how Jean is modelling the body as a circuit!"

mikrocontroller.net

"Die wichtigste Eigenschaft des Projektes dürfte aber wohl die Möglichkeit sein, Bildgebungsverfahren auch ohne teure Hardware ausprobieren zu können."

The Amp Hour Logo

The Amp Hour

"It's amazing what you can visualize using impedance measurements and some AC waveforms! @jeantoul is doing awesome work! Hope others take a listen as well, the biomedical field is ripe for innovation."

Safe, Accessible Imaging for Everyone

Spectra is an open source biomedical imaging system that is both safe and easy to use. It allows hackers and scientists to experiment with one of the technologies used in medical imaging — electrical impedance tomography (EIT). For the first time, anyone who wants to explore the fascinating world of medical physics can do so from their own home, without a multimillion dollar CATSCAN.

Would you like to see imagery of your own lungs? Use impedance cardiography to monitor heart activity? Measure the dielectric spectrum of a bone, a tumor, or a strawberry? Are you interested in gesture-based user interfaces? Consider what you would do if you could easily and safely experiment with, and contribute to, the science of biomedical imaging. And what we could all do if there existed a Commons for health care technology.

Lung cross-section from Spectra reconstruction at a single 50 kHz frequency. Inset: Lung cross-section from CATSCAN reconstruction.

Electrical Impedance Tomography: A Primer

Electrical impedance tomography (EIT) is a non-invasive type of medical imaging in which the electrical conductivity, permittivity, and impedance of a part of the body is inferred from surface electrode measurements by sending small AC currents through a conductive body. This impedance information is then used to create an image reconstruction using techniques similar to a CATSCAN. By running multiple frequencies through the body cross-section of interest, you can obtain further information on dielectric spectrums of individual materials located between the electrodes.

This multi-dimensional data is perfect for machine learning to delve into and make EIT and even more powerful tool for transforming human health!

Reconstructing an Image

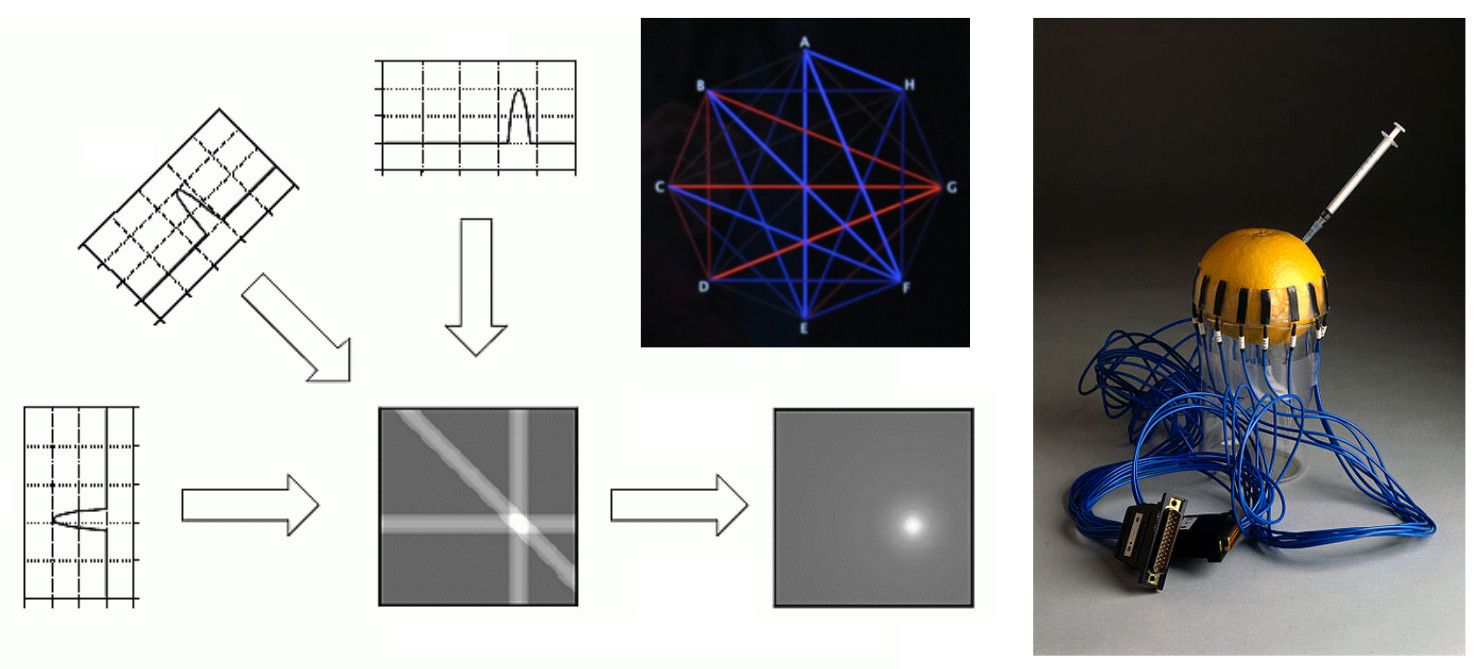

Spectra measures the impedance through a sample at multiple angles (or projections) around the sample. For any given angle, the projection is a line of brighter and darker impedance measures depending on how much attenuation blocks that part of the AC current path. Sometimes, people talk about sinograms, which are simply a display of all of the different projections for a given slice of time stacked together. The resulting image is a blurry version of the correct image.

Safer Than X-Rays

CATSCANs are amazing, but their reliance on ionizing radiation has made them the number one source of radiation in the United States and contributes to the risk of cancer among patients. Spectra is a very low-current device. As such, it is safe enough to use for continuous monitoring and preventative health. Because it does no harm, it is also a great device with which to explore and learn!

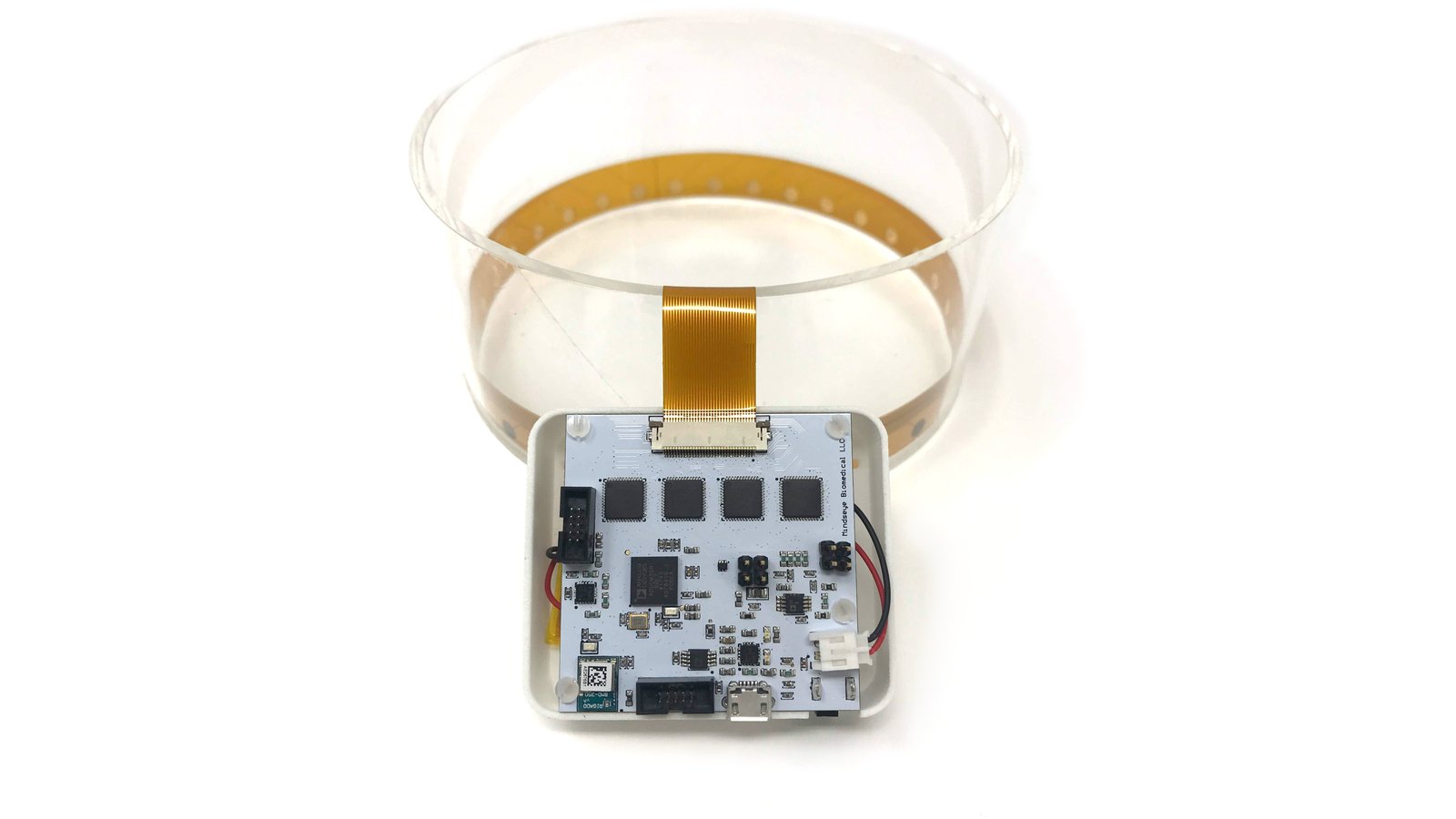

A closer look at the sensing board, tank, and electrode strip. Bluetooth and 32 electrodes in a tiny 2" square.

The First and Only Open Source Imaging System

Historically, medical imaging equipment has been inaccessible, expensive, difficult to use, and even more difficult to improve. The world would be a healthier place if we could experiment with these technologies and contribute to their development. Unfortunately, there just hasn’t been much there to hack on! Spectra is my attempt to change that.

If you had access to an imaging device that was more portable and less expensive – one that operated according to the same principles but was small enough to fit on your desk and safe enough to use there – would you consider that technology worth exploring? Worth improving?

This is the reconstruction software. Easy to get up and running doing image reconstructions.

Motivation & Impact

Imaging is a significant contributor to the cost of health care. Unfortunately, the incentives aren’t there to drive costs down, or fund experimentation. It’s an area ripe for technological improvement, so let’s make inexpensive imaging technology available to more people and get moving! Spectra is open source in order to have greater societal impact by inspiring people to enter the fascinating world of medical physics. Imagine what kind of impact something like the Raspberry Pi ecosystem would have on medical imaging.

We progress more quickly when we share information. Accordingly, we would like to get Spectra into as many hands as possible so we can work together – both to improve the core product and to develop new applications. By moving toward open business models that encourage health care innovation, rather than stifling it, we can help more people live longer, healthier lives.

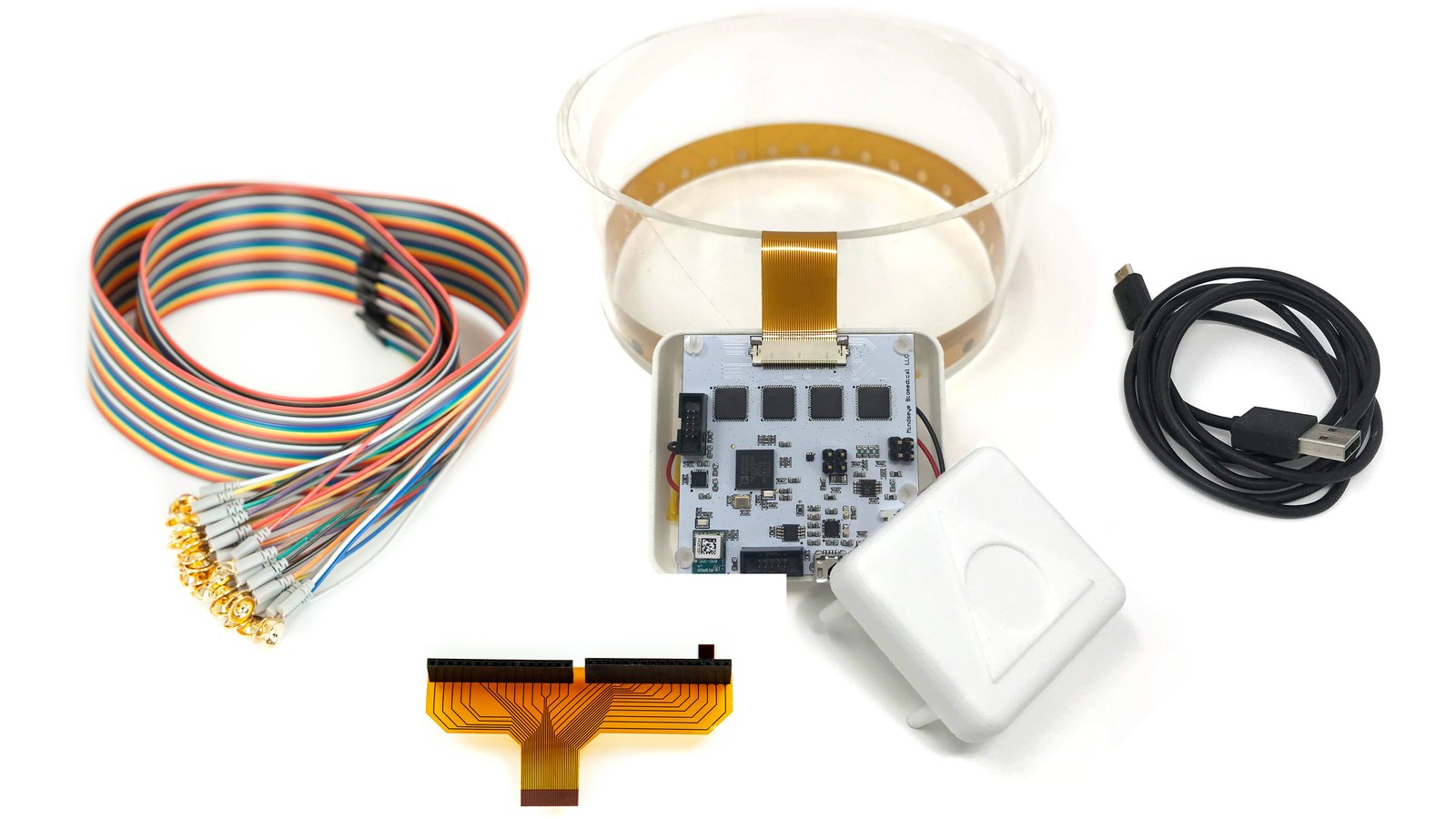

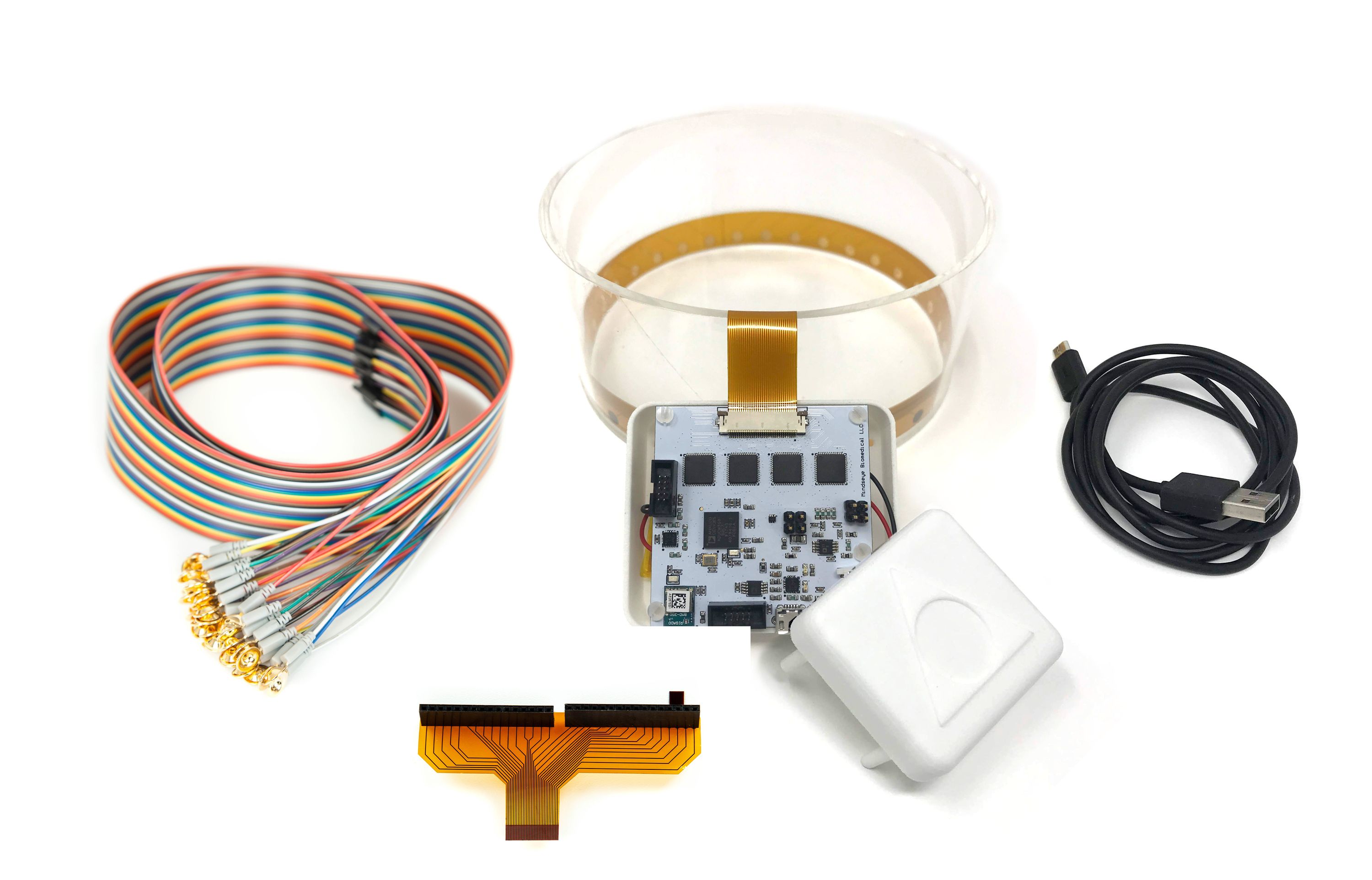

The Spectra Deluxe Kit includes everything.

Easy to Use

Whether you’re a hacker, an academic, or a curious medical technician, your Spectra will arrive ready to go. When it does, you will be just one double-click away from beginning your exploration of at-home bio-impedance spectroscopy, electrical impedance tomography, and image reconstruction.

Though it is only two inches square, Spectra’s Electrical Impedance Tomography system is packed with professional grade features. It will arrive configured to image whatever you place inside a cylindrical glass tank called a ‘phantom’. If you need to image something larger, you can disconnect Spectra from the phantom, connect up to 32 of the included electrodes and attach those electrodes to a conductive body.

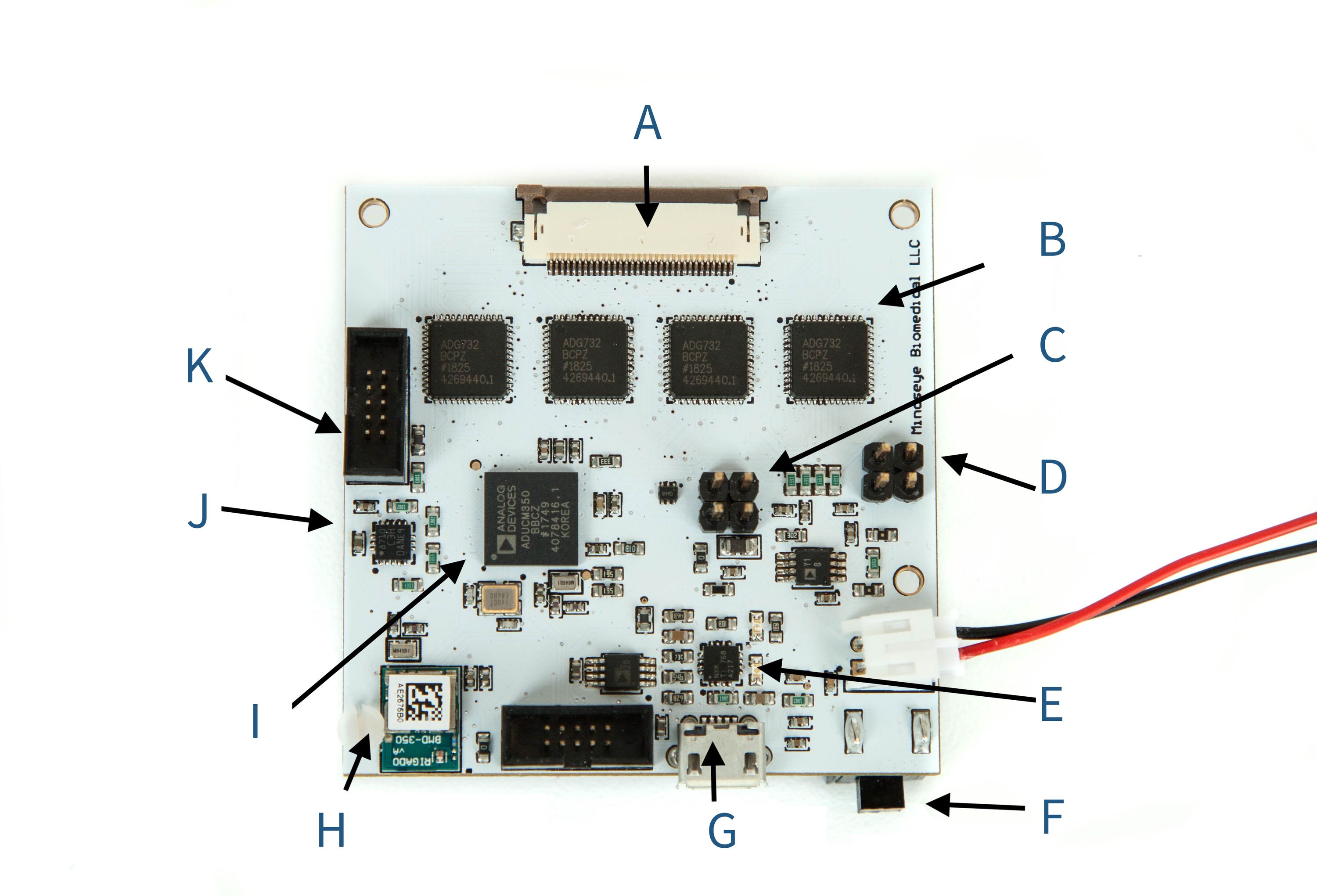

Block Diagram

A. 32 addressable electrodes G. micro USB port (charging and UART)
B. ADG732BCPZ precision multiplexers H. Rigado BMD-350-A-R BLE module
C. IEC safety enable/disable I. ADUCM350 high-precision impedance metering SoC
D. Bioimpedance spectroscopy connectors J. LIS3DH accelerometer for motion mitigation
E. Battery charging circuitry K. SWD programming header
F. On/off switch

Features & Specifications

  • Precise and highly configurable sensor hardware
    • Can be configured to use up to 32 electrodes.
    • Measures at 160,000 samples per second.
    • Each impedance measure is made using differential referencing and 16-bit resolution.
    • Includes automatic temperature calibration to ensure impedance accuracy.
    • Includes an accelerometer for motion mitigation.
  • Built for safety and ease-of-use
    • DC power removal filters meet IEC60601-1 safety specifications.
    • Compatible with a 3.5 V, 850 mAh battery (not included) for improved portability. On-board circuitry allows charging via the supplied USB cable. Up to 12 hours of battery life, depending on the specific use case.
    • Support for Bluetooth Low Energy (BLE) to accommodate wireless data transmission.
  • Flexible open source software
    • Easy to install software supports time series impedance measurements, bio-impedance spectroscopy, and electrical impedance tomography, between 80 Hz and 80 kHz, with up to 32 electrodes.
    • Supports three different types of tomographic reconstruction: Graz Consensus, Gauss-Newton Method, and Back Projection. All three can be run in realtime and can be configured with any number of electrodes (e.g., 8, 16, or 32). You can record for analysis offline, and run in real-time.
    • Hardware includes Serial Wire Debug (SWD) programmers for easy firmware re-programming.
  • Portable design
    • Tiny, portable PCB measures approximately 2” by 2” and comes with a plastic enclosure.
    • Comes with a small, cylindrical ‘phantom’ tank (140 mm diameter, 60 mm height).
    • Comes with a flexible electrodes for imaging things that don’t fit in the phantom.

A Multitude of Uses

Below are a few possible applications of Spectra. Some of them will be addressed in project updates, so please subscribe if you are interested!

Locate tissues and other substances within your body.

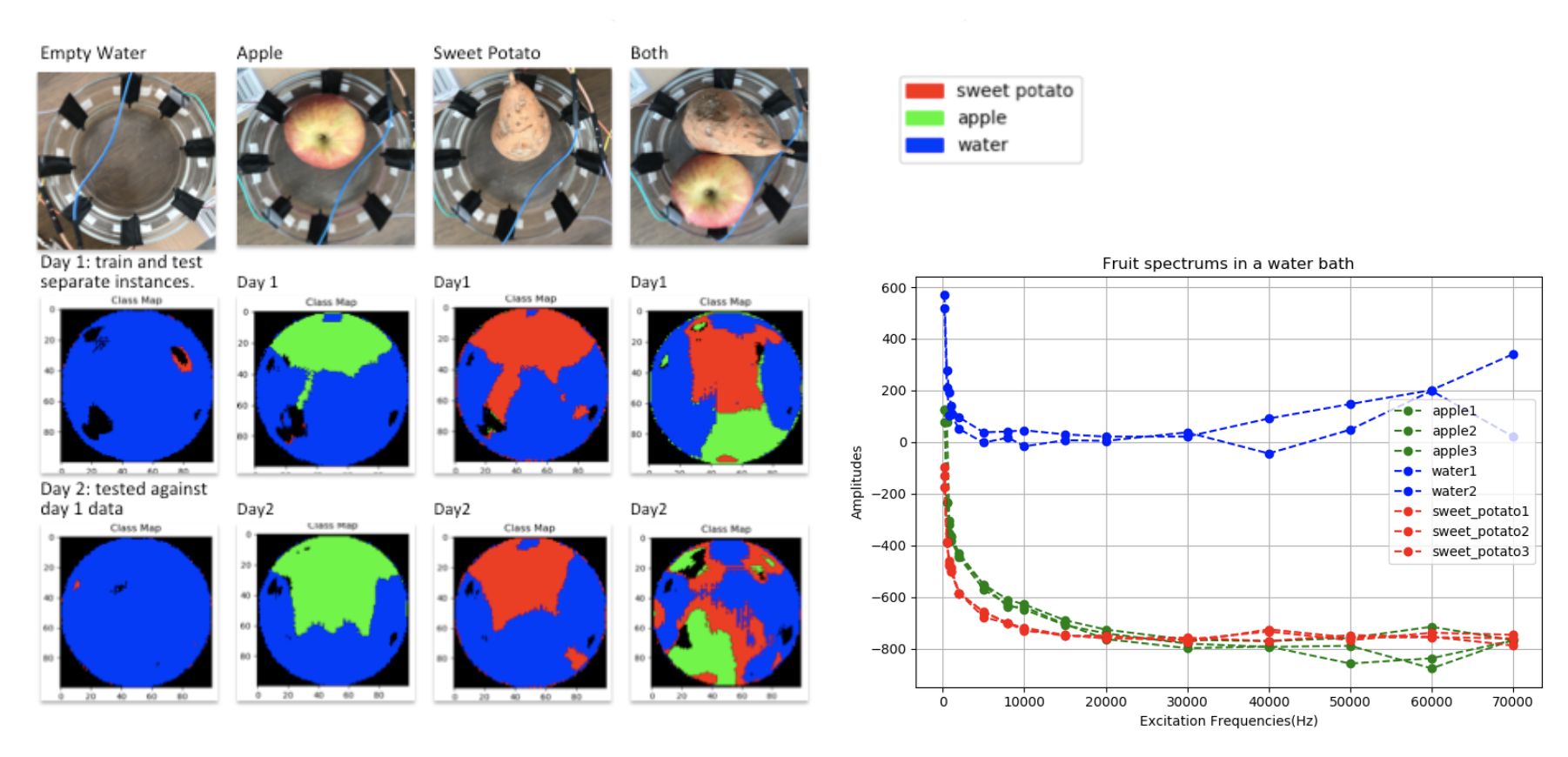

This might include bone, muscle, fat, fluid, a tumor, or air that you have inhaled, to name just a few examples. By running multifrequency EIT to get a spectrum at every pixel, you can monitor your body fat percentage, check for signs of pulmonary edema (fluid in the lungs), or watch as a particular organ – such as your bladder or your stomach – changes over time.

Material identification in space

Time series measurements.

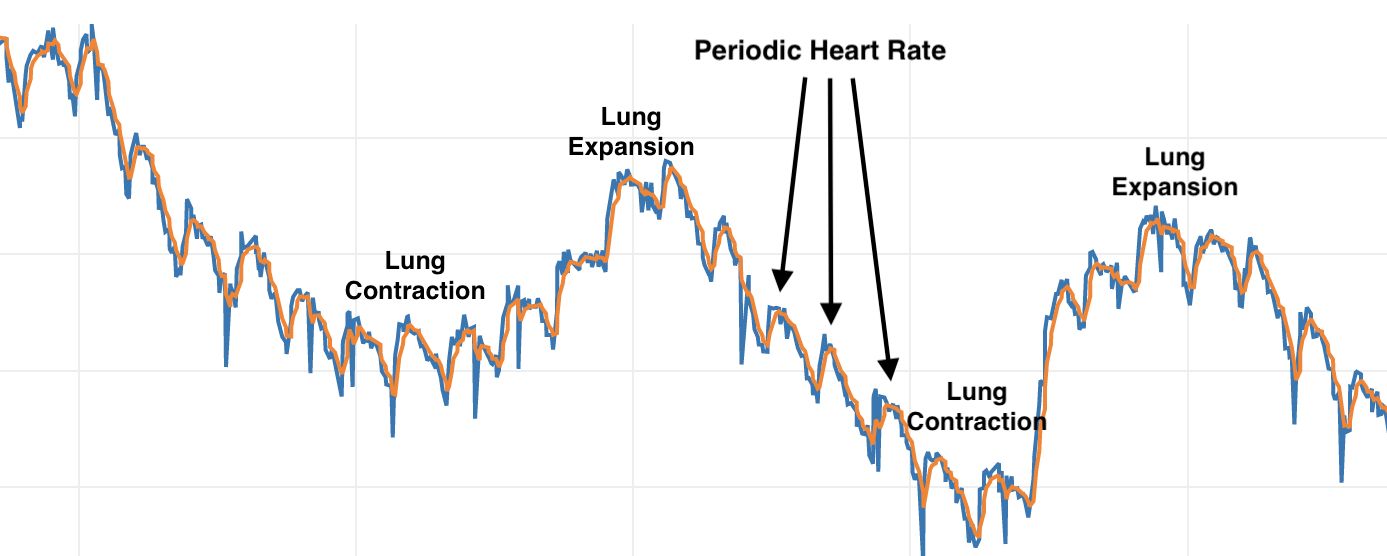

With time series measurements, you can observe things like the expansion and contraction of your lungs.

Time series changes

Analyze other conductive items.

You can attach your Spectra to other conductive items, as well. By imaging a piece of fruit, for example, you can determine whether or not it is ripe!

Other possible uses include:

  • Monitoring the flow of blood through your heart (a process called impedance cardiography).
  • Observing water as it flows, or does not flow, through an opaque pipe. Useful in cold climates!
  • Imaging smaller substances to determine the presence or absence of certain types of cells, such as hemoglobin in a blood sample.
  • New surgical innovations such as determining the depth of anaesthesisa. (We invite all surgeons and neurosurgeons to reach out to us about collaborating!)
  • Our current algorithms depend on some limiting assumptions. If you are interested in the physics of image reconstruction algorithms, let’s develop a better one so we can all obtain higher-resolution spatial reconstructions!

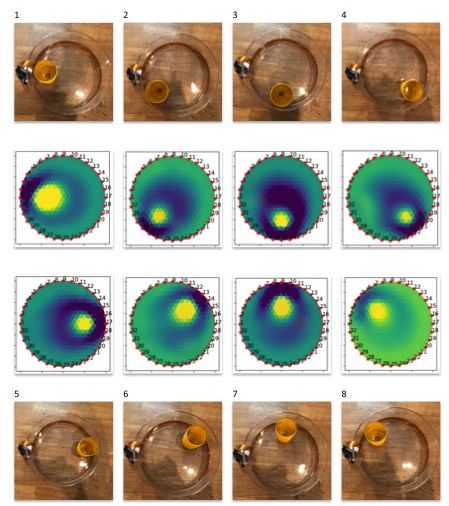

This shows how the position of a cup can be reconstructed with only electrical signals

Comparison Table

Spectra (EIT) CATSCAN MRI Ultrasound EEG
Cost Cheap $2.5M $3M $115K $40K for BioSemi Medical Grade System
Open Source? YES NO NO NO NO (except OpenBCI)
Spatial Resolution Proportional to electrode spacing 1-2 mm Mode 1: 0.5 mm^2, Mode 2: 1-2 mm Low, grainy due to scattering Very Low
Contrast Resolution Full dielectric spectrums available Low (X-rays are not attenuated by soft tissue) High Medium - good with soft tissue difference N/A
Time Resolution Best research at 2 ms 270 ms Mode 1: 4 min 16 sec, Mode 2: 40 ms Good up to 100 Hz but can’t be used continuously High
Health Risk None High, ionizing radiation, not suitable for babies/children, increases risk of cancer in adults None known Low - heating of tissue None
Size and Maintenance Very Low HIGH Big! Need a helium quenching chamber Low Low

Manufacturing Plan

The main board for Spectra is on its third and final revision, and has already been delivered to some customers. The main boards are manufactured by PCBWay. We consider this core aspect of our design to be production-ready.

The plastic enclosure will be manufactured in southern China. We’ve manufactured several consumer electronics devices prior to this one, and we have good relationships with many qualified manufacturers.

We will determine the composition of the final supply chain based upon the volume of orders generated by the campaign. We have designed or selected sub-components that have multiple options for fulfillment, which gives us the flexibility to respond efficiently regardless of that volume.

Shipping & Fulfillment

  • Orders will ship from Crowd Supply’s warehouse in the US.
  • Domestic orders ship for free. Due to the complexities and costs of international shipping, an international surcharge will be assessed at checkout.
  • For more information, please read this page about ordering, paying, and shipping.

Risks & Challenges

This is a complex device. Although it comes with a simple installer and can perform all functions in realtime, not all of Spectra’s potential uses will be supported when it ships, and not all bugs will be completely addressed for all operating systems. We expect to iron out the remaining issues as our community of developers grows and as more people contribute to the code base. We’d love your help!

Be gentle with your Spectra! Avoid spilling liquids on the enclosure that contains the PCB itself, as it was not designed to be waterproof. Nor has it gone through drop testing, so please do not throw it or drop it from a significant height. Follow general electrical safety guidelines when using your Spectra. All usage is at the buyers own risk. Finally, this is an experimental device and is not intended for medical diagnosis.

Support & Documentation

All Spectra documentation is hosted at https://openeit.github.io/.


Credits

Mindseye Biomedical

Mindseye Biomedical creates new tools in non-invasive biomedical imaging and neuroscience and offers engineering consulting services. Working toward the democratization of biomedical imaging through an open source ideology.


Jean Rintoul
