Inkplate 6COLOR

Versatile, easy-to-use, Wi-Fi-enabled 5.8" e-paper COLOR display

$37,422 raised

of $9,900 goal

378% Funded! Order Below

Funding ended on Mar 17, 2022 at 04:59 PM PDT.

Recent Updates

You'll be notified about news and stock updates for this project.

Continuing the glory of the Inkplate series, we present you the newest board - Inkplate 6COLOR - an incredibly simple to use e-paper display, now with colorful e-paper display. Powerful, Wi-Fi-enabled ESP32 microcontroller makes this 5.8" color e-paper display incredibly easy to control. Just plug in a USB cable, open Arduino IDE (or MicroPython), and change the contents of the screen with a few lines of code! Thanks to its low-power mode, you can run it for months, or even years, on a single battery. Our Inkplate series is everything you ever needed from an e-paper display, in a single ecosystem.

Hand holding an Inkplate 6COLOR

Making Complicated Technology Simple

Let’s face it, other e-paper displays are a hassle to work with. For one thing, they usually require additional hardware—breakout boards for connectors and cables, or external microcontrollers. And their documentation is often pretty rough, with few examples and little or no sample code. You can make them work, sure, but it takes a lot of effort, and most of us just don’t have the time and resources to go that extra mile.

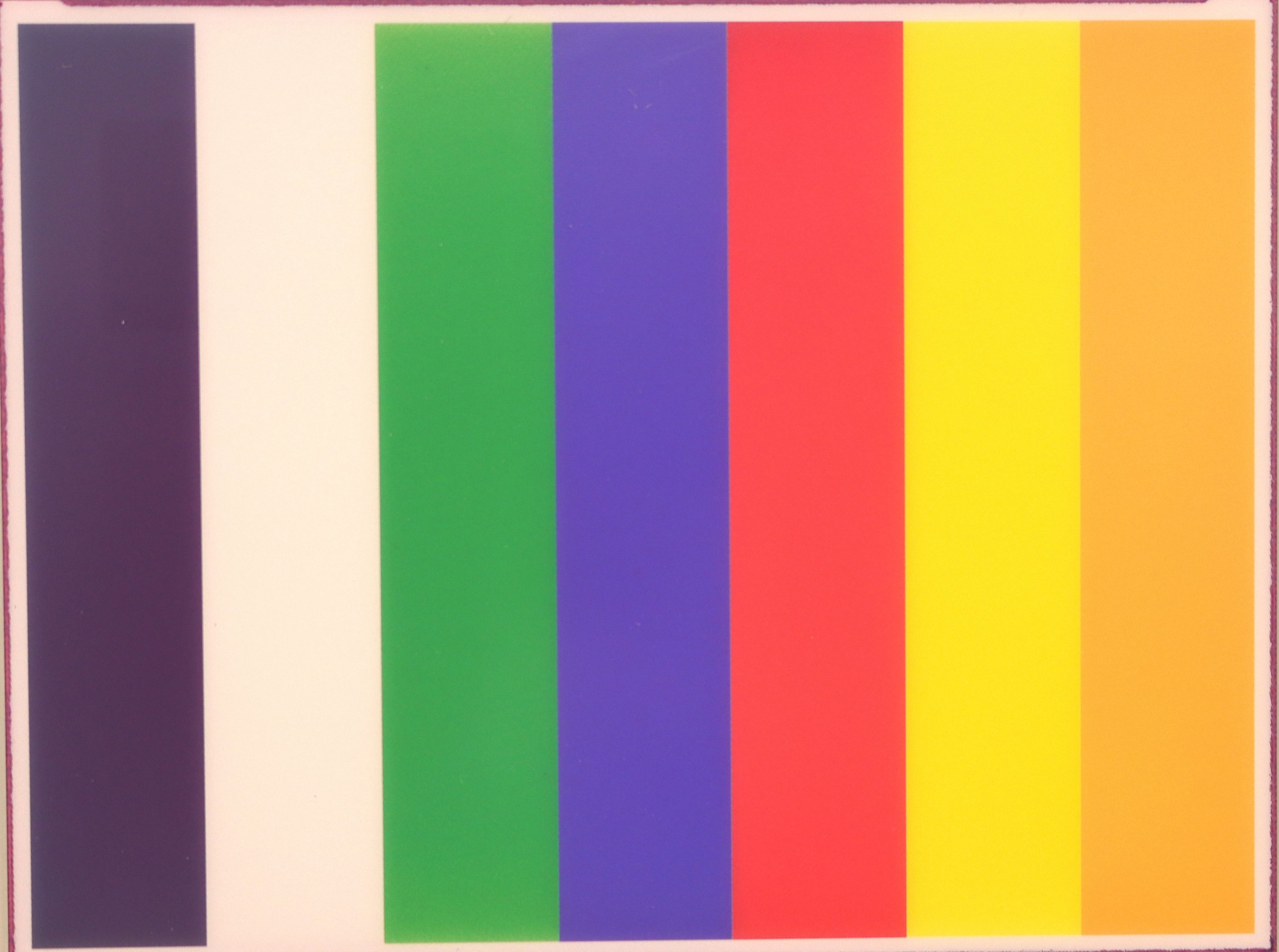

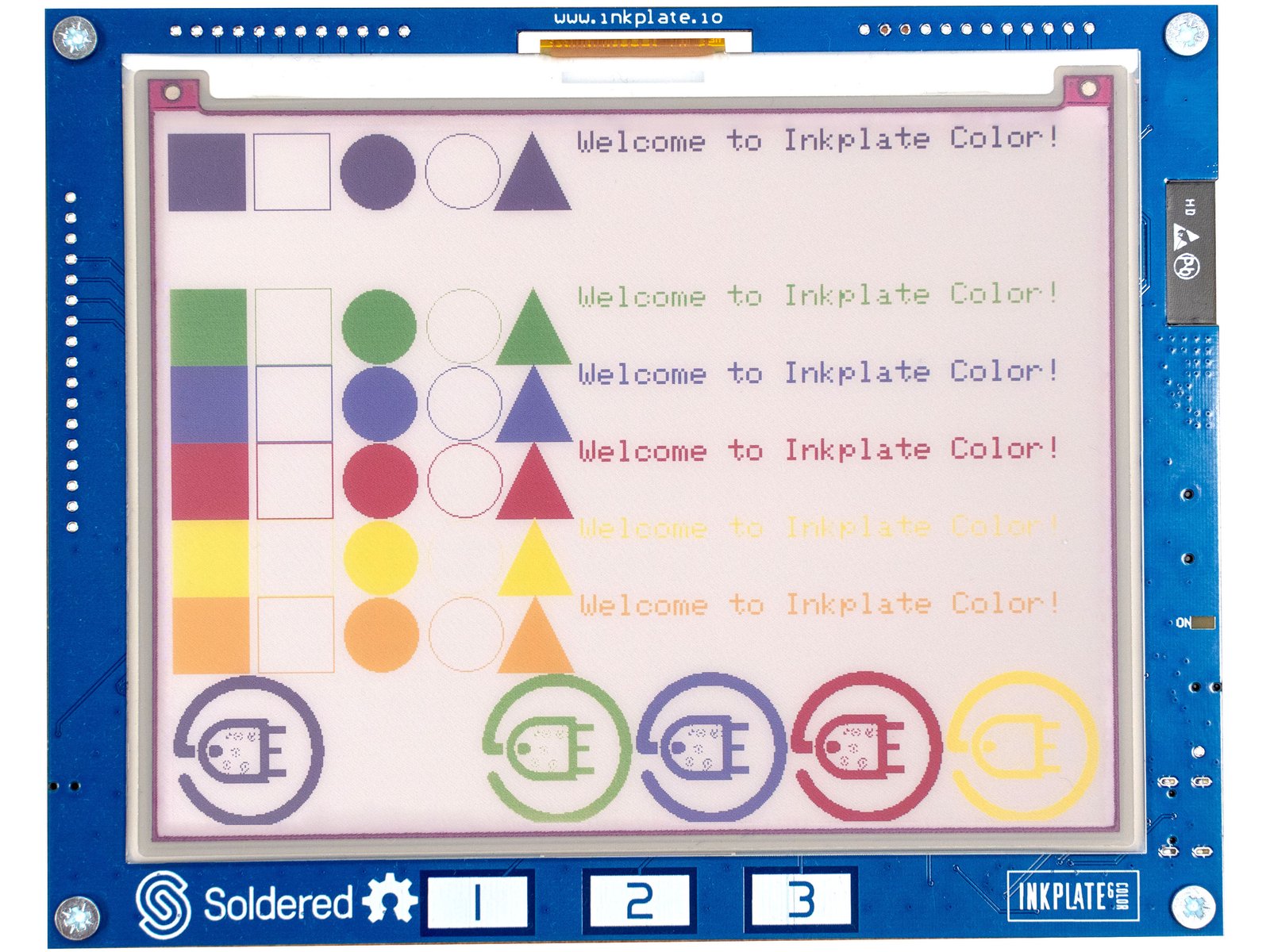

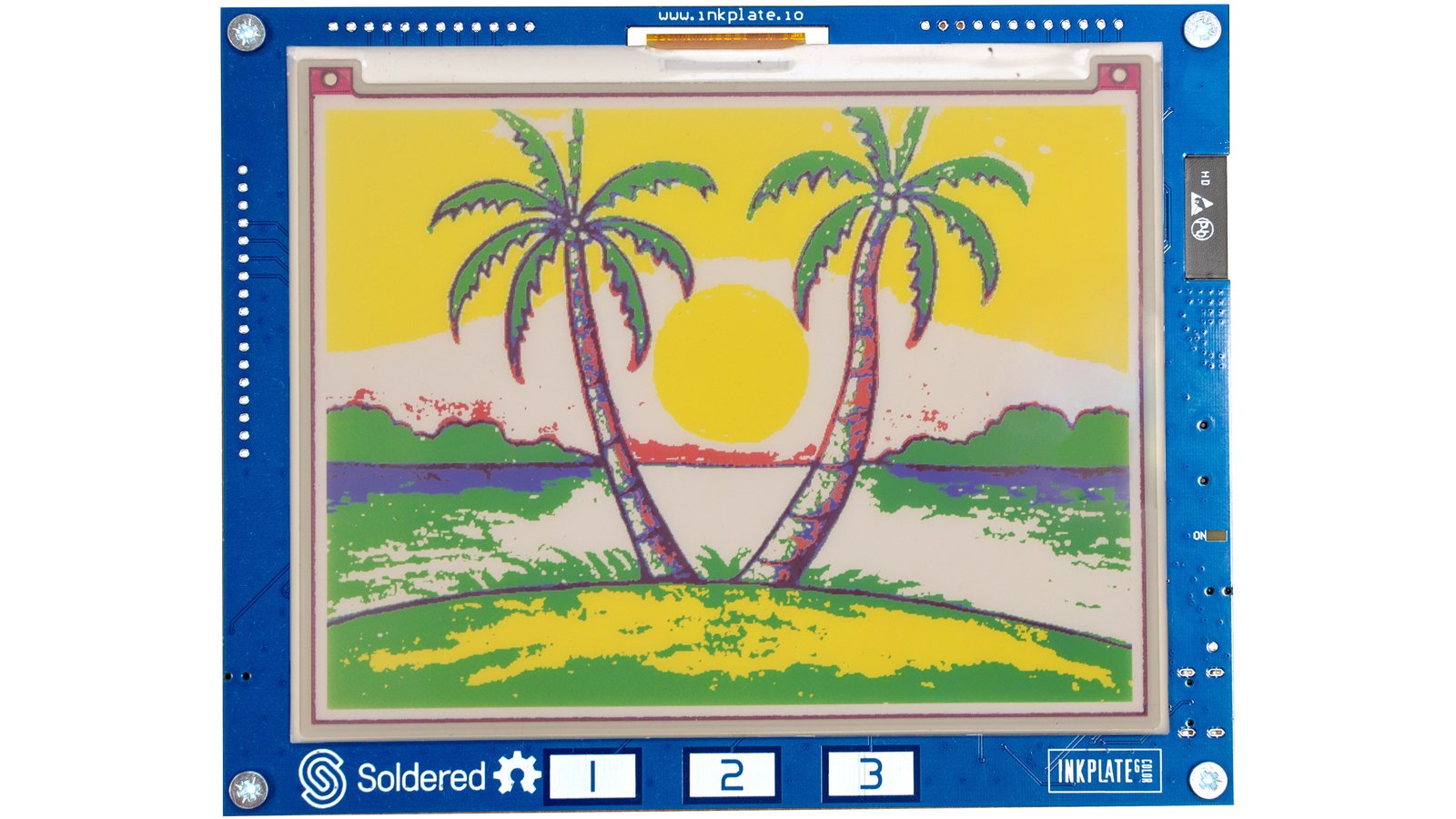

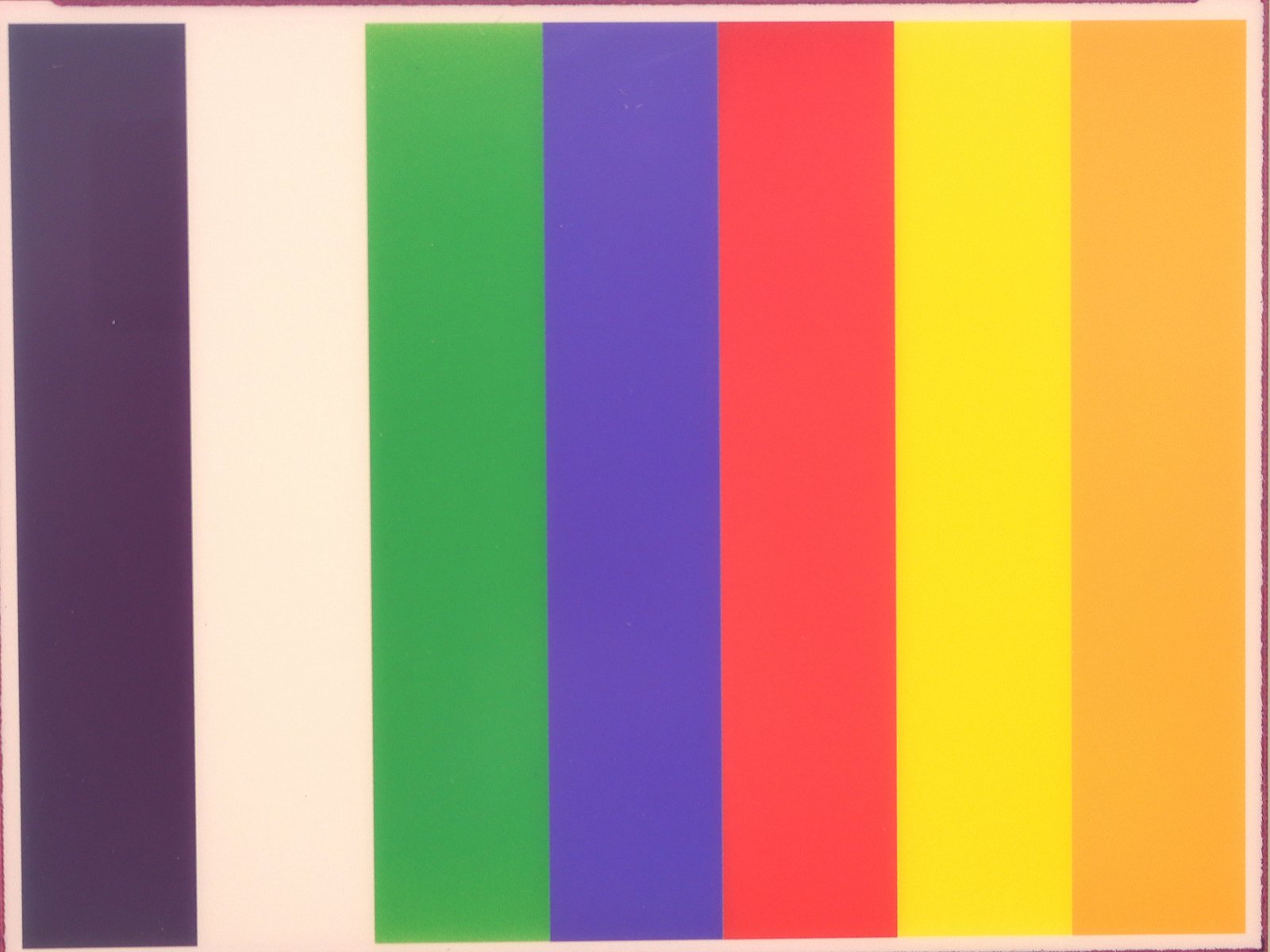

Inkplate 6COLOR displaying color bars

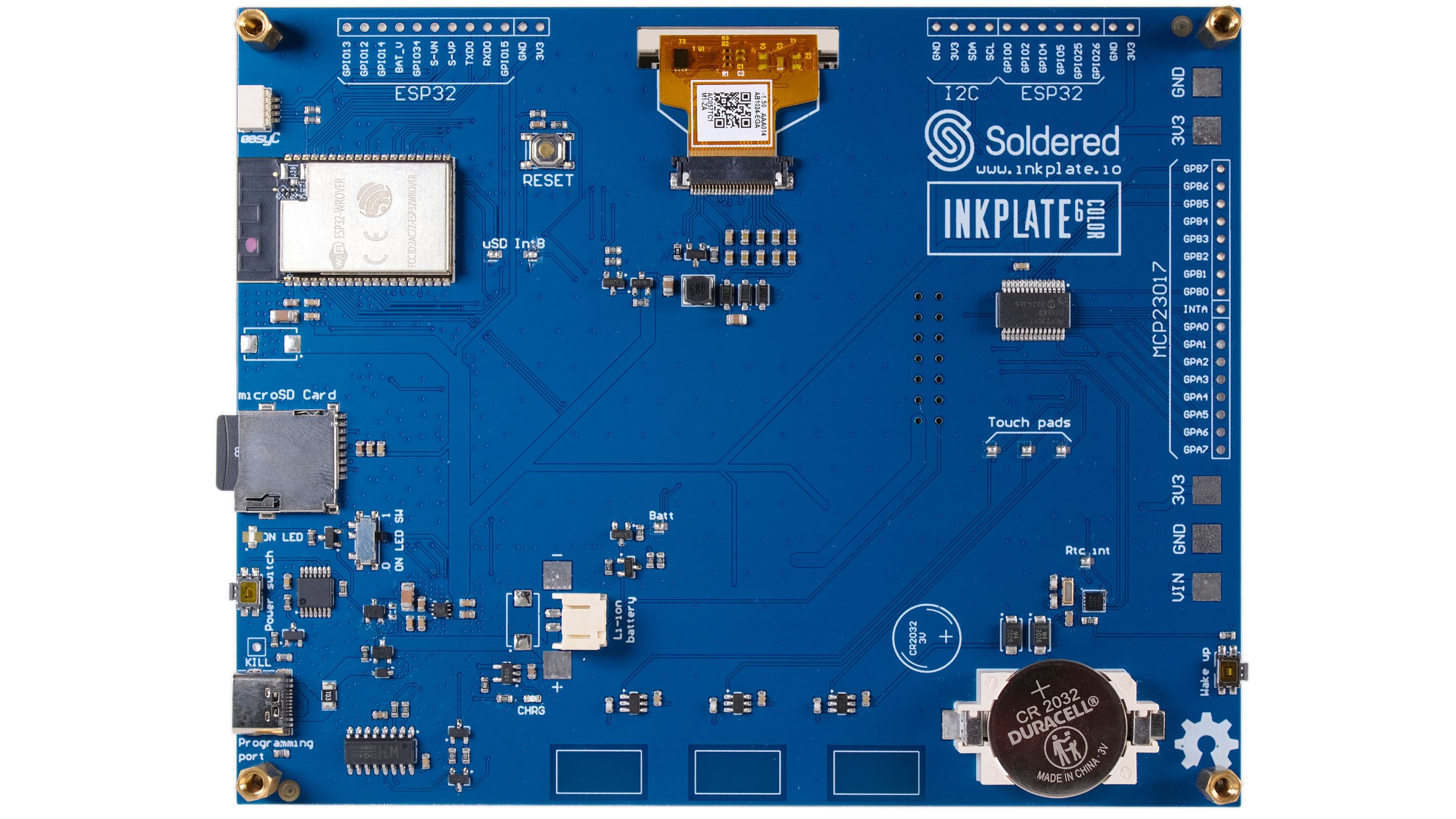

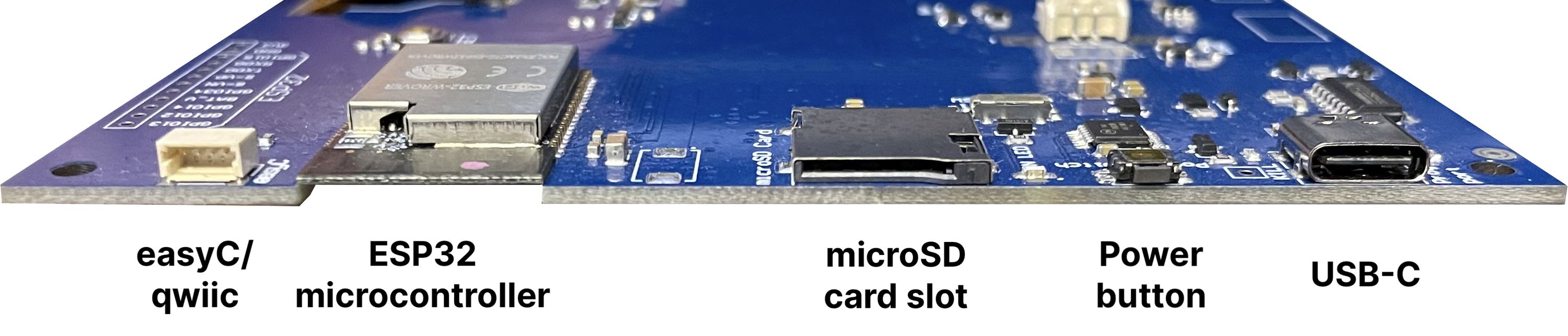

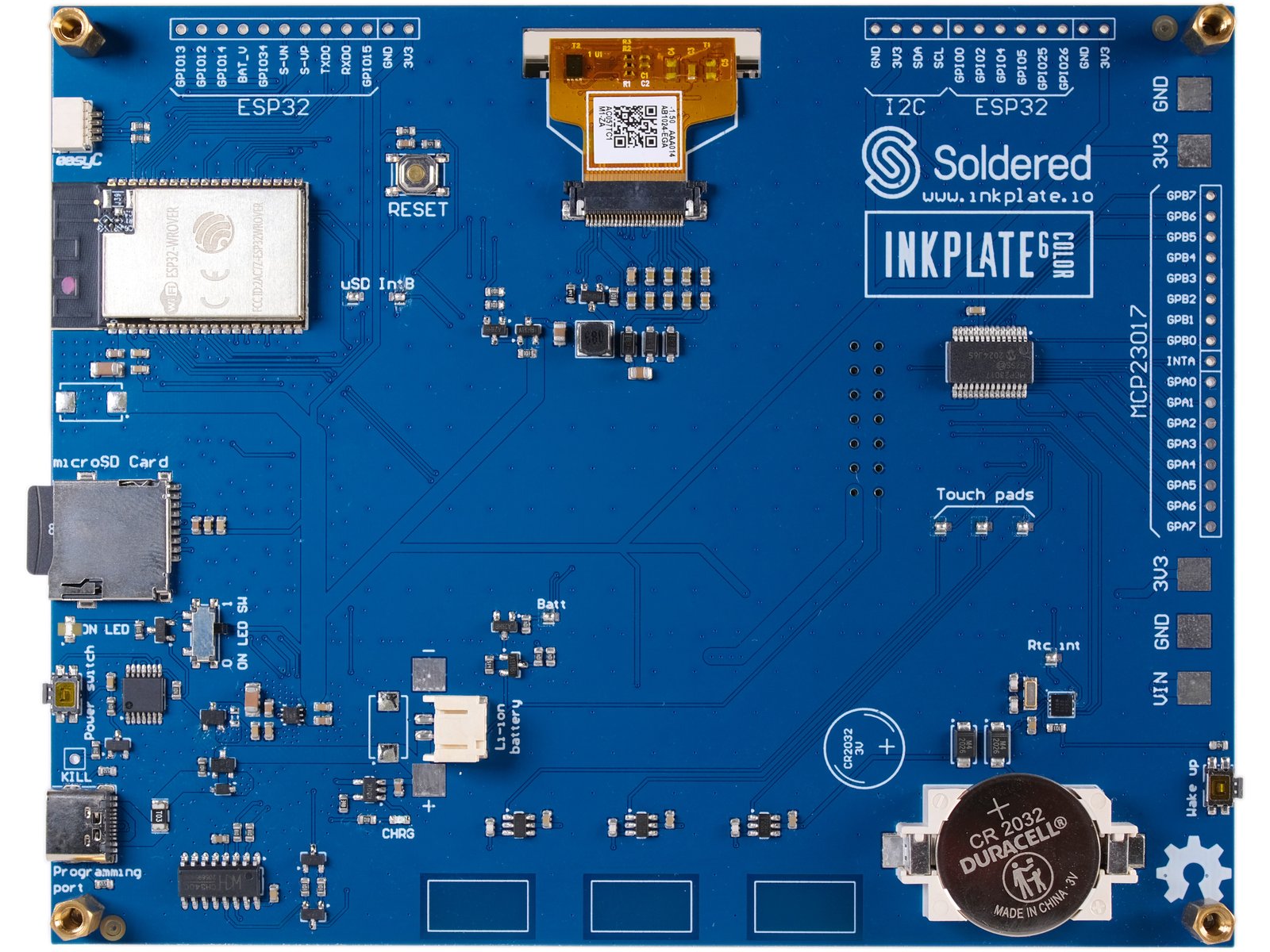

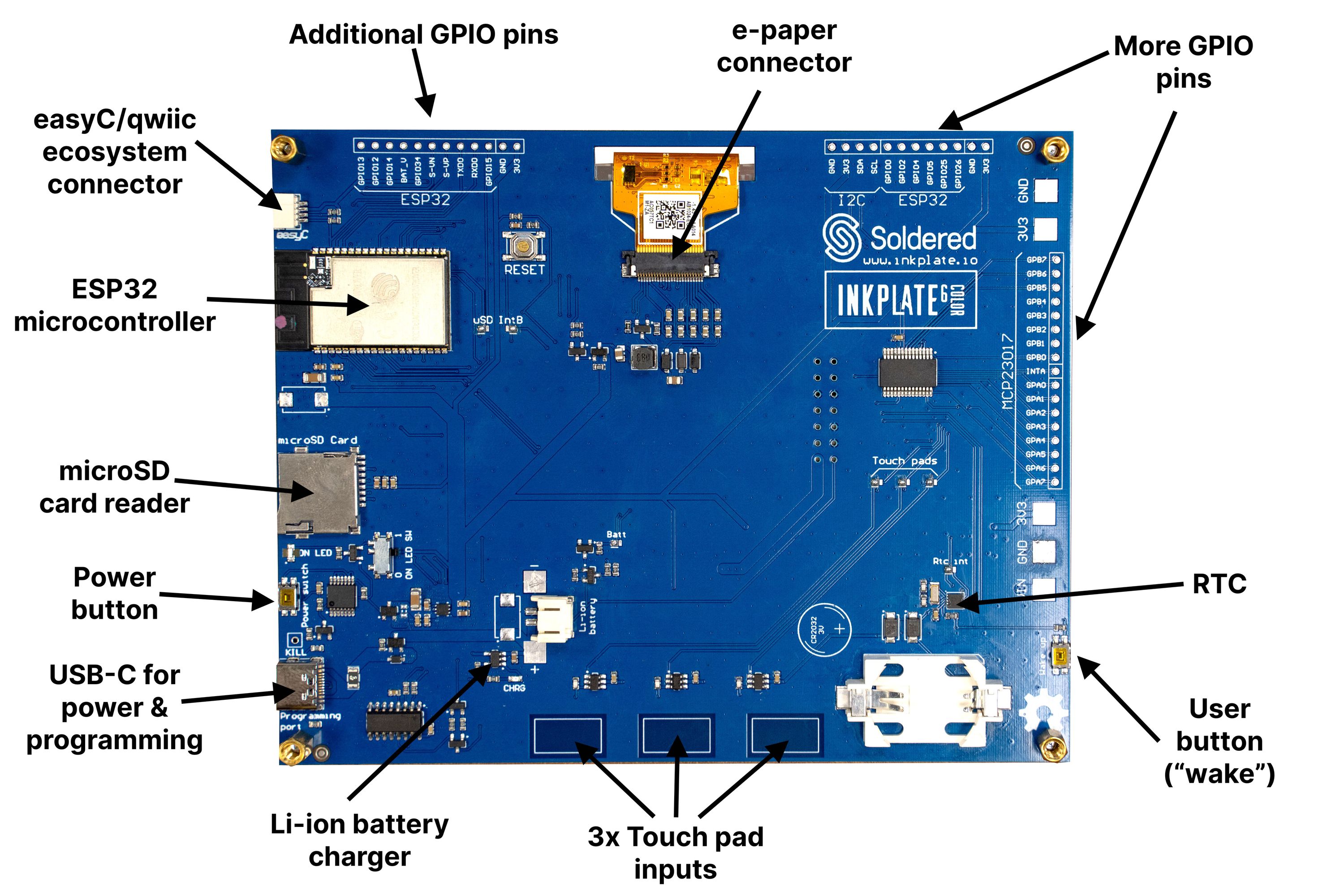

This is where the Inkplate comes in. Designed with simplicity in mind, it addresses all of the challenges that e-paper brings with it. Let’s start with hardware: everything is plug-and-play; just connect a USB Type-C cable, press the power button, and you’re ready to go. Inkplate boards contain all of the bits and pieces you need to get started, including a Wi-Fi microcontroller, microSD slot, extra input/output pins, Real Time Clock (RTC), Li-ion battery charger, and more. As for the screen, Inkplate 6COLOR has a slower refresh time compared to other Inkplate boards, but it compensates for that with a beautiful multicolor screen. You can show a total of seven different colors or use built-in dithering algorithms for even more realistic colors renderings on the screen.

Inkplate has you covered on the software side, as well. If you’re the Arduino type, you’ll have text on your screen in less than five minutes. Install the board definition, download the library, and open one of the many sample applications. Customizing those samples is about as easy as it gets. Using a library based on the Adafruit GFX graphics library, you can add text, images, and other graphical objects to the screen with just a few lines of code. The full documentation is here to help you finish your projects. MicroPython module and sample code will be provided as well.

In fact, our obsession with simplicity goes beyond the hardware and the software. Want to make your Inkplate look stylish and keep it safe at the same time? We’ll save you some time (and some filament) by pre-installing your board into a custom, 3D-printed enclosure. Tired of having to complete the checkout process to figure out how much shipping will cost? Inkplate 6COLOR is available with free US shipping and affordable worldwide shipping.

E-Paper Looks Like Magic

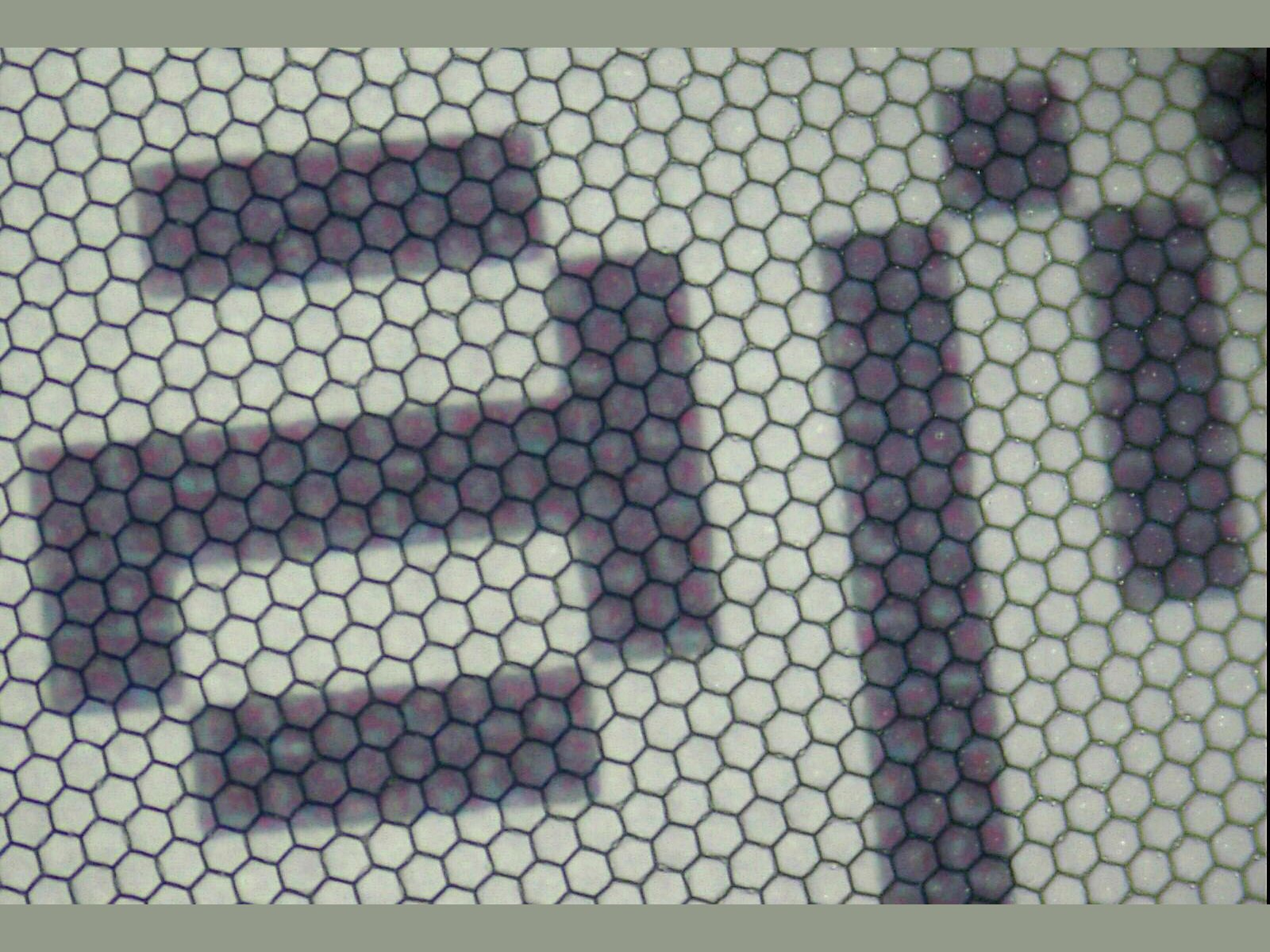

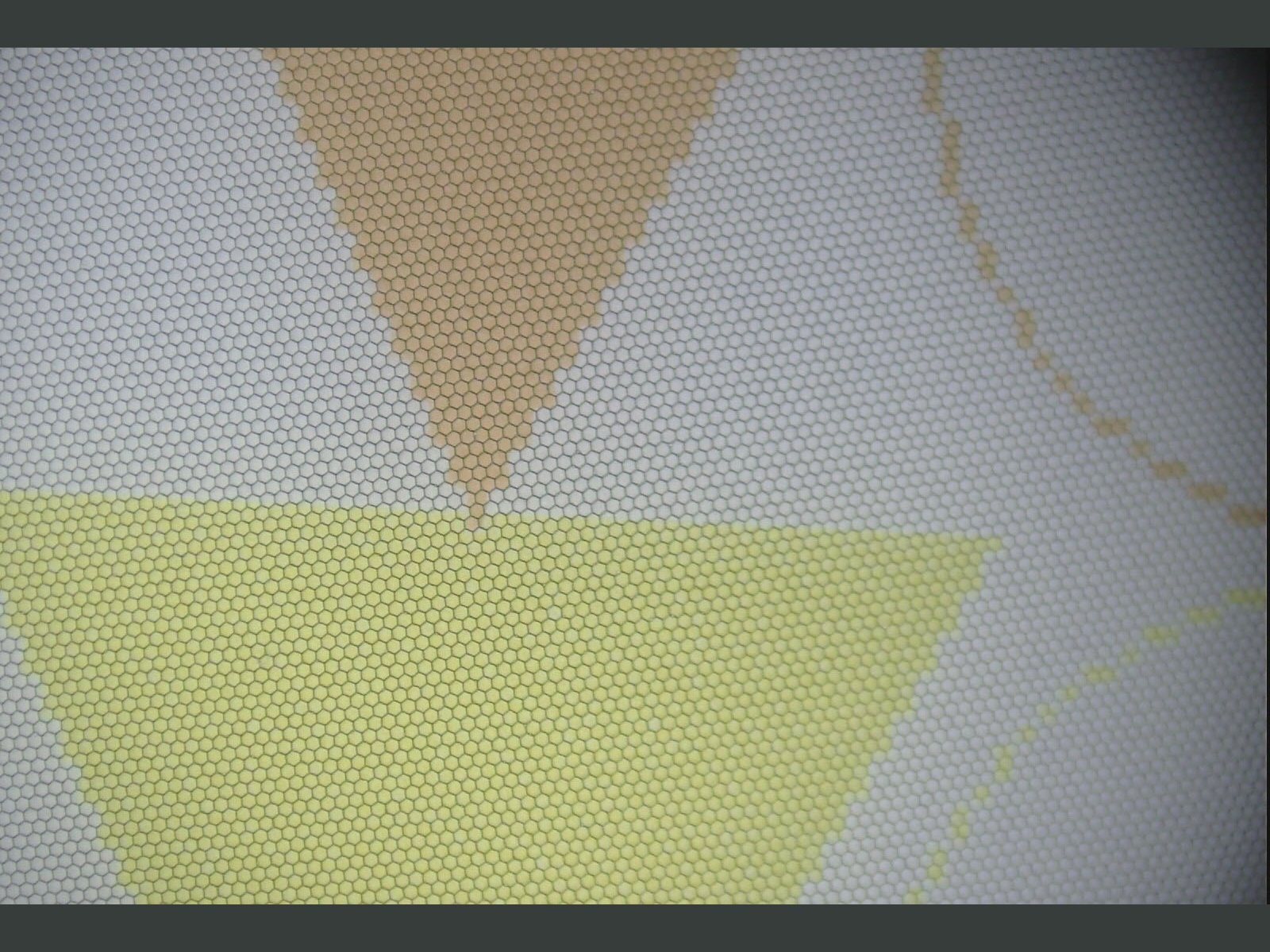

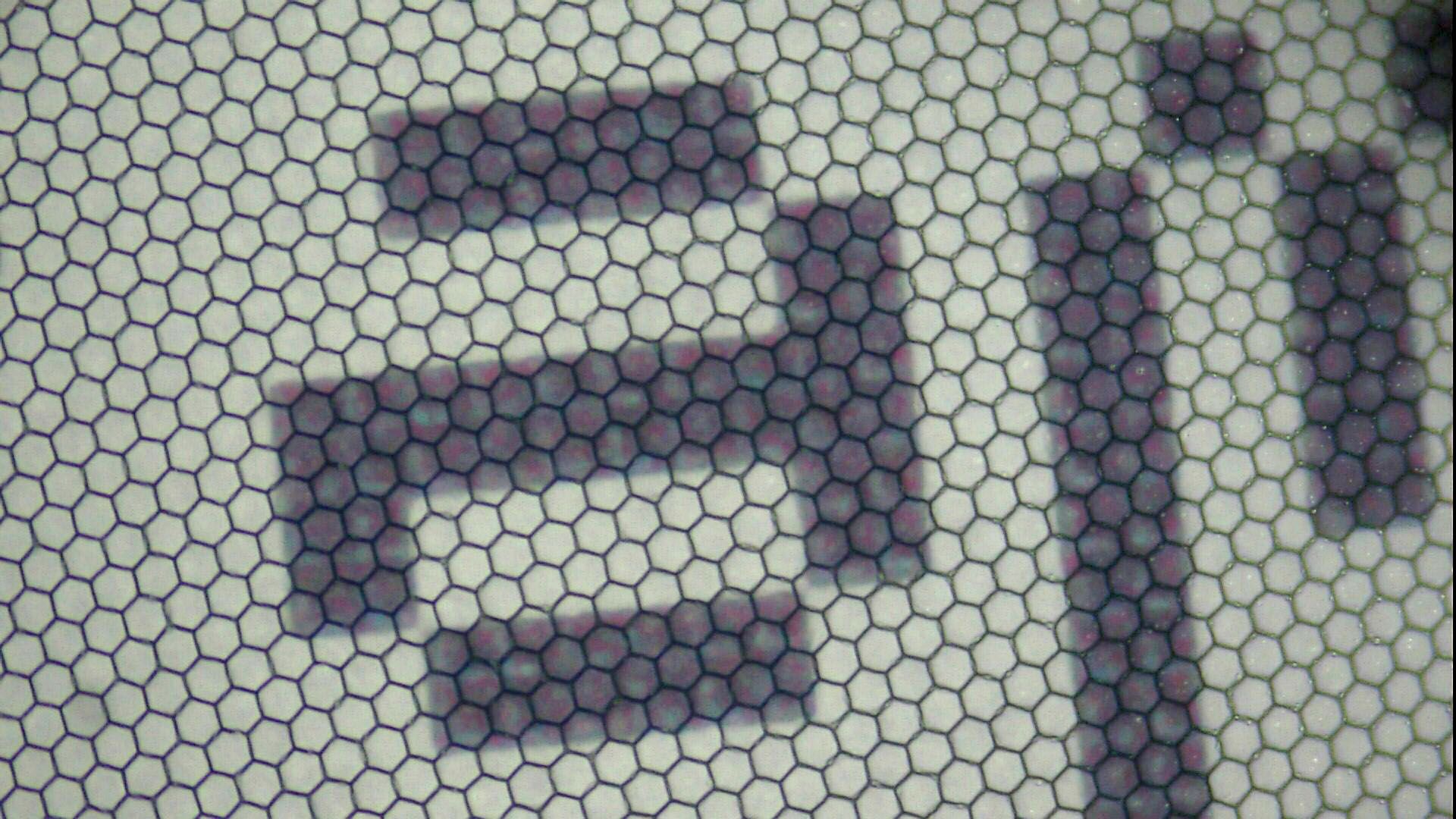

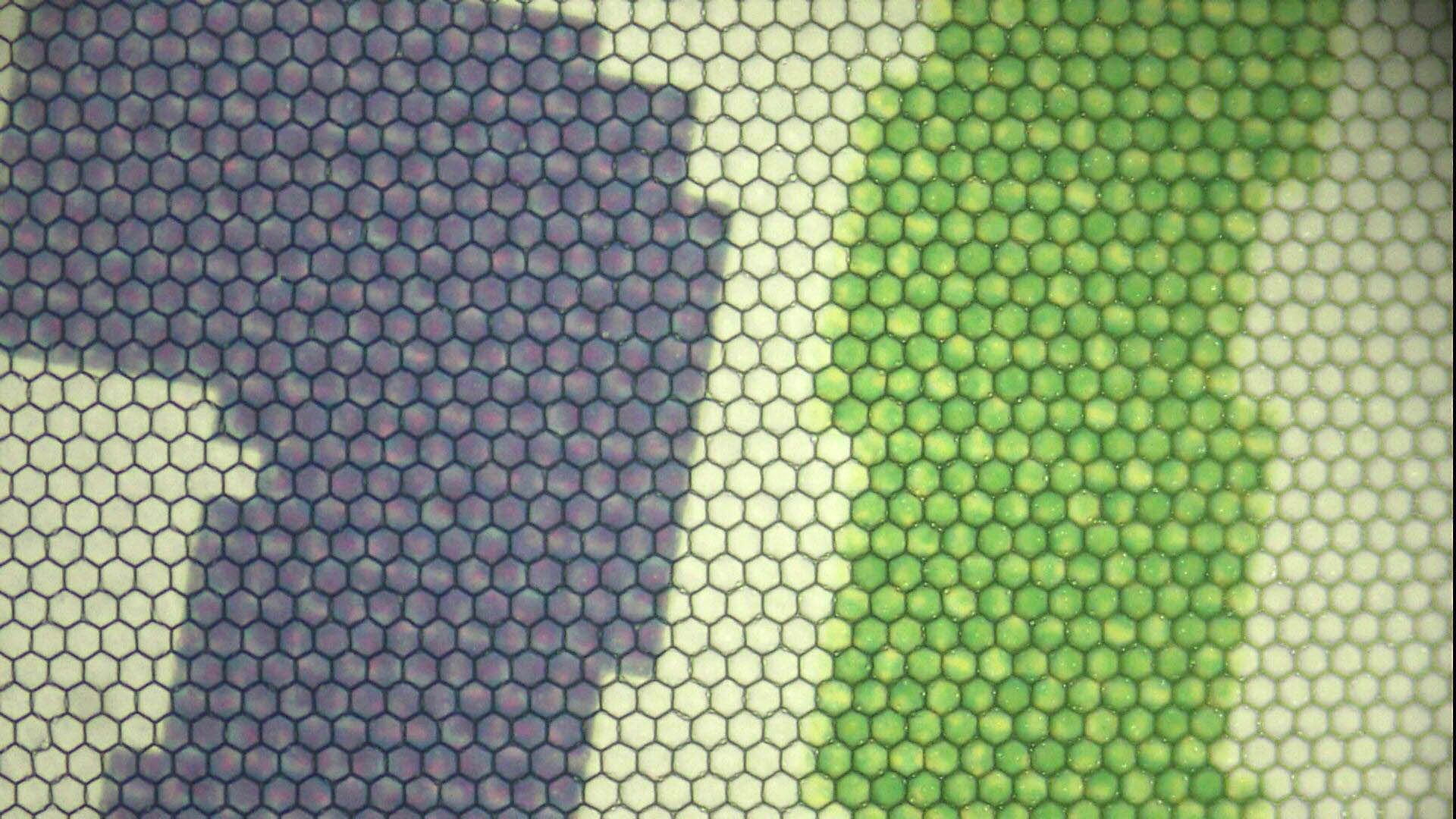

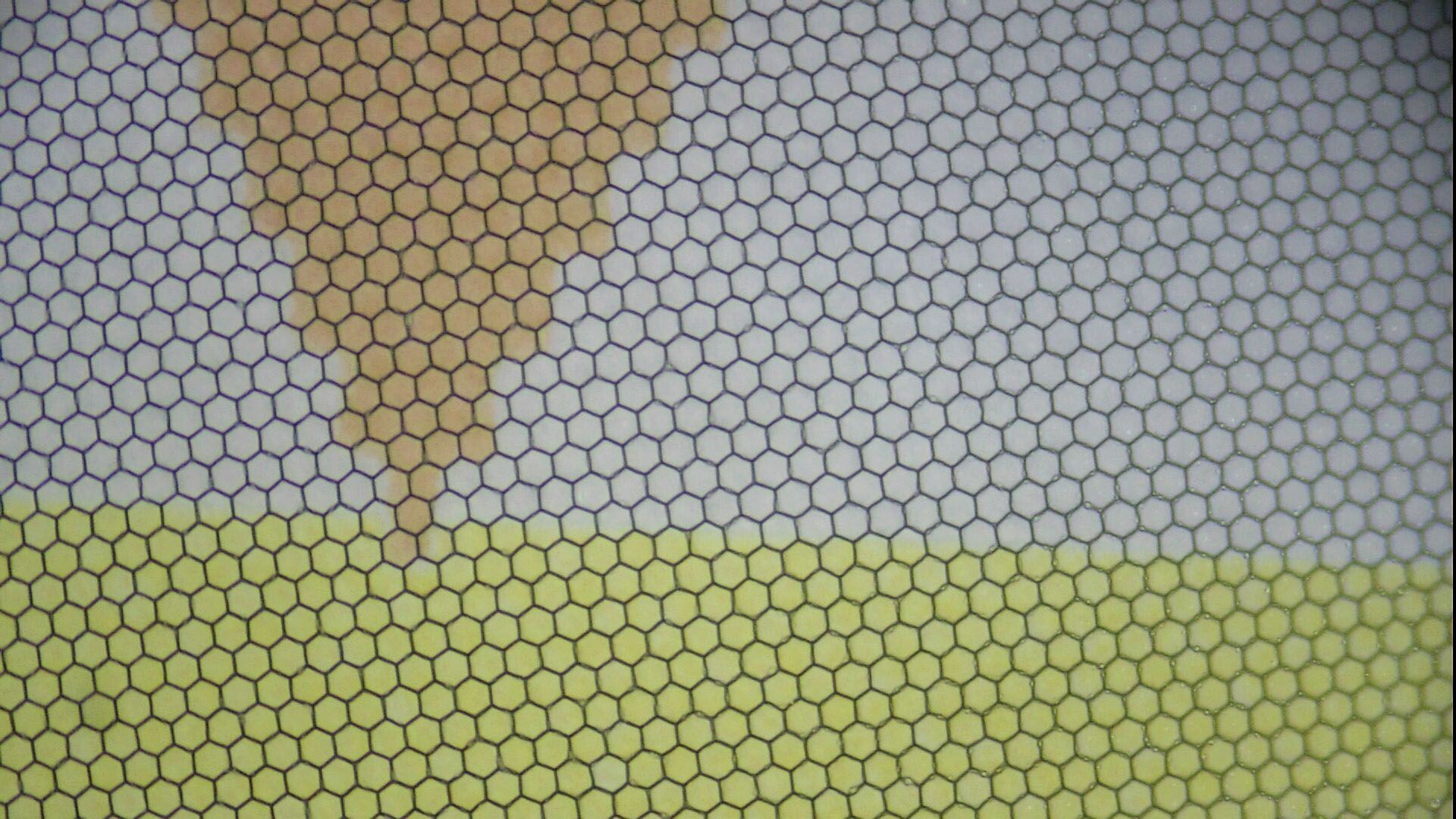

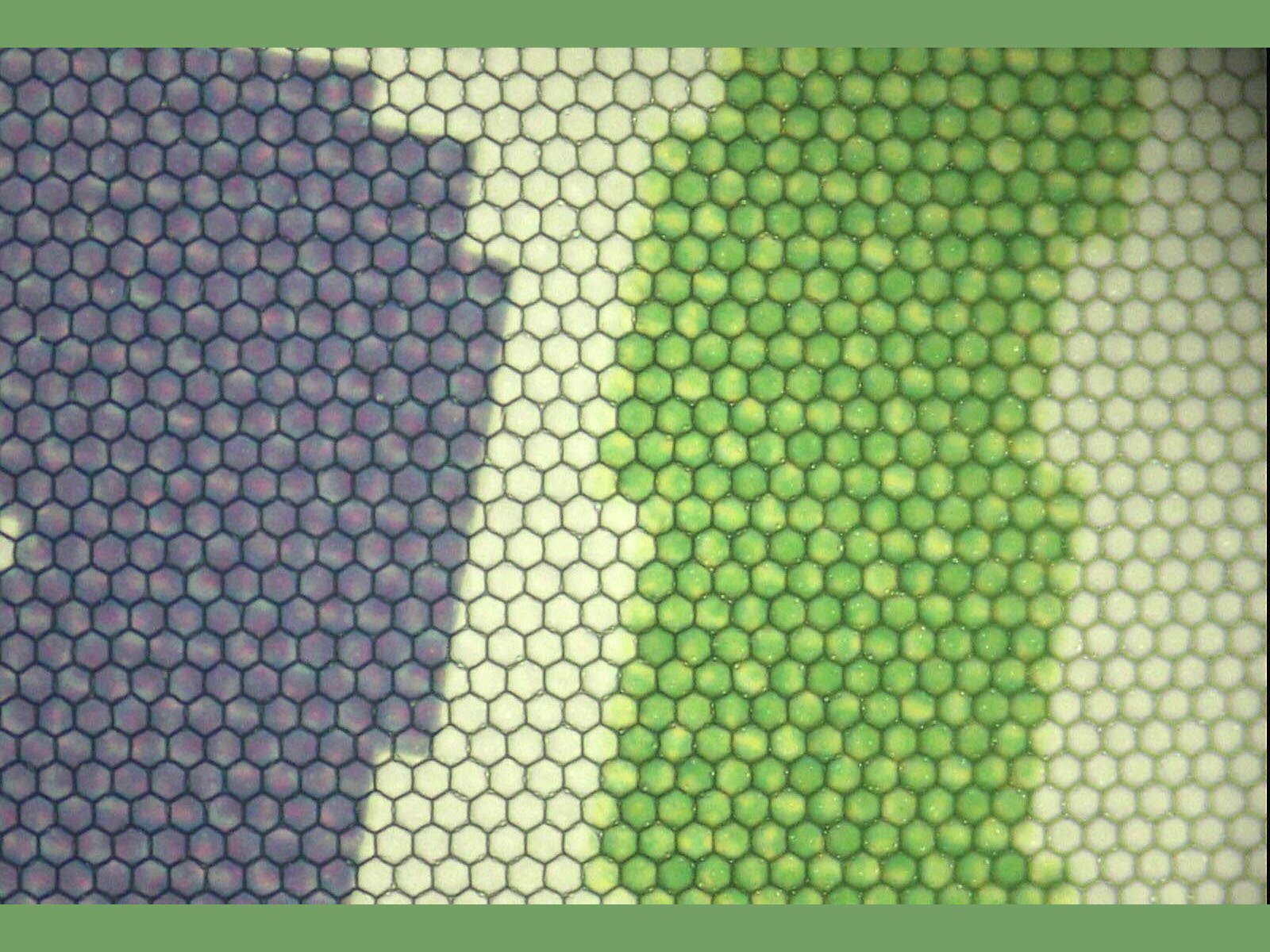

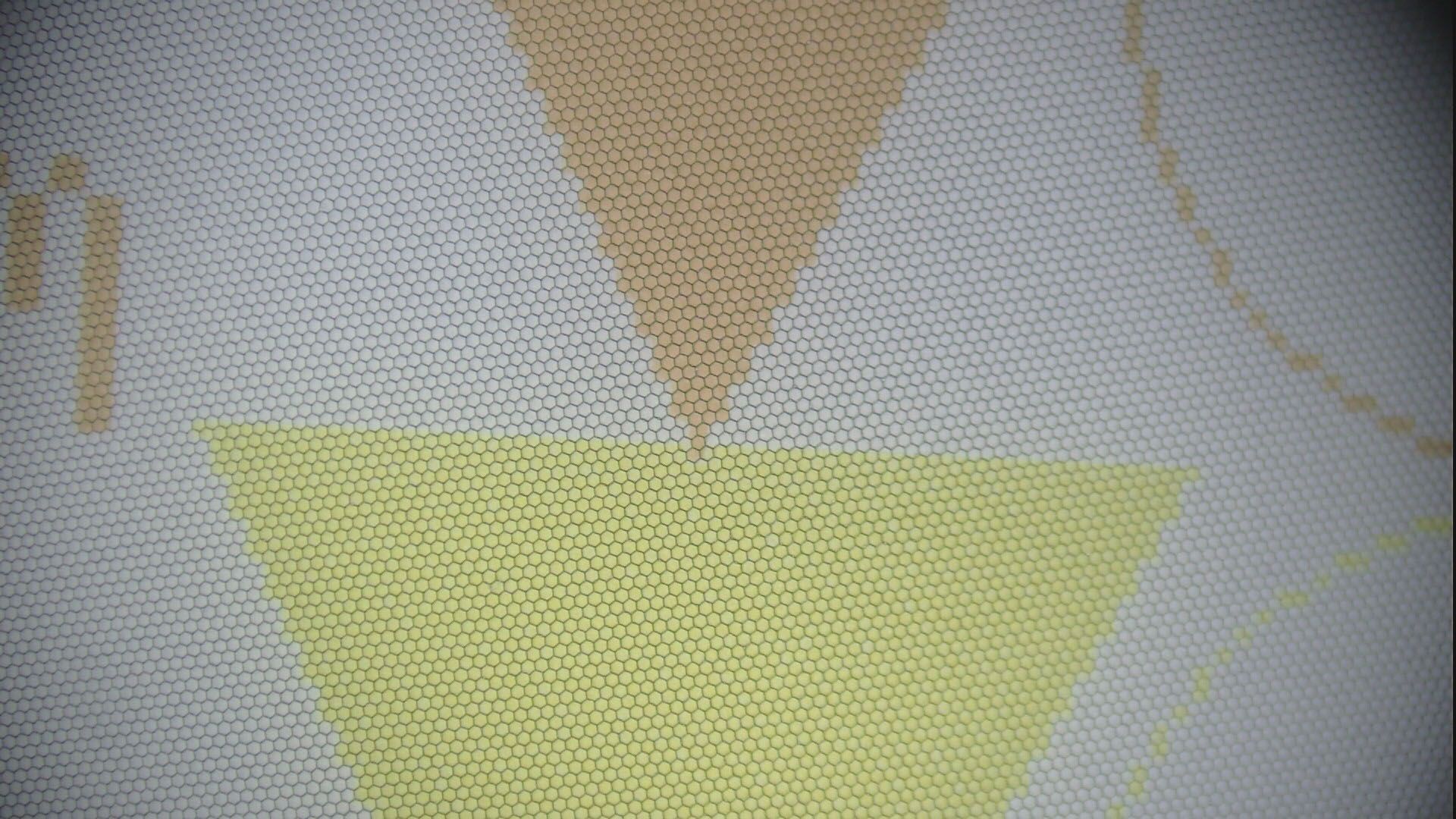

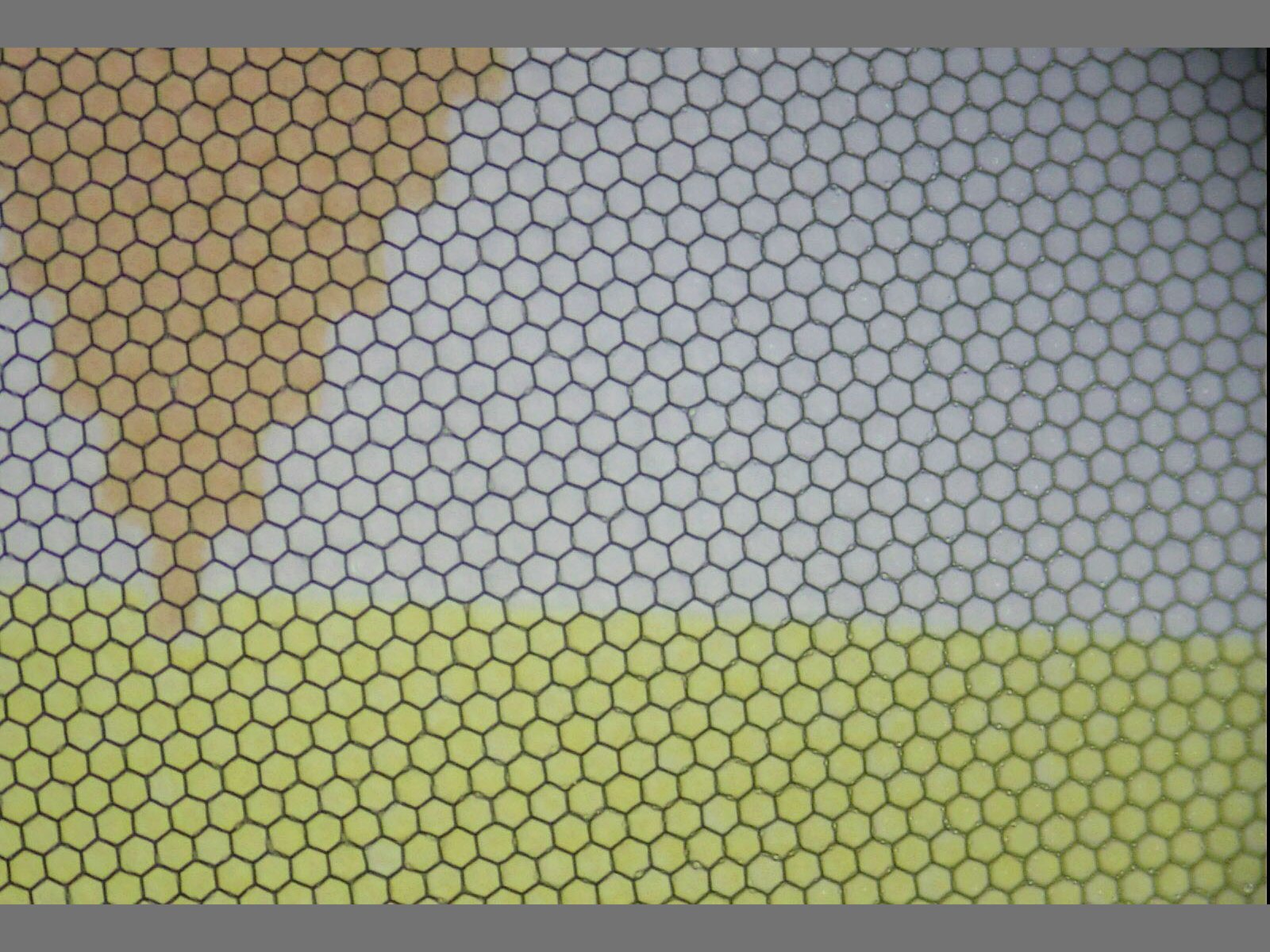

There’s just something about e-paper displays. We find e-paper fascinating for a number of reasons, but let’s start with some facts: it just looks brilliant, uses power only when refreshing, and it has no glare. Now, after being so used to black & white e-paper displays on e-book readers, let us surprise you with the actual color pixels. The AC057TC1 e-paper screen from E-Ink Corporation packs seven color pixels for each physical pixel on the screen, and by dithering them, you can show real masterpieces on its screen.

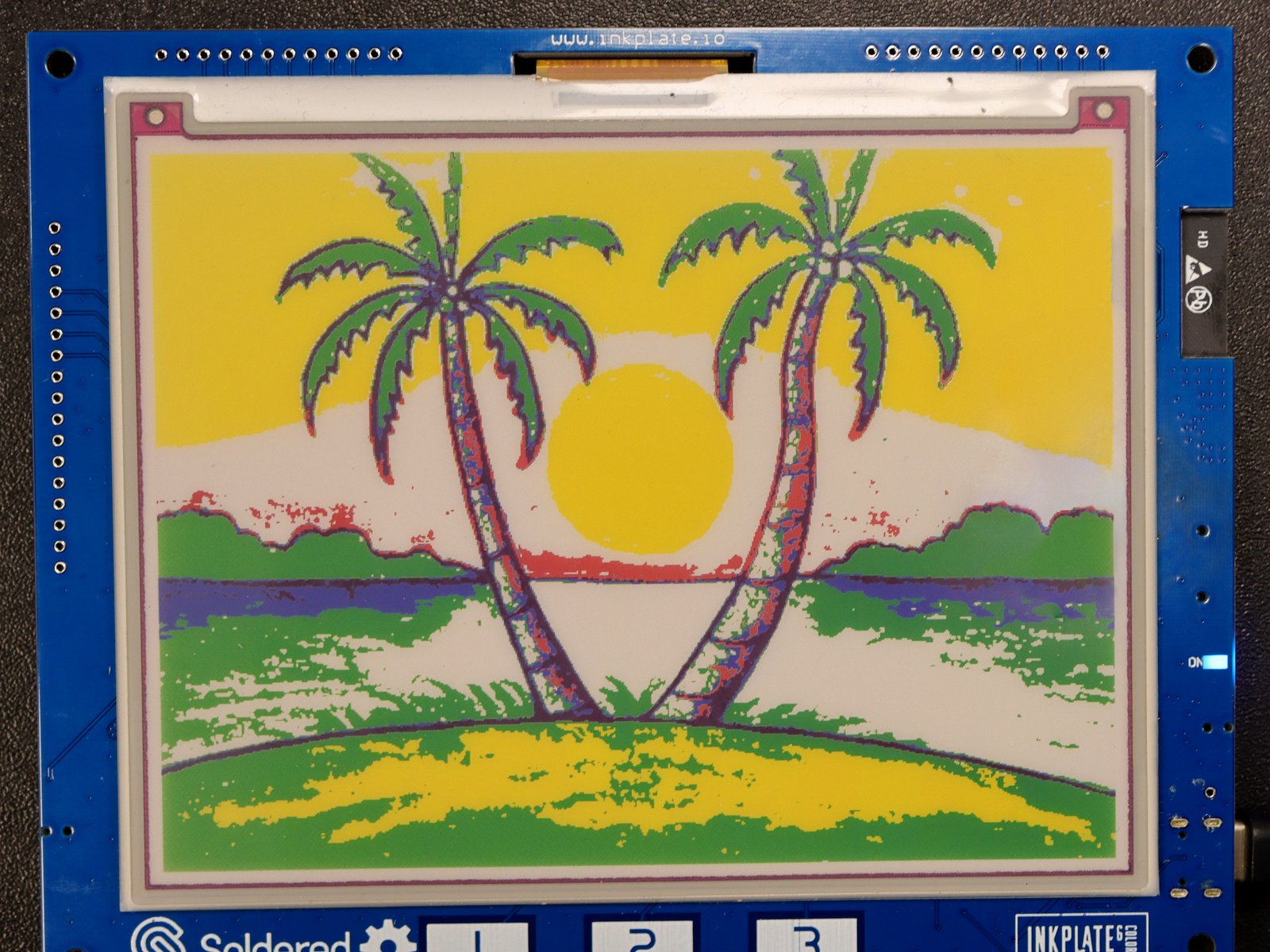

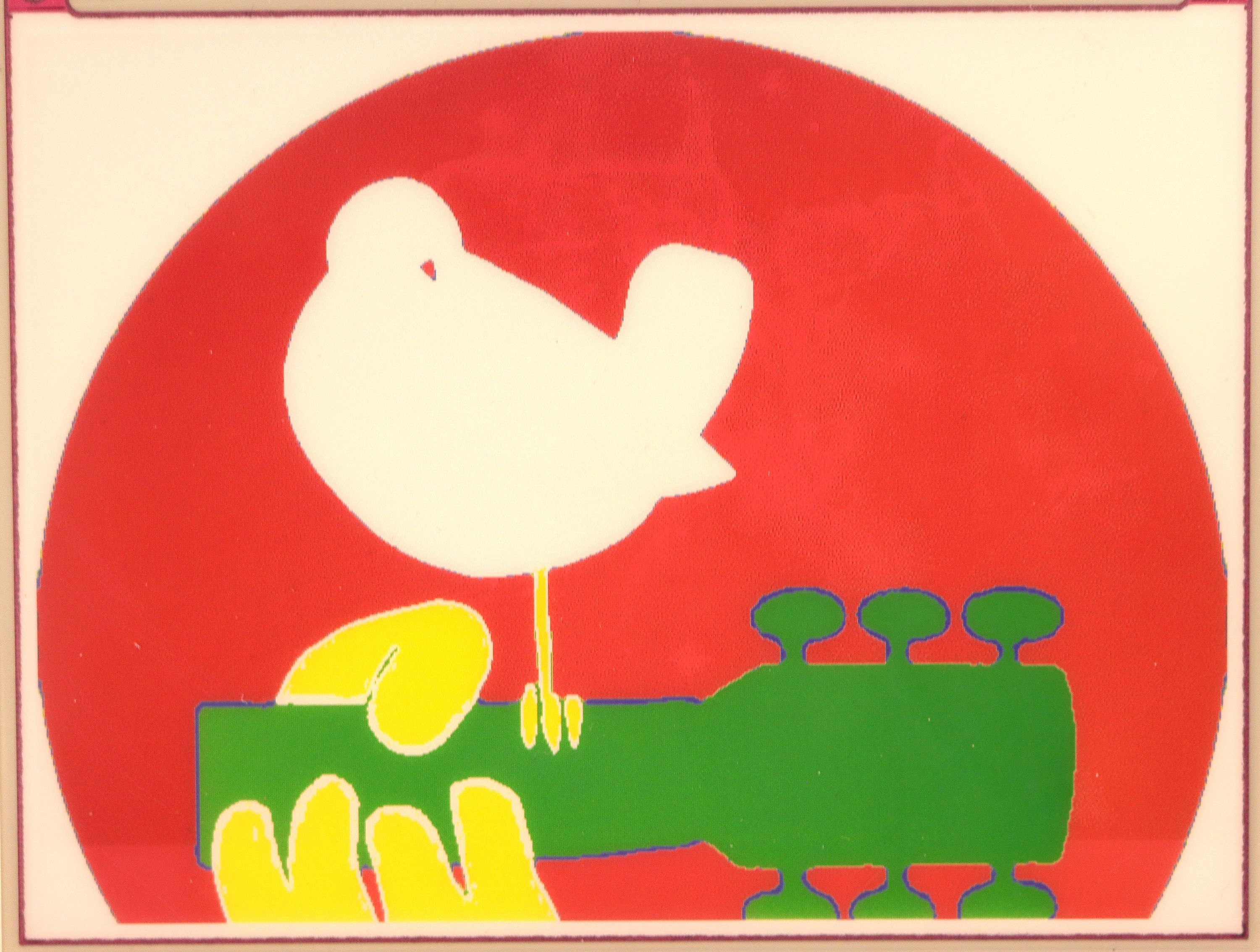

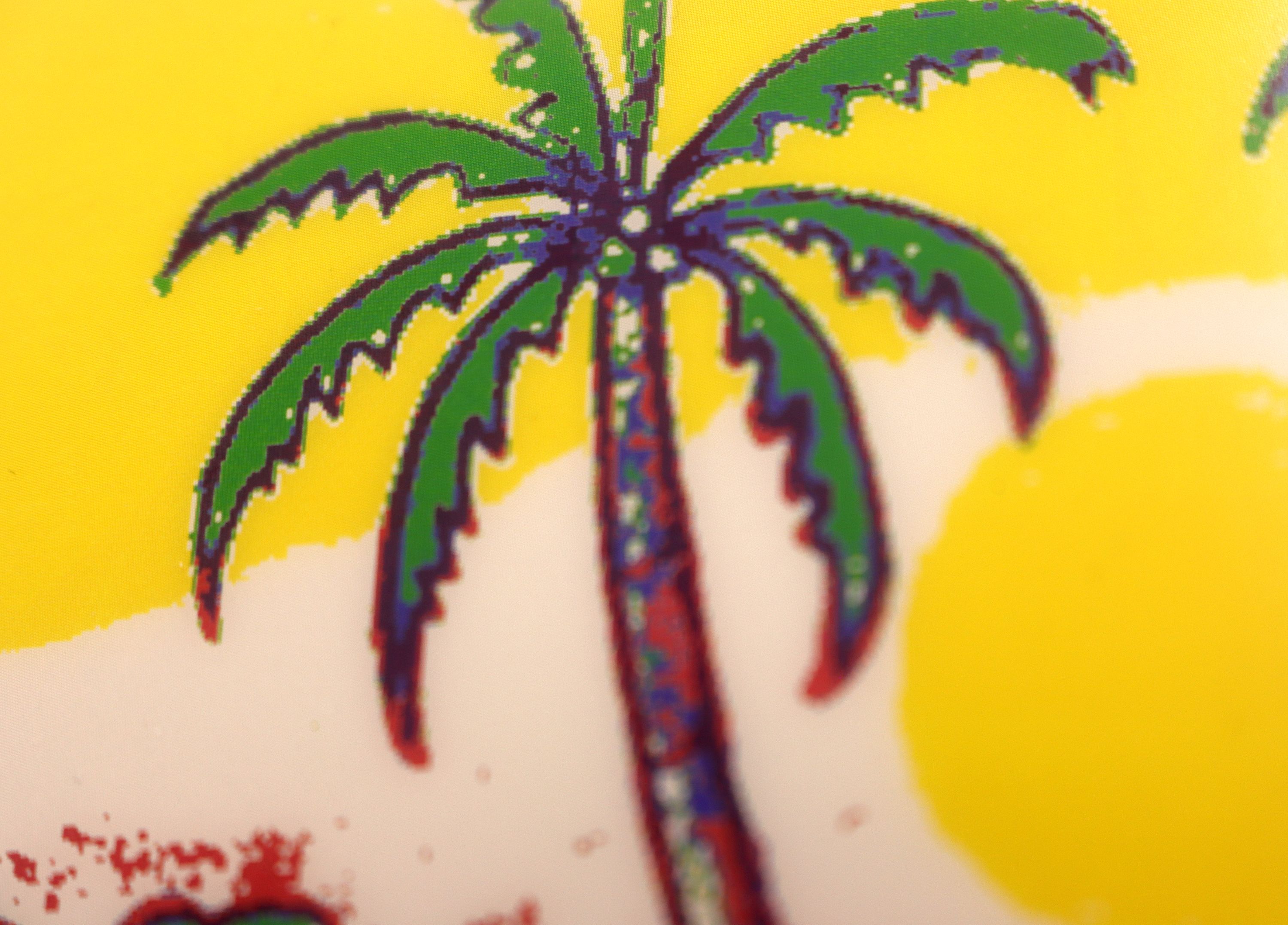

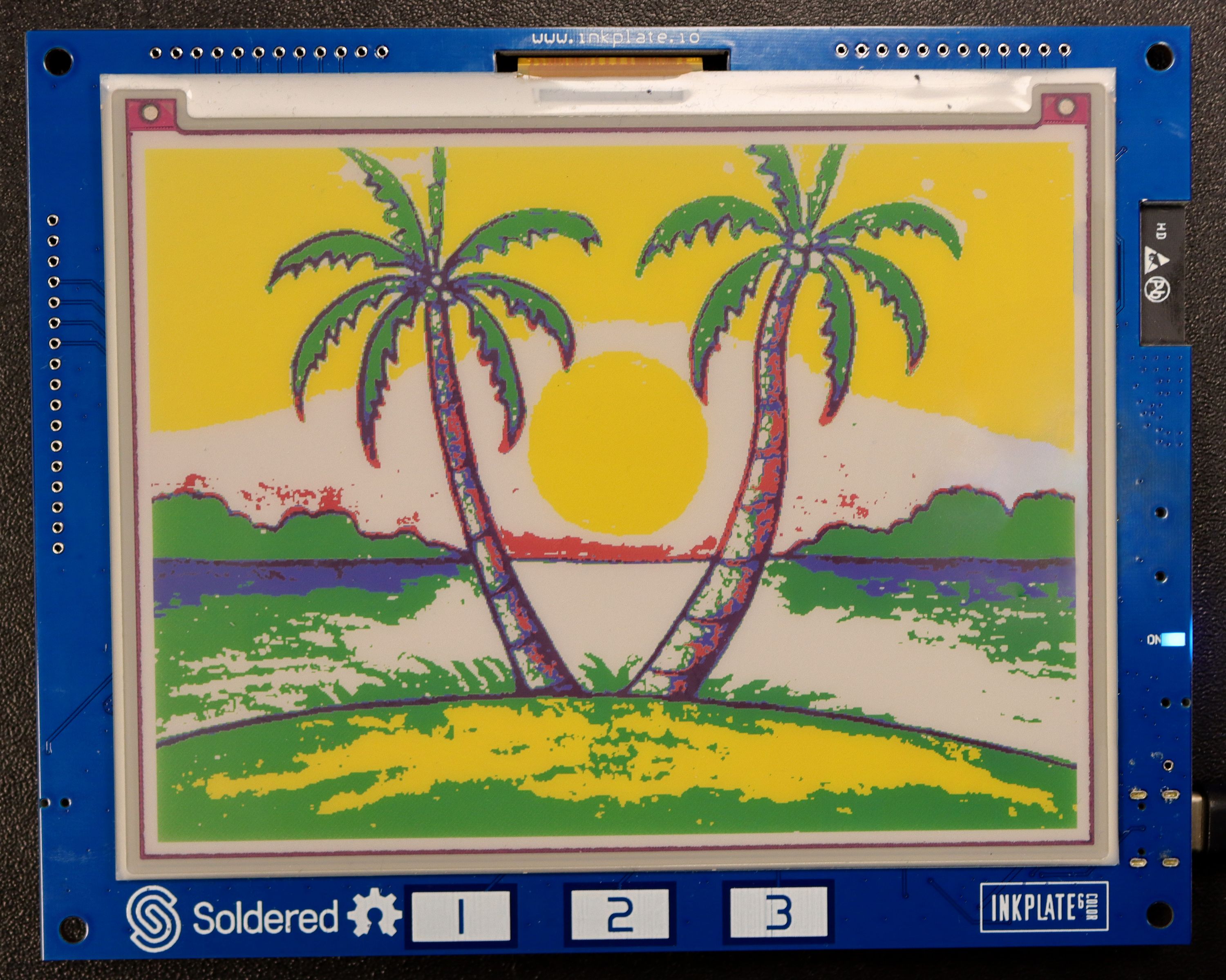

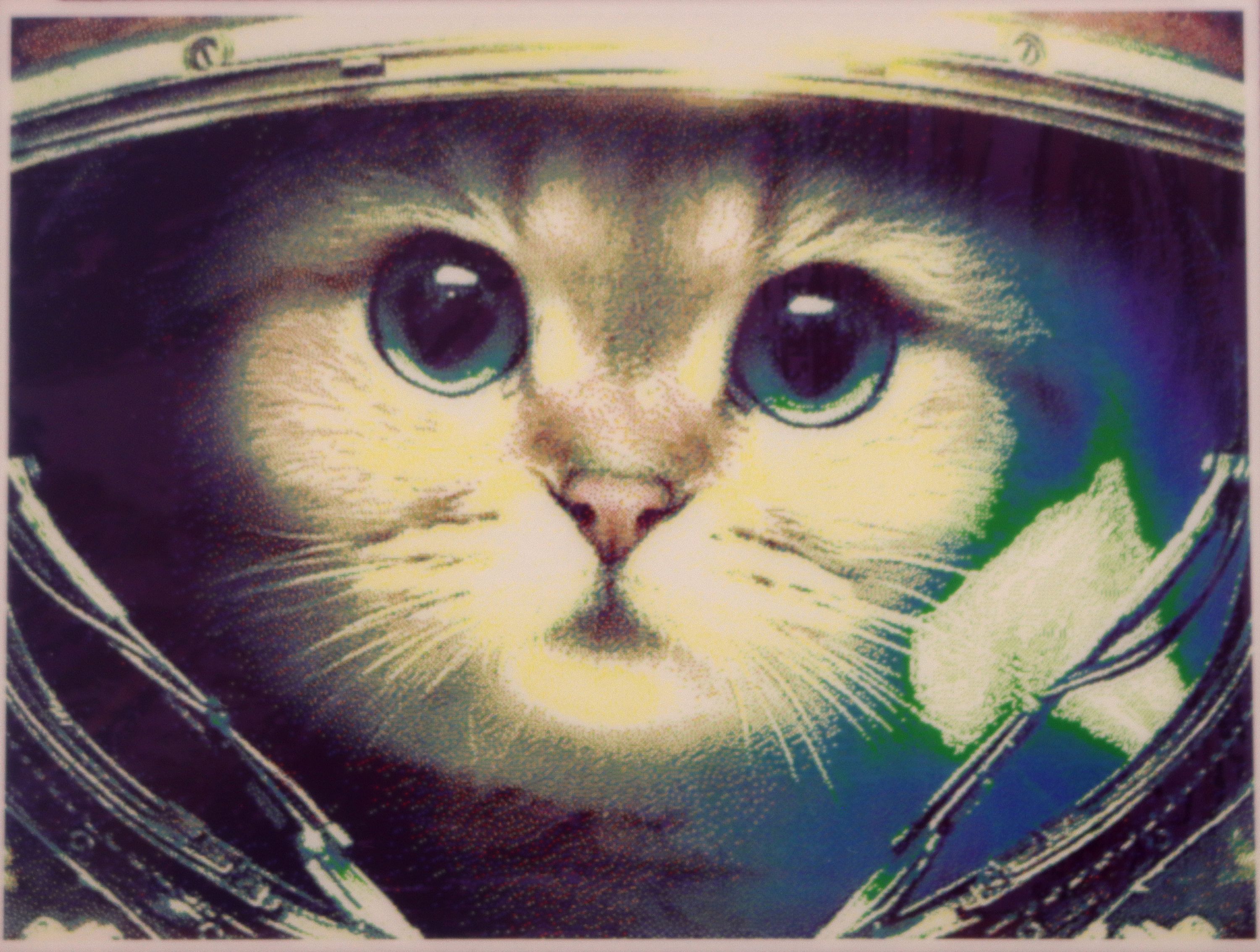

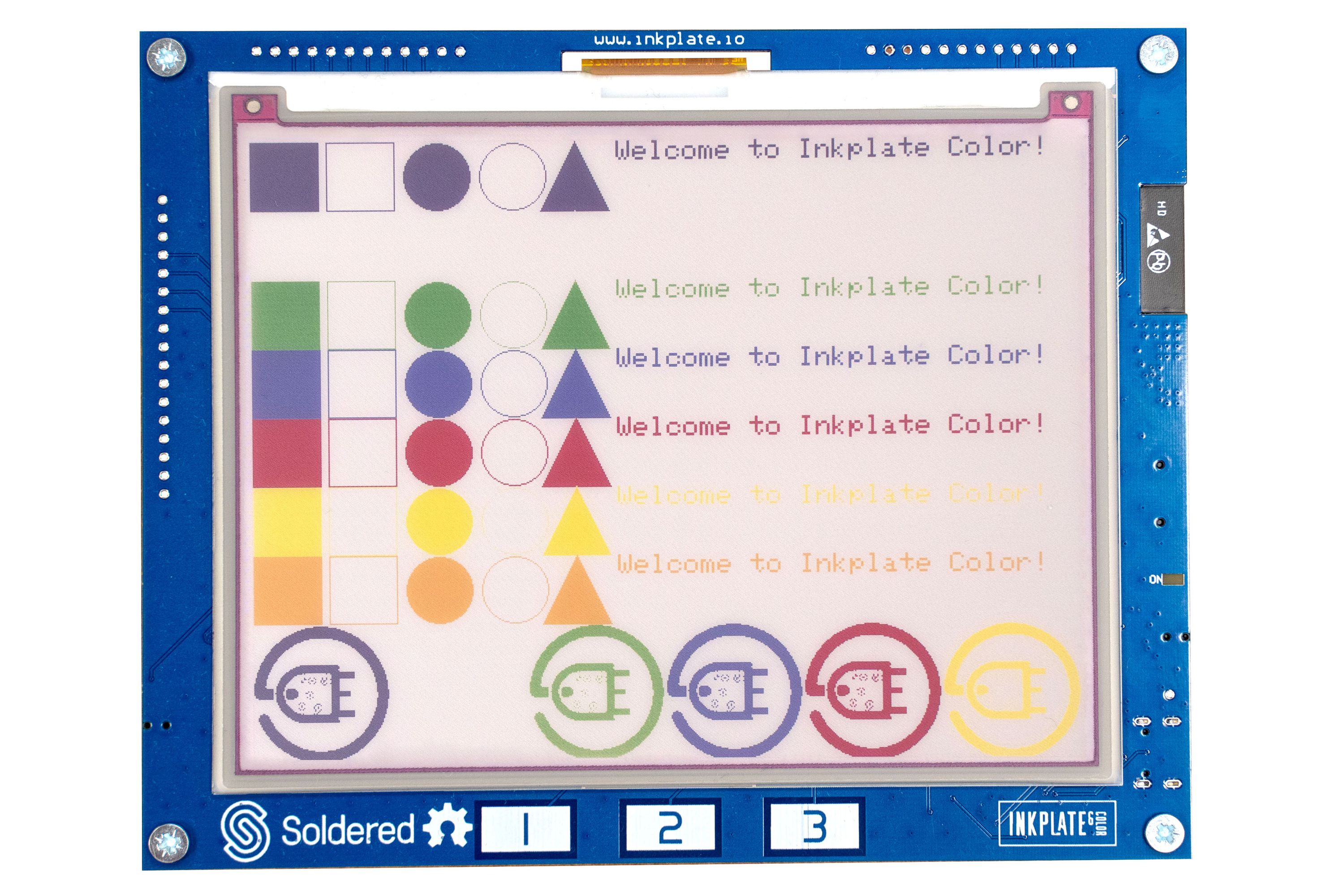

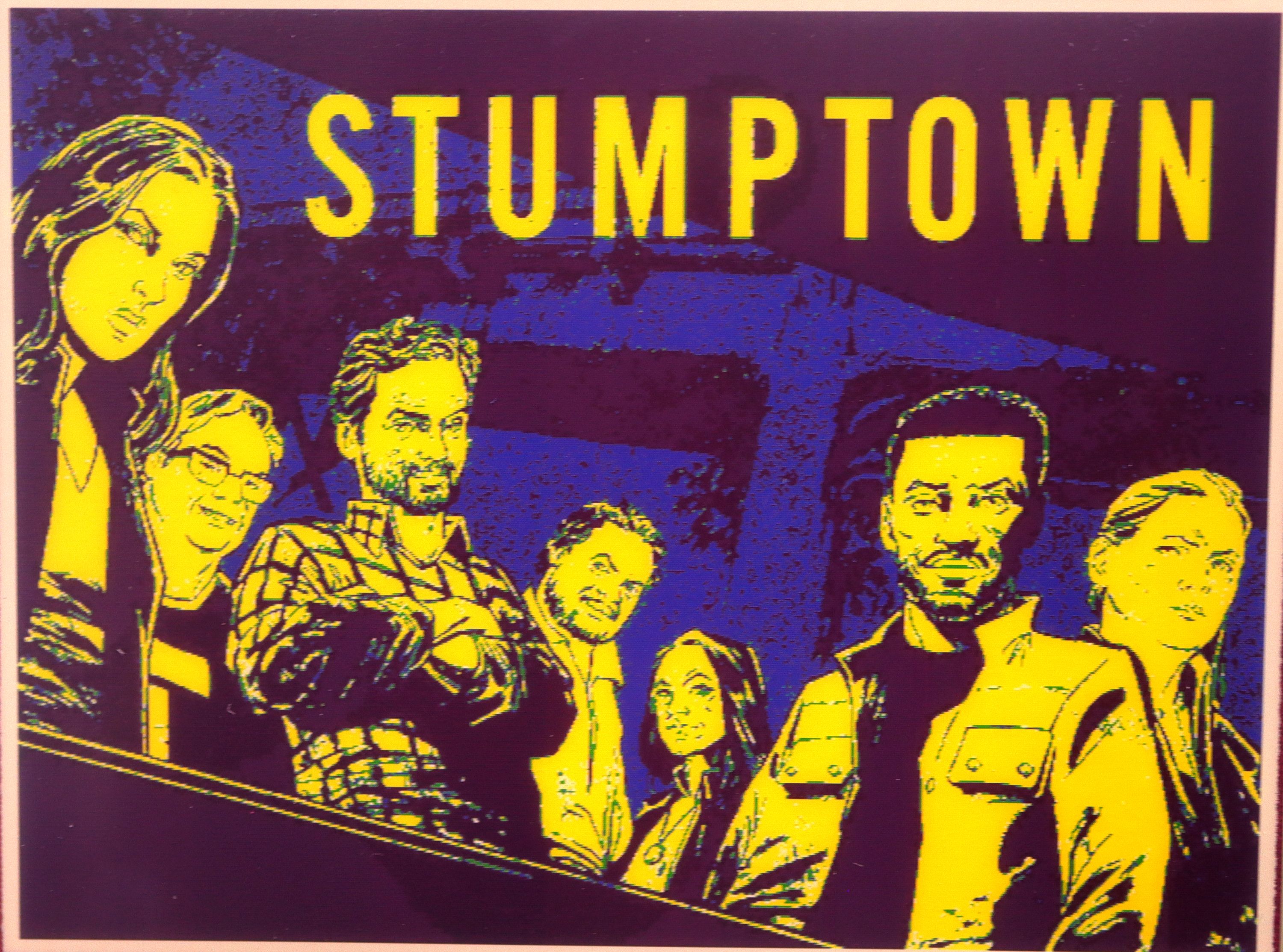

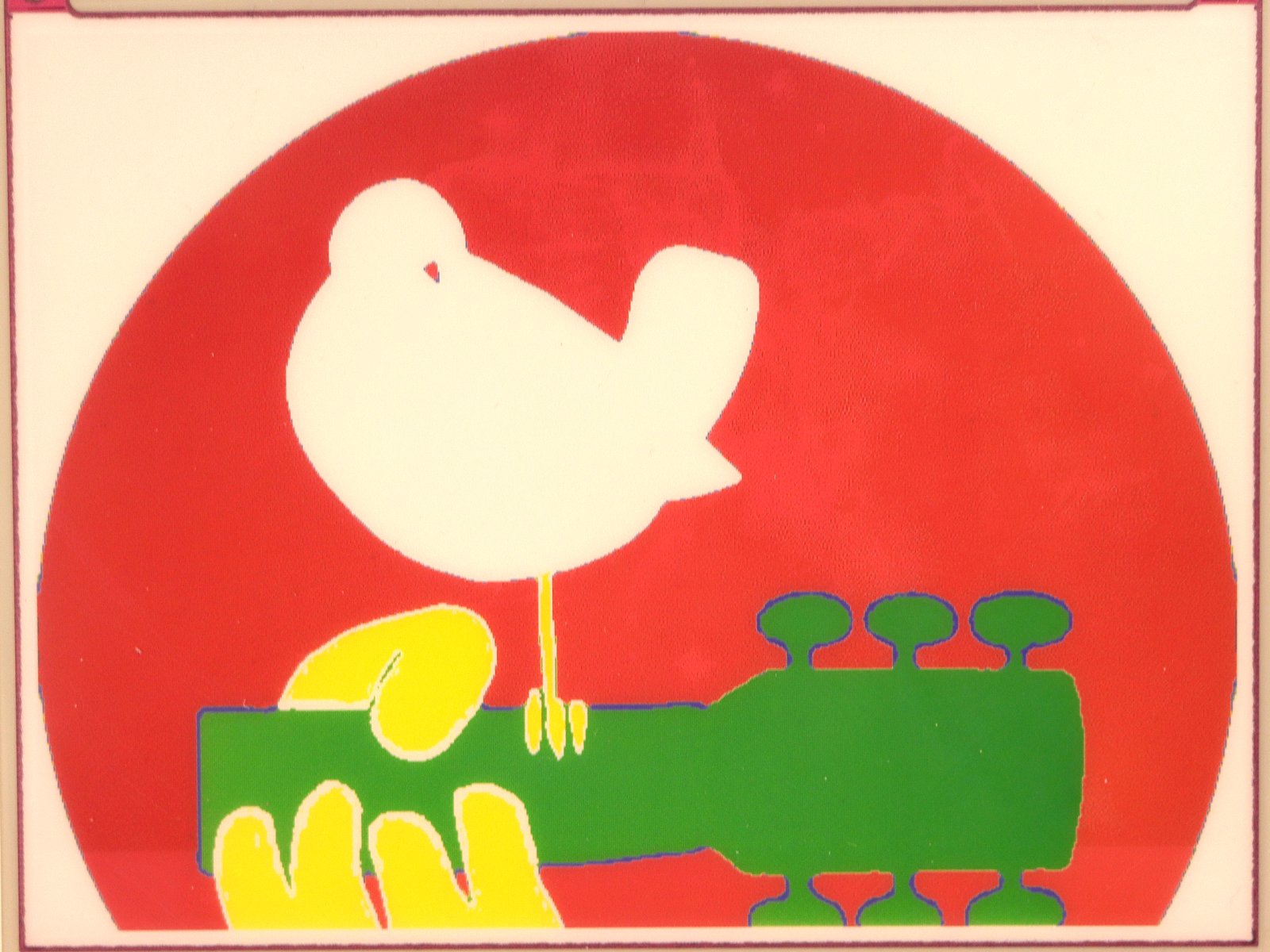

Some "screenshots" of the e-paper on Inkplate 6COLOR

Technical specs of the screen:

Inkplate 6COLOR refresh in real time. First video without dithering, second with dithering turned on.

What Can I Use Inkplate 6COLOR For?

Features & Specifications

Comparison Table

Check out how the Inkplate 6COLOR compares to our previous e-paper displays.

Inkplate 6COLORInkplate 10Inkplate 6Inkplate 6PLUS
Screen Size5.85"9.7"6"6"
Resolution600 x 4481200 x 825800 x 6001024 x 758
Total number of pixels268,800990,000480,000776,192
ColorsYes, seven colors totalNoNoNo
Touch pads333No, touchscreen
All-in-one BoardYesYesYesYes
Low-Power Mode18 μA22 μA25 μA22 μA
Battery ChargerYesYesYesYes
MicroSD slotYesYesYesYes
Partial UpdateNoYesYesYes
Refresh Time in Seconds25 s / 11 s1.61 s1.26 s1.27 s
Refresh Time per Pixel93 μs / 41 μs1.62 μs2.63 μs1.63 μs

Support & Documentation

Inkplate 6COLOR is open hardware driven by open source software. OSHWA certification is in the works. Its hardware design files and software are openly maintained in our GitHub repositories, as is our documentation. If you don’t find what you’re looking for, we provide free technical support through our forums. You can also contact us using the Ask a technical question link on our campaign page if you have a question.

Manufacturing Plan

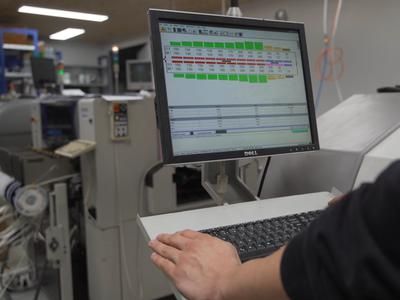

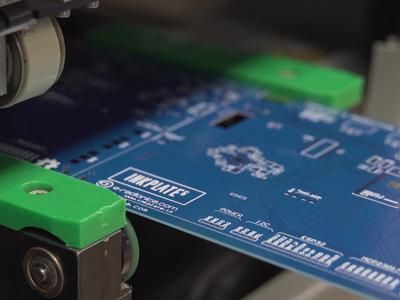

We here at Soldered have years of experience assembling electronic boards for makers. We have an in-house manufacturing line staffed by experts who have handled large productions runs many times. We also have two dozen 3D printers running day and night. We do not anticipate any issues during Inkplate 6COLOR manufacturing, and we believe that confidence is justified by our previous campaign track records, which included 2000-unit Inkplate 6 batches, 1500-unit Inkplate 10 batches, 500-unit Inkplate 6PLUS and other production runs that reached as high as 25,000 units per batch. Inkplate 6COLOR is ready for mass production, and our team is comfortable handling the logistical and quality control aspects to ensure that everyone receives a tested and working product.

Fulfillment & Logistics

After all Inkplate 6COLOR boards have been assembled and tested here in Osijek, Croatia, they will be sent to Crowd Supply’s facility in the United States for final delivery to backers. Mouser Electronics is handling the shipping, and they know how to do it properly. All units will be protected for shipping with ESD foam for padding inside a sealed ESD plastic bag, placed in a sturdy cardboard box. Shipping is free for the US customers, and there’s $8 fee for worldwide customers.

For more information about ordering, paying, and shipping, please see Crowd Supply’s Guide. For backers in many countries, VAT will be charged at checkout, and products will be pre-cleared through customs.

Risks & Challenges

As with previous Inkplates, we have thoroughly tested both the hardware and the software of Inkplate 6COLOR. We have gone through multiple prototyping runs, and all of the technical issues have been resolved. We have also identified primary and backup suppliers for all components. Since the e-paper display at the core of Inkplate 6COLOR is brand new, and is obtainable from E-Ink Corporation, it will take more time due to the current shortage - thus the longer delivery times which is indicated in the delivery estimated dates specified on the pledge levels.

And let us not forget the silicon-shortage Armageddon that’s currently affecting the entire semiconductor industry… Due to supply-chain disruptions, many of the parts we require are out of stock worldwide. Given that reality, we intend to book as much quantity as we can (from authorized suppliers with whom we have done business in the past) as soon as possible. Nonetheless, it is quite likely that some components will have availability issues that delay Inkplate 6COLOR production and thereby push back our delivery estimates. We have quite a lot of experience with this process, and we intend to use that experience to stick as close to our published schedule as possible.

In the Press

Geeky Gadgets

" A new e-paper color display [launching] via Crowd Supply offering a 5.8 inch Wi-Fi enabled color display that is easy to set and extremely versatile. "

knapsack news logo

Knapsack News

"I’m a sucker for DIY projects and I’m also a sucker for e-ink. That’s why this $199 device, which is essentially a color e-ink panel with a built-in Arduino controller is so interesting."

Hackster News

"With seven colors to choose from and a built-in dithering system, the latest Inkplate is nothing if not eye-catching."

Produced by Soldered Electronics in Osijek, Croatia.

Sold and shipped by Crowd Supply.

Inkplate 6COLOR

A Wi-Fi-enabled 5.8" e-paper touchscreen display. Does not include battery or enclosure.

$99 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

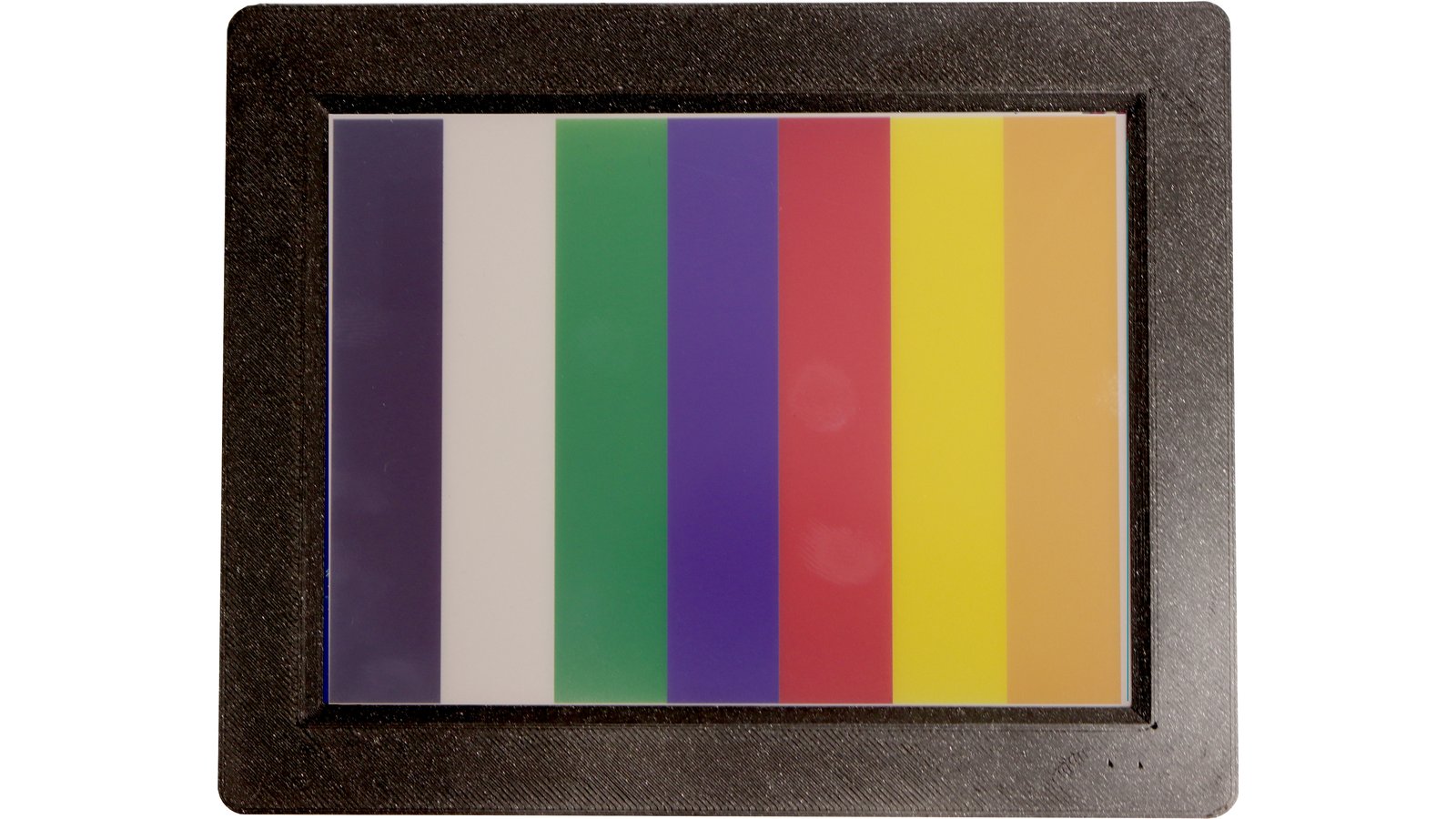

Inkplate 6COLOR with Enclosure

A Wi-Fi-enabled 5.8" e-paper touchscreen display, preinstalled in a 3D-printed enclosure. Does not include battery.

$119 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

USB 2.0 Cable: Type-C to Type-A (1 m / ~3.3 ft)

From the Crowd Supply Basics project.

A 100 cm cable with a USB Type-C and a USB Type-A connector.

$7 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

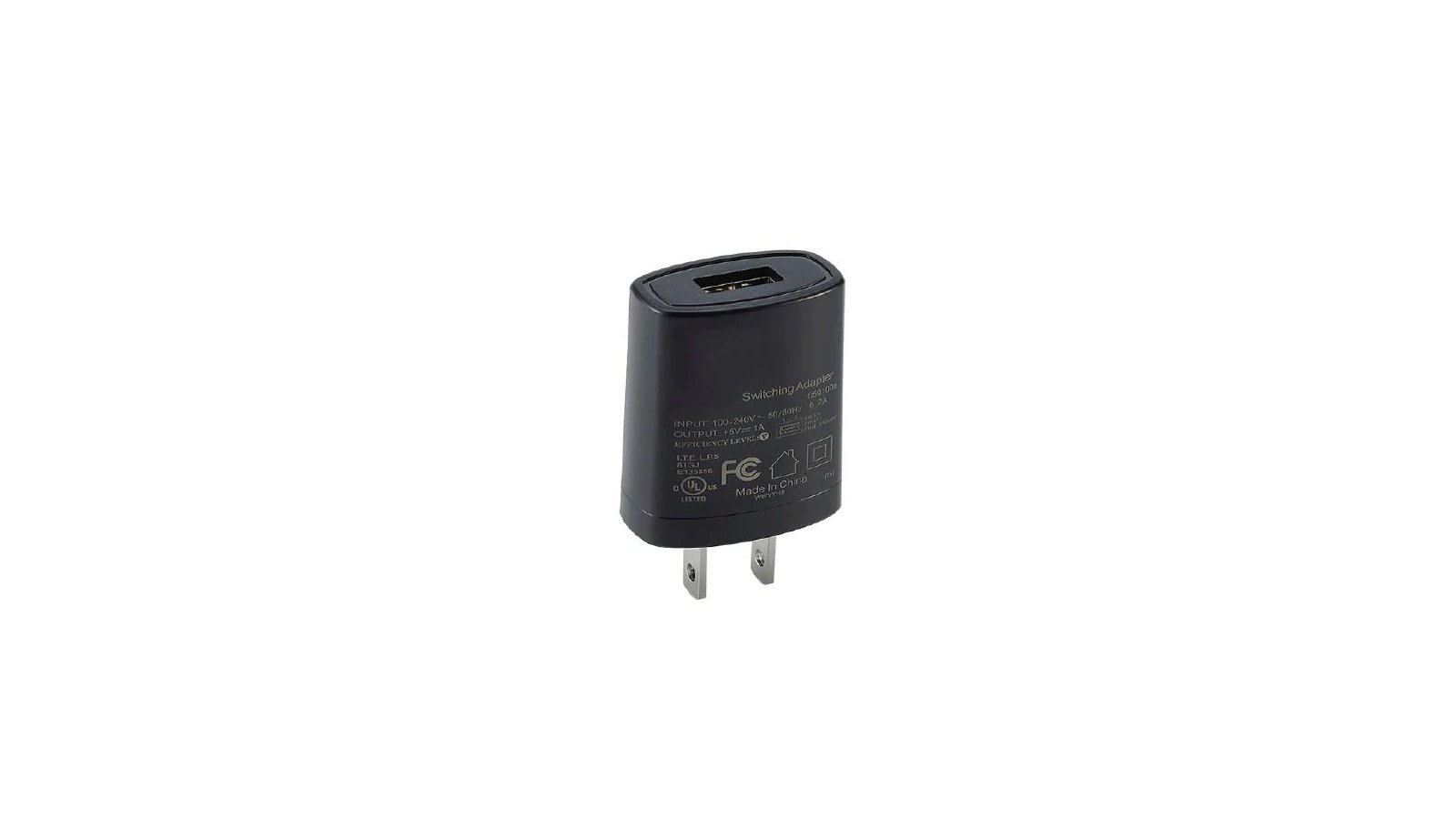

Wall Mount USB AC Adapter - US Plug

From the Crowd Supply Basics project.

A wall mount 5 V, 1 A AC adapter with a USB Type-A port and US plug.

$4 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

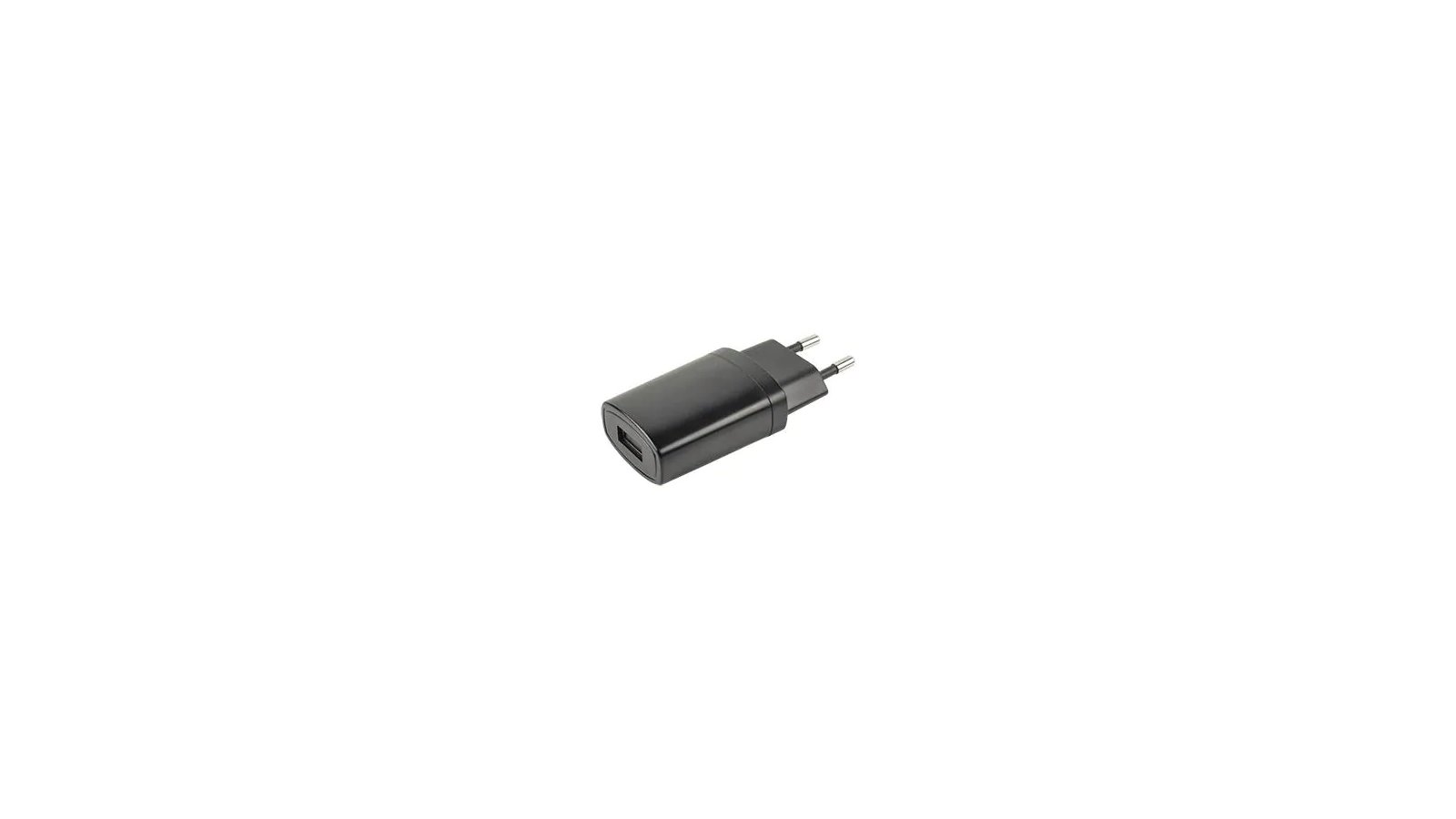

Wall Mount USB AC Adapter - EU Plug

From the Crowd Supply Basics project.

A wall mount 5 V, 1 A AC adapter with a USB Type-A port and EU plug.

$8 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

About the Team

Soldered Electronics

Osijek, Croatia  ·   solderedcom  ·   solderedelectronics  ·

Our company originated as a high school garage project in 2013. Initially crafting electronic boards for friends and hobbyists, we evolved into a professional entity, engineering and producing a diverse range of products and services for makers worldwide. In 2022, we transitioned to the name Soldered Electronics, marking a new chapter in our growth and product design. To date, we have engineered over 200 electronic products, manufactured a total of 250,000 units, and delivered those units to makers in more than 85 countries. In addition to electronic production, we have curated an extensive library of 320 tutorials and manuals, complete with descriptions and schematics for electronic products. These resources help makers use our products and our sample code more effectively. Finally, we offer 24/7 customer support and technical assistance for each of our products, regardless of the sales channel through which it was obtained.
