by Lime Microsystems

A Software-Definable RF Front End Module for LimeSDR Platforms

Crowdfunding Page History

This page is an archive of the original crowdfunding campaign for this project. It may not be up-to-date with the latest updates and product availability. Return to the current project page.

$56,708 raised

of $10,000 goal

567% Funded! Order Below

Pledge Now



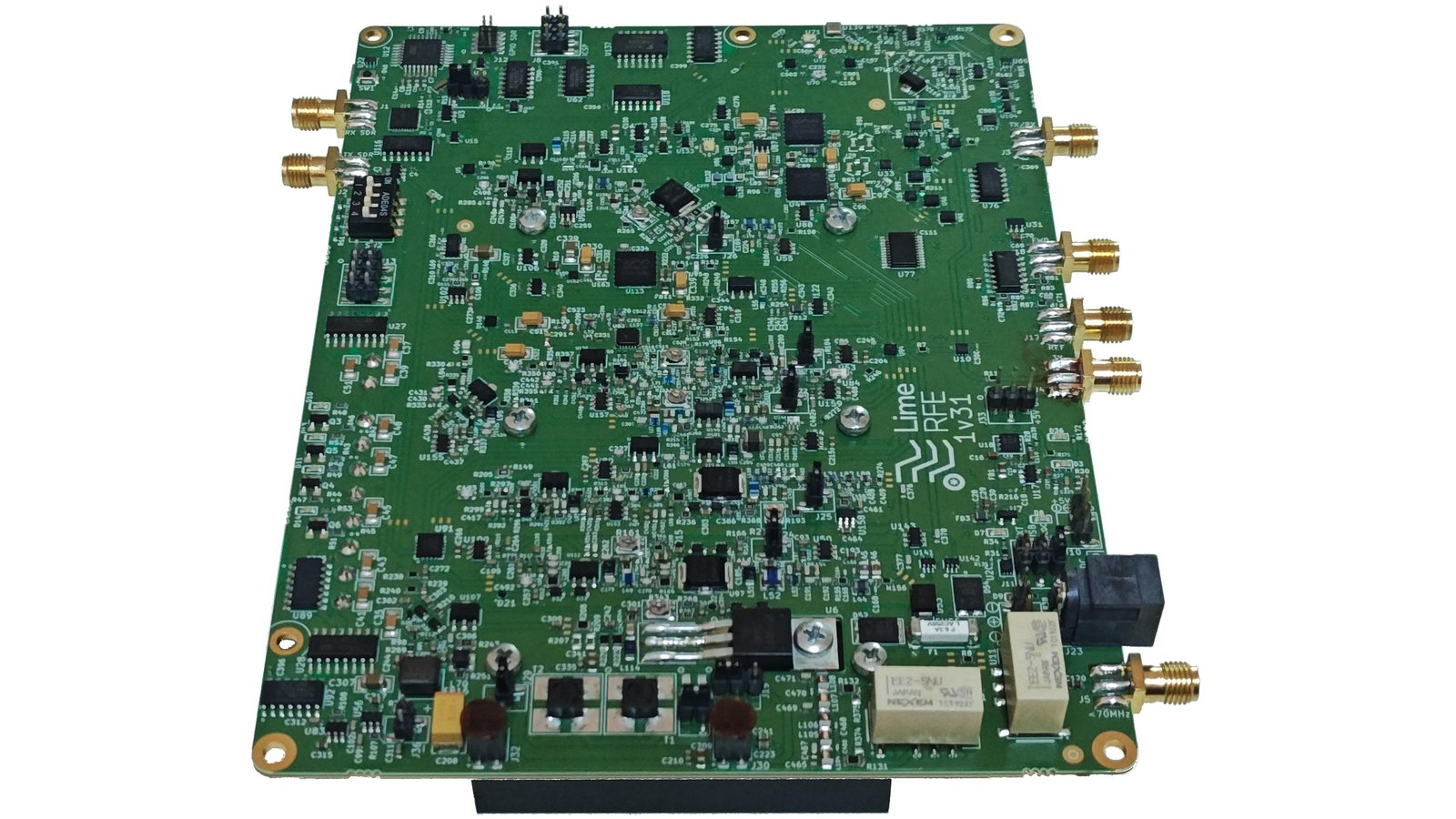

LimeRFE integrated power amplifier (PA), low noise amplifier (LNA) and filter solution for LimeSDR and LimeNET Micro software-defined radio applications.


LimeRFE Without Cellular

LimeRFE integrated power amplifier (PA), low noise amplifier (LNA) and filter solution for LimeSDR and LimeNET Micro software-defined radio applications. Reduced cost version without support for cellular bands.

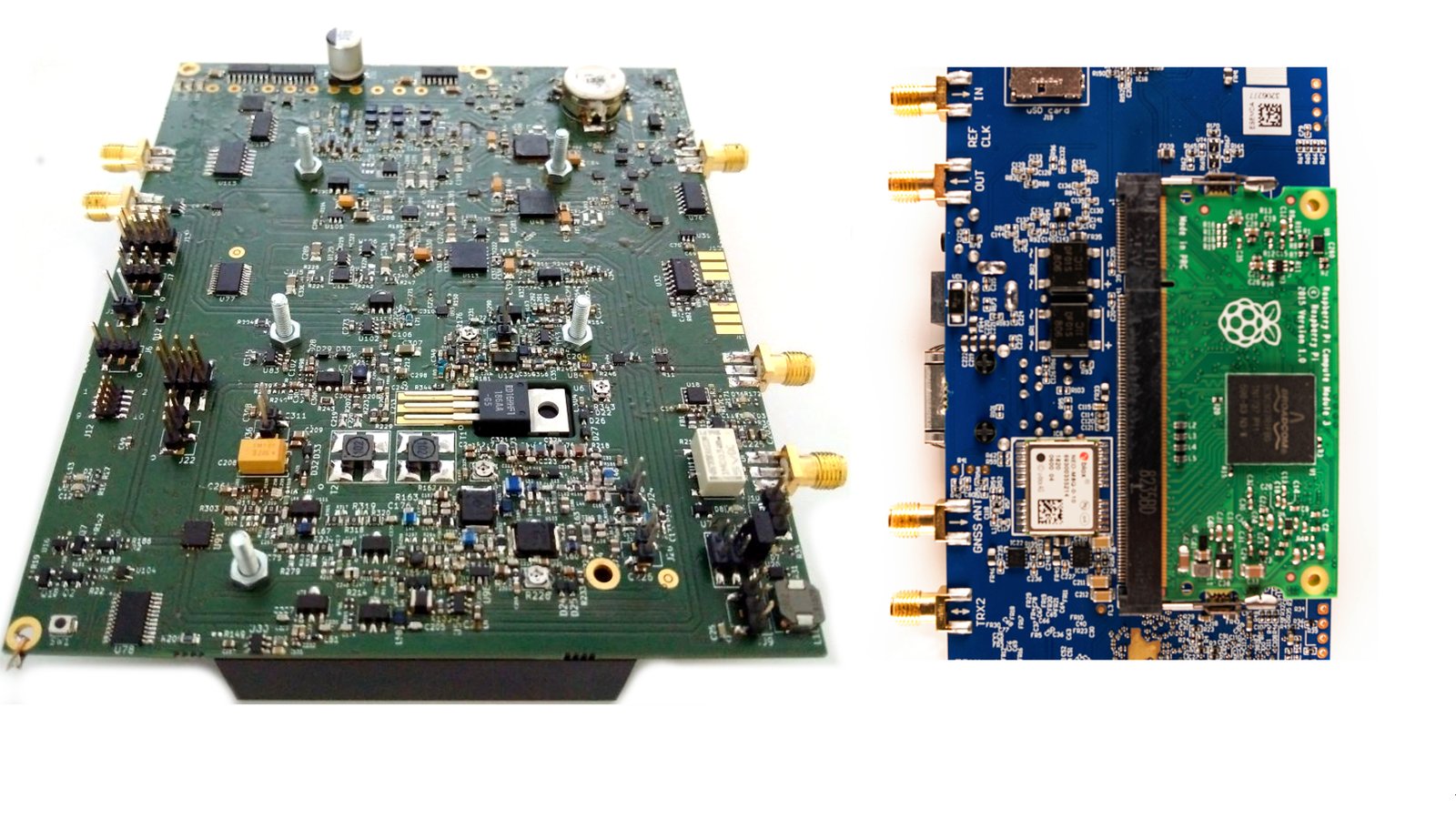

LimeRFE + LimeNET Micro Bundle

LimeRFE integrated power amplifier (PA), low noise amplifier (LNA) and filter solution for LimeSDR and LimeNET Micro software-defined radio applications, bundled with a LimeNET Micro board


Early Bird LimeRFE

Early Bird pricing! LimeRFE integrated power amplifier (PA), low noise amplifier (LNA) and filter solution for LimeSDR and LimeNET Micro software-defined radio applications


Recent Updates

As Featured In


"This is a power amplifier that augments the existing LimeSDR. It covers all the HAM, mobile, and wide-band frequencies."

Geeky Gadgets

"Users of the LimeSDR platform may be interested in a new piece of hardware launched by Lime Microsystems this month in the form of the LimeRFE."


"Compatible con redes HAM, celulares y de banda ancha, este front end RF para SRD otorga flexibilidad de diseño."

Daniel Estévez

"As anyone will know, designing broadband RF hardware is often quite difficult or expensive (Amateur radio amplifiers and LNAs are usually designed for a single band), so packing all this into a single unit is a considerable feat."

A Complete Solution for Custom HAM, Cellular, and Wideband Networks

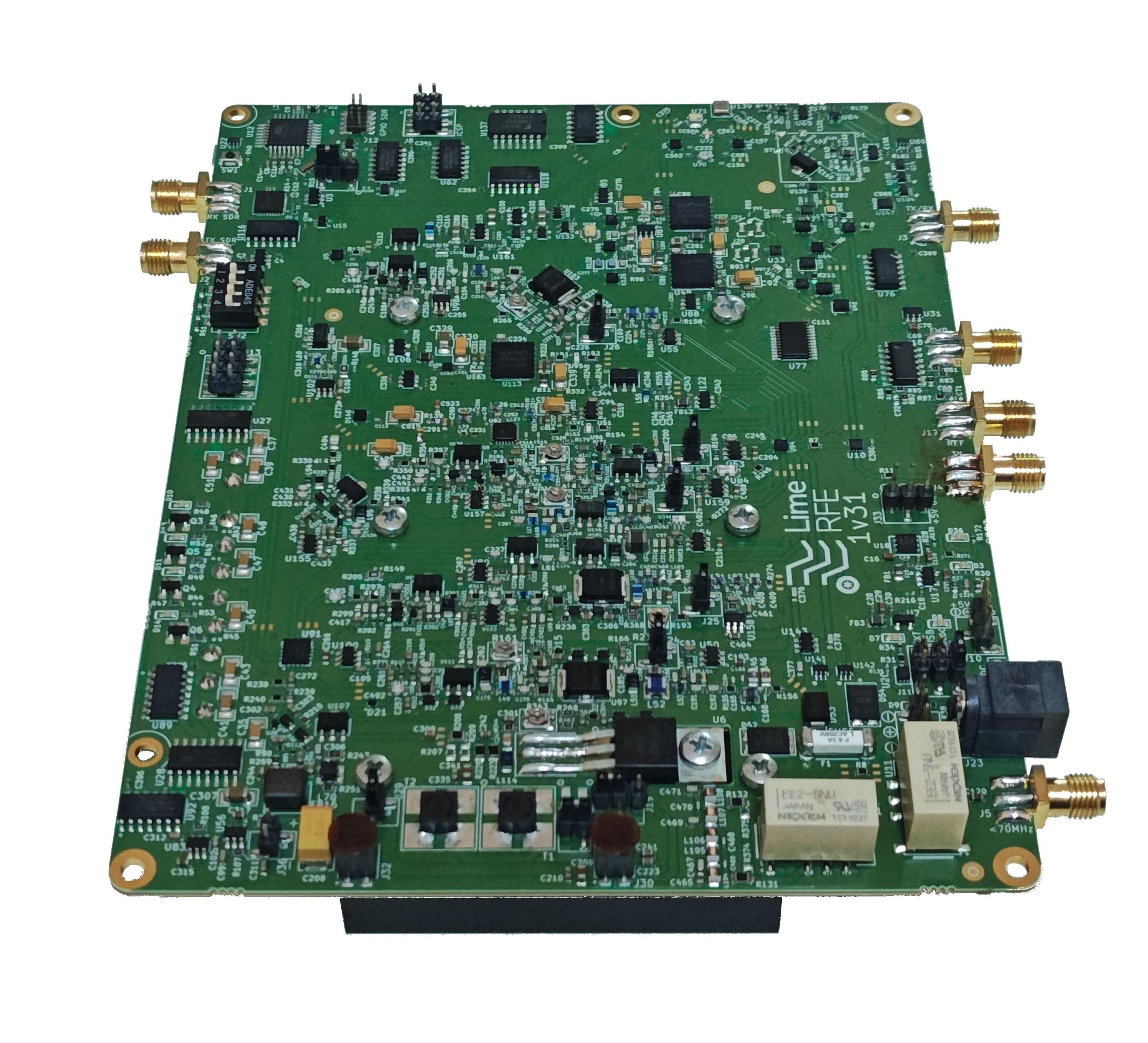

The Lime RF Front End (LimeRFE) is an open hardware power amplifier (PA) module with appropriate filtering and support circuitry to augment the LimeSDR, LimeSDR Mini, and LimeNET Micro platforms, providing a complete solution that addresses real life applications ranging from HAM radio to standards-compliant cellular network implementations.

LimeRFE will enhance any LimeSDR based wireless project by providing:

  • A stronger, clearer signal when transmitting
  • Less noise when receiving
  • Improved range for both

Software-Defined Front End

A single LimeRFE covers three very different sets of bands: HAM, cellular, and wideband. The exact band used at any given time is software-selectable. By making the RF front end definable in software, LimeRFE is the next step in the evolution of software-defined radio.

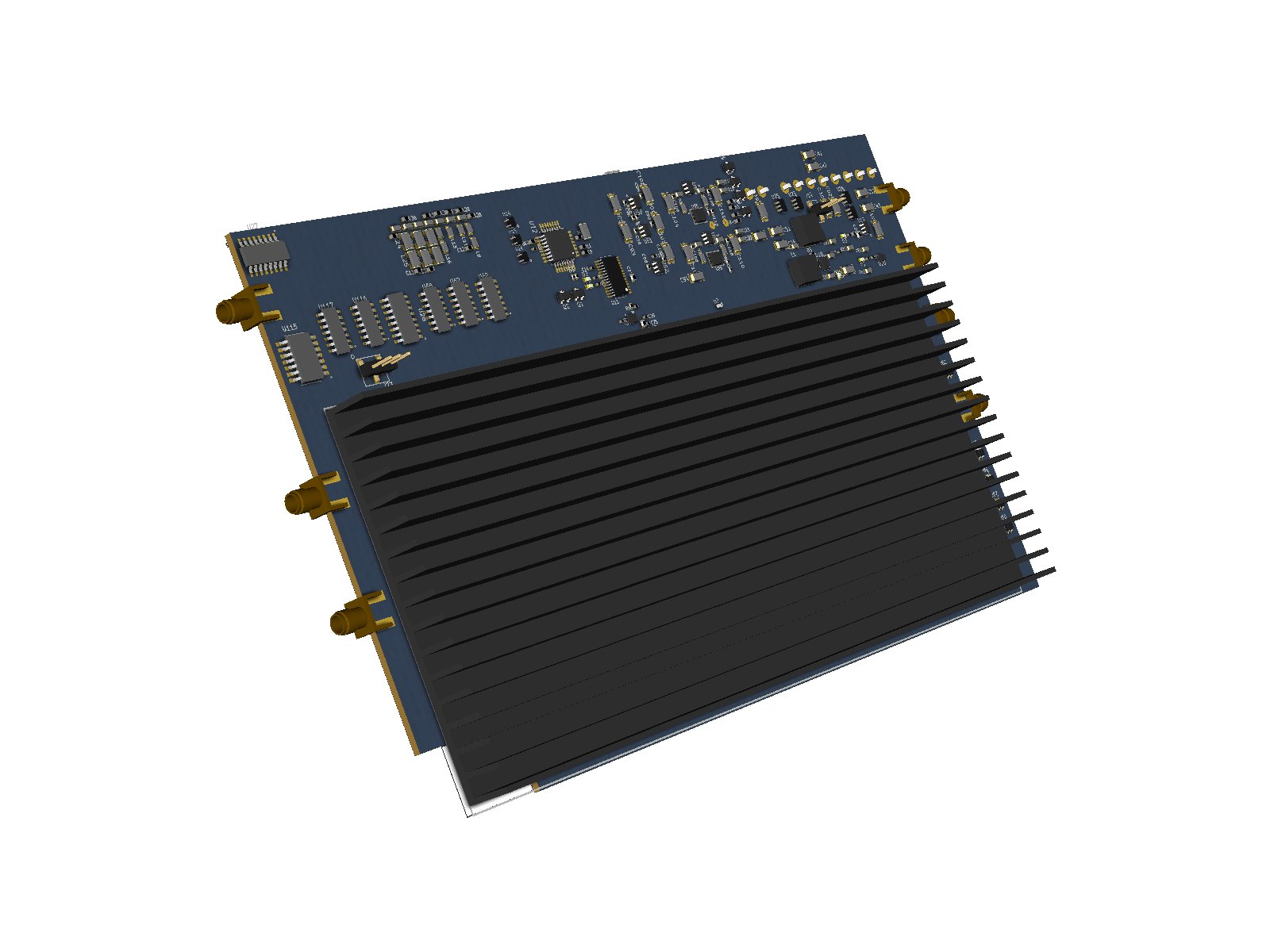

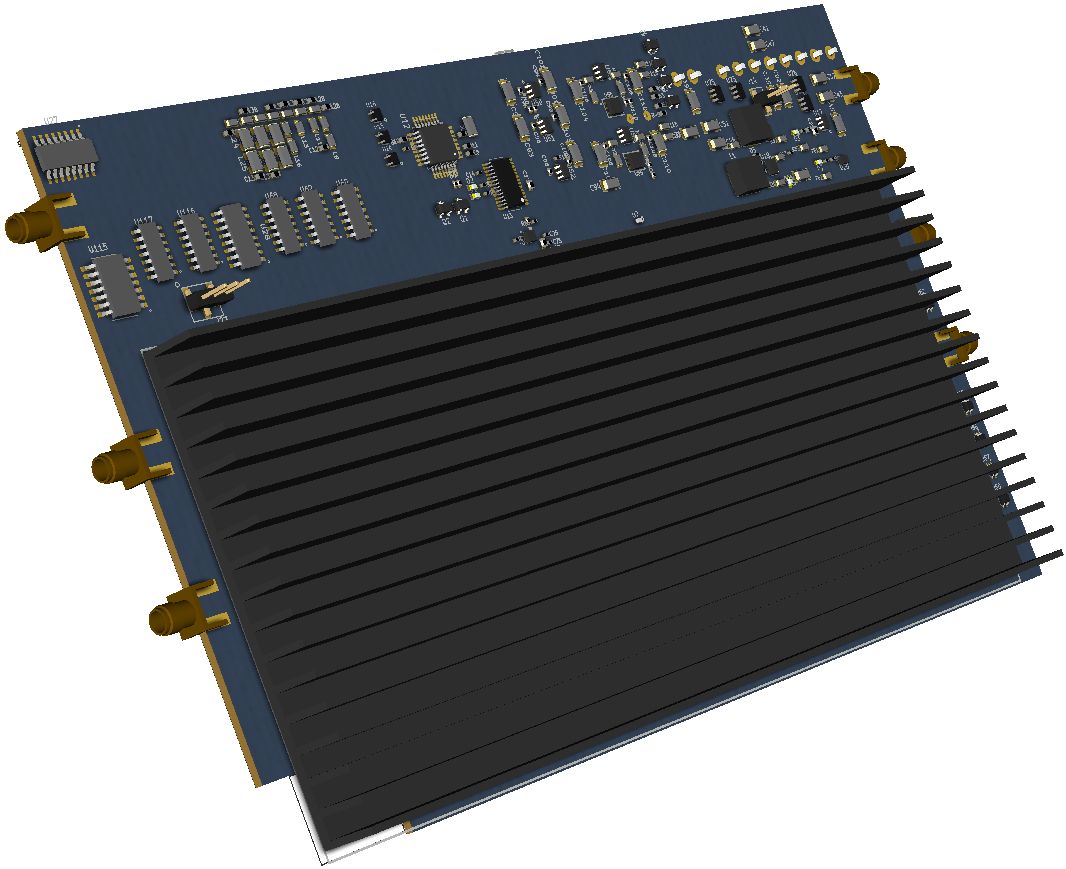

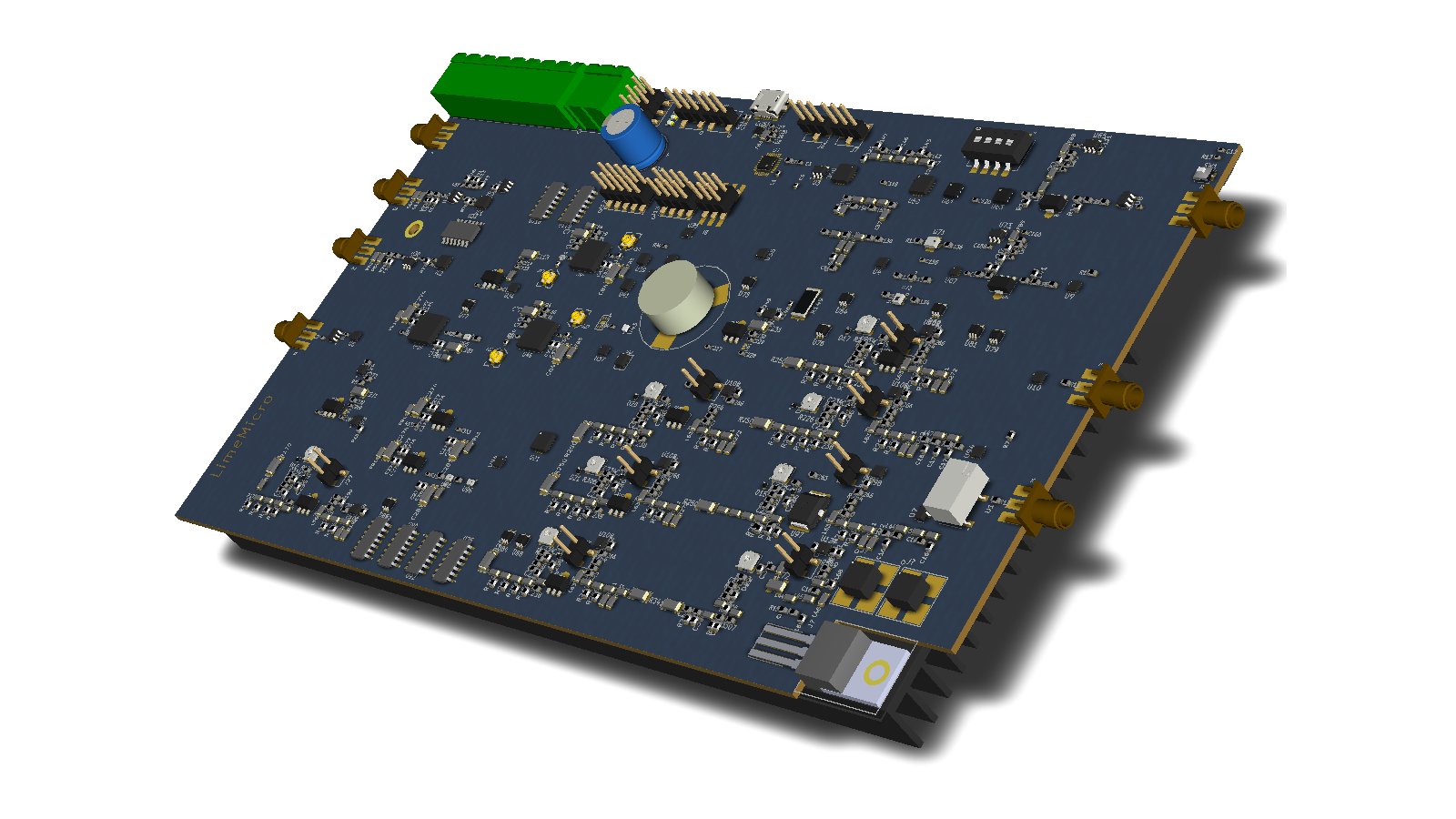

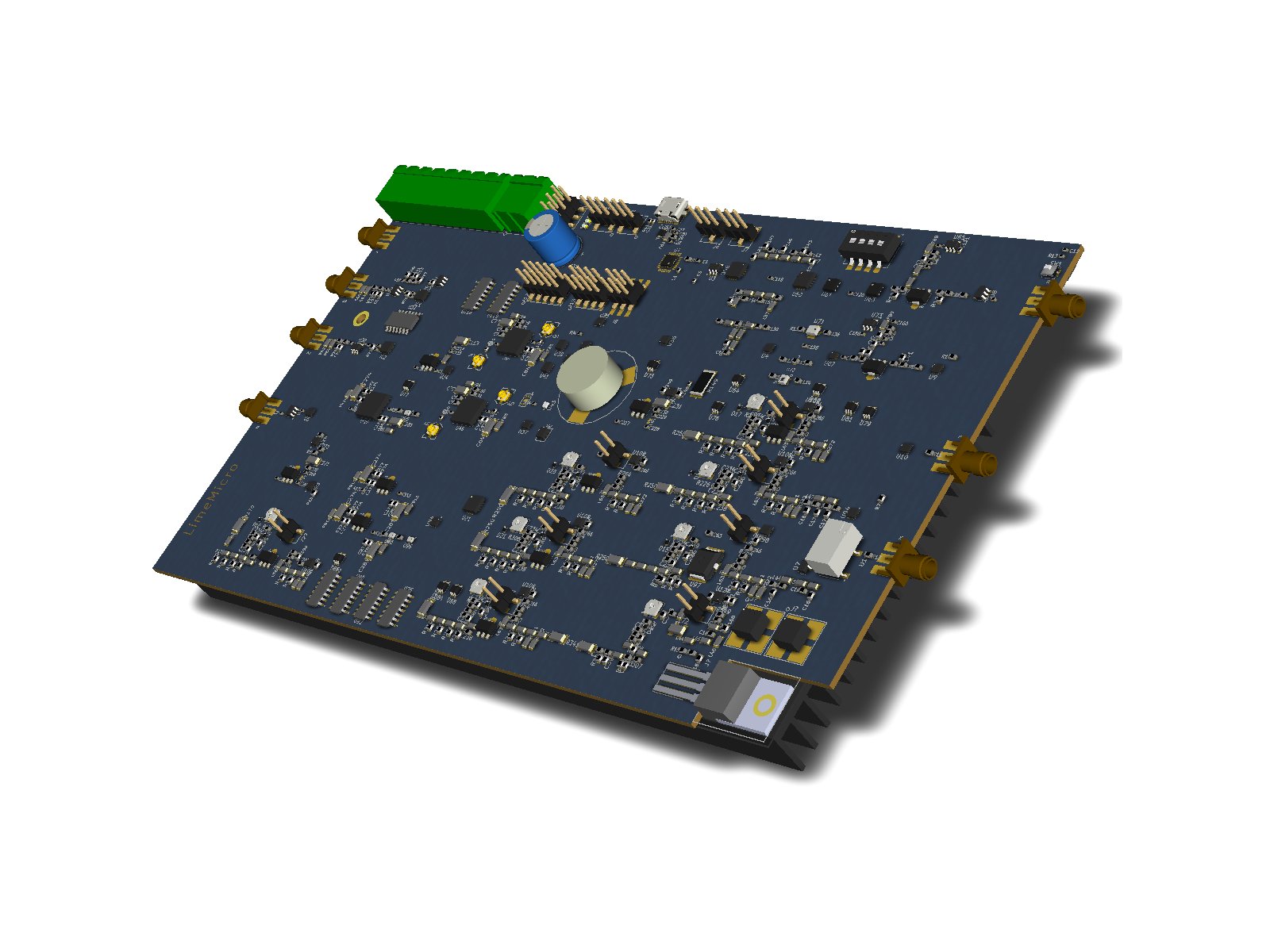

LimeRFE render front (left) and back (right)

Features & Specifications

HAM Bands

No. Name Frequency (MHz) Output P1dB (dBm)*
1** HF** 1.6 – 30** 33
2 6 m, 4 m 50 – 54, 69.9 – 70.6 30
3 2 m 144 – 146 33
4 1.25 m 220 – 225 32
5 70 cm 430 – 440 32
6 33 cm 902 – 928 27
7 23 cm 1240 – 1325 27
8 13 cm 2300 – 2450 31
9 - 3300 – 3500 24

* Preliminary estimates of 1-dB compression point

** See note below about HF bands

A Note About HF Bands

Depending upon the application and overall system configuration, additional filtering may be required for use with HF bands. In particular, HF is not one, but ten bands starting at 1.6 - 1.8 MHz and moving upward incrementally to 28.0 - 29.7 MHz. On-board filtering will attenuate signals greater than 30 MHz, but not Tx harmonics, or out-of-band Rx signals below this. You may need additional filtering, depending on the environment (if there are nearby HAMs operating on other HF bands, for example) and on whether or not you are using external power amplifiers with integrated filters, antenna tuning units, etc.

Cellular Bands

No. Name Duplex Downlink Freq. (MHz) Uplink Freq. (MHz) Modulated Output Power (dBm)
1 Band 3/DCS-1800 FDD 1805 – 1880 1710 – 1785 24
2 Band 2/PCS-1900 FDD 1930 – 1990 1850 – 1910 24
3 Band 1 FDD 2110 – 2170 1920 – 1980 24
4 Band 7 FDD 2620 – 2690 2500 – 2570 24
5 Band 38 TDD 2570 – 2620 2570 – 2620 24

Wideband Channels

No. Frequency (MHz) Output P1dB (dBm)*
1 1 – 1000 27.5
2 1000 – 4000 25.5

* Preliminary estimates of 1-dB compression point

Additional Features

  • Filtering
    • Each band has appropriate filtering both for Rx & Tx
    • Selectable AM/FM notch filter
  • Fully Open Source Software
    • Firmware
    • API support
    • GUI
    • LimeSuite integration
  • Control & Configuration
    • Programmable via Arduino IDE
    • Arduino Nano-compatible microcontroller (ATmega328)
    • FT232RL USB-to-serial converter
    • Host serial connection via USB mini Type B connector
  • Power & SWR Meter
    • 1 – 4000 MHz power & SWR meter (external directional coupler required)
    • Cellular bands Tx power meter (internal coupler)
  • 10-pin Interface to SDR
    • Power and ground
    • I2C (SDA and SCL)
    • 2x GPIO connected to on-board microcontroller
    • 4x bi-directional level shifted I/O
      • 1.2 – 5.5 V
      • Each I/O has a high voltage and power Darlington drive stage for inductive loads (e.g., coaxial relays)
      • Individually switchable direction (input/output)
  • Power Supply
    • Single 12 V supply
    • Optionally supply microcontroller and Rx channels via USB

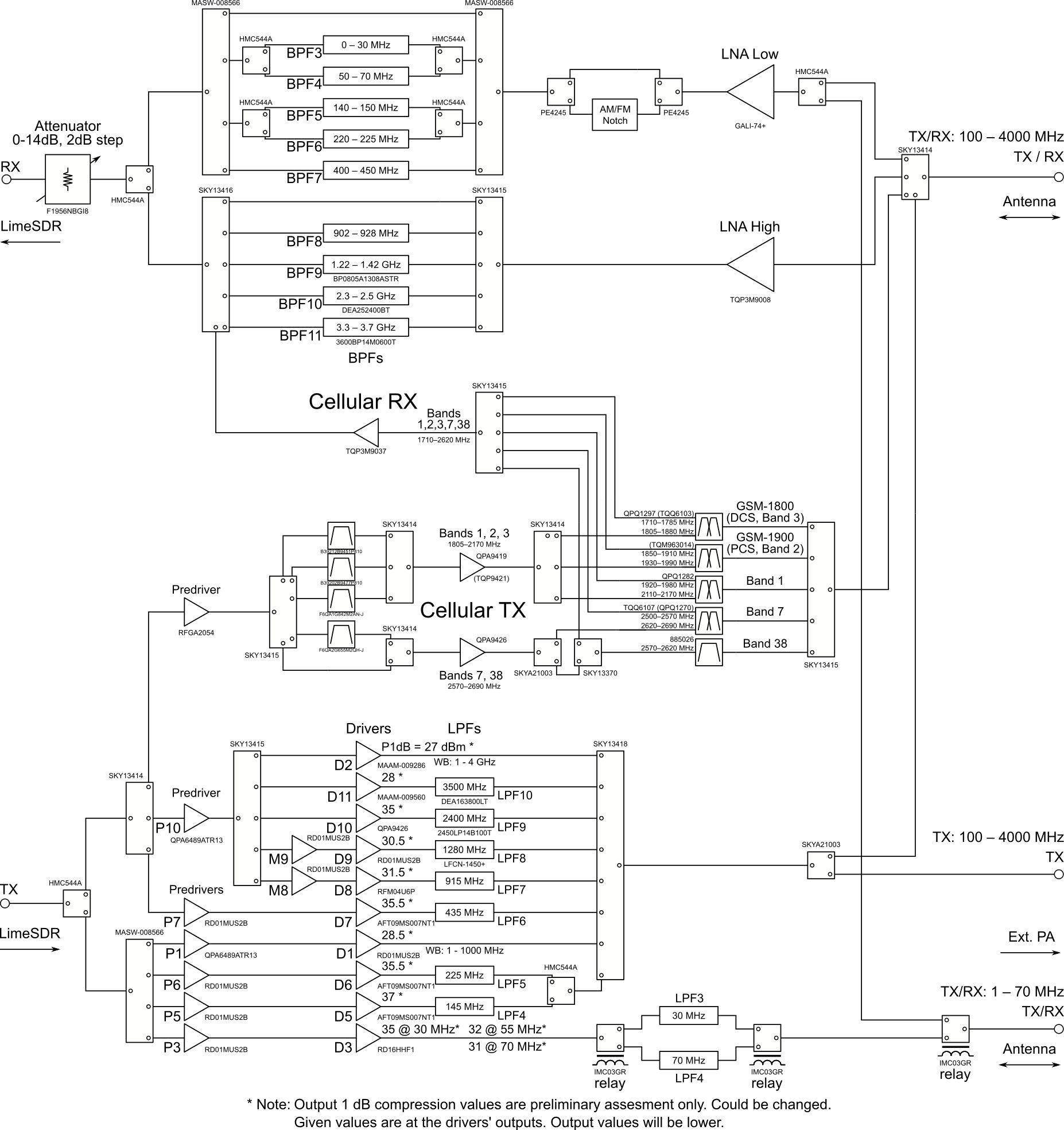

Block Diagram

* Output 1 dB compression values are preliminary assessments only. Final values may differ. Values are given for the driver outputs - final output values will be lower.

Fulfillment & Logistics

All LimeRFE boards will be delivered to Crowd Supply’s warehouse for final distribution to backers worldwide. For more information, please see this page about ordering, paying, and shipping.
