PZSDR P047 RF-ADC and RF-DAC
An advanced single-chip SDR based on the AMD Zynq™ UltraScale+ XCZU47DR RFSoC
Back this project to help bring it into existence.
Funding ends on Jul 23, 2026 at 04:59 PM PDT.
Back this project to help bring it into existence.
Funding ends on Jul 23, 2026 at 04:59 PM PDT.
PZSDR P047 RF-ADC and RF-DAC is a powerful and versatile software-defined radio (SDR) platform. This advanced model is a single-chip SDR with a powerful onboard AMD Zynq™ UltraScale+ XCZU47DR RFSoC. With 8 receivers and 8 transmitters, PZSDR P047 is equipped for heavy-duty RF work.
With its high sampling rate and plentiful RX and TX, PZSDR P047 is an ideal testbed for advanced MIMO wireless applications. Plus, its wide RF range covers most commonly-used communications bands in the spectrum, making it able to test cellular one day, and shortwave the next.
PZSDR P047 has high-end capabilities, making it well-suited to multiple fields. It’s capable of generating RF at 6 GHz, making it excellent for researching and testing next-generation high-bandwidth wireless protocols. Its RF coverage lets users quickly pivot to testing medium-wave, HF, and shortwave.
Whether you’re in a professional engineering setting, or doing advanced research at a university, PZSDR P047 is the flexible, customizable solution you’ve been waiting for.
From phased array, to advanced radar, beamforming, and satellite ground transmissions. PZSDR P047 is the next must-have tool for advanced RF applications.
| PZSDR P047 RF ADC and RF DAC | E200 AD9361 | LimeSDR Mini 2.0 | HackRF One | PlutoSDR | Ettus B210 | RTL-SDR | |
|---|---|---|---|---|---|---|---|
| RF Chip | XCZU47DR | AD9361 | LMS7002M | MAX5864, MAX2837, RFFC5072 | AD9363 | AD9361 | RTL2832U |
| Frequency Range | 1 MHz - 6 GHz | 70 MHz - 6 GHz | 10 MHz - 3.5 GHz | 1 MHz - 6 GHz | 325 MHz - 3.8 GHz | 70 MHz - 6 GHz | 500 KHz - 1766 MHz |
| RF Bandwidth | 6 GHz | 56 MHz | 40 MHz | 20 MHz | 20 MHz | 61.44 MHz | 3.2 MHz |
| Sample Depth | 14 bit | 12 bits | 12 bits | 8 bits | 12 bits | 12 bits | 8 bits |
| Sample Rate | 5 GSPS for RF-ADC, 9.85 GSPS for RF-DAC | 61.44 MSPS | 30.72 MSPS | 20 MSPS | 61.44 MSPS | 61.44 MSPS | 3.2 MSPS |
| TX Channels | 8 | 2 | 1 | 1 | 2 | 2 | 0 |
| RX Channels | 8 | 2 | 1 | 1 | 2 | 2 | 1 |
| Duplex | Full | Full | Full | Half | Full | Full | No |
| Programmable Logic | XCZU47DR-2FFVE1156I | XC7Z020-2CLG400I | Lattice ECP5 | CoolRunner-II | XC7Z020-2CLG400I | Spartan-6 XC6SLX150 | N/A |
| Processor Core | 4x Cortex-A53 1.333 Ghz, 2x Cortex-R5 533 Mhz | Dual Core ARM Cortex-A9 | N/A | LPC4320 | Dual Core ARM Cortex-A9 | N/A | N/A |
| Logic Cells | 930K | 85K | 44K | 64 macrocell CPLD | 28k | 100k | N/A |
| Interface | Gigabit Ethernet, USB 3.0, 100G QSFP28 | Gigabit Ethernet | USB 3.0 | USB 2.0 | USB 2.0 | USB 3.0 | USB 2.0 |
| Open Source | Schematic & firmware | Schematic & firmware | Full | Full | Full | Schematic & firmware | No |
| Oscillator Precision | ±5 ppb | ±2 ppm | ±1 ppm initial, ±4 ppm stable | ±20 ppm | ±20 ppm | ±2 ppm | ±1 ppm |
| Transmit Power | Up to 0 dBm (depending on frequency) | Up to 10 dBm (depending on frequency) | Up to 10 dBm (depending on frequency) | -10 dBm+ (15 dBm @ 2.4 GHz) | Up to 6 dBm (depending on frequency) | 10 dBm+ | N/A |
PZSDR P047 is meant to be easy to develop for, and in that spirit, we have published our User Manual and DXF structural diagrams (ADB & ADT), released under a permissive, open source license. Before we ship to backers, we will release a PDF version of the schematics. Backers and customers will also have access to FPGA logic demos, ARM Vitis demos, PetaLinux demos, RF demos, and PYNQ demos to help inspire and inform their use of P047.
PZSDR P047 is meant to be easy to develop for, and in the spirit of that we will make the schematics PDF and a DXF structural diagram available under a permissible, open source license.

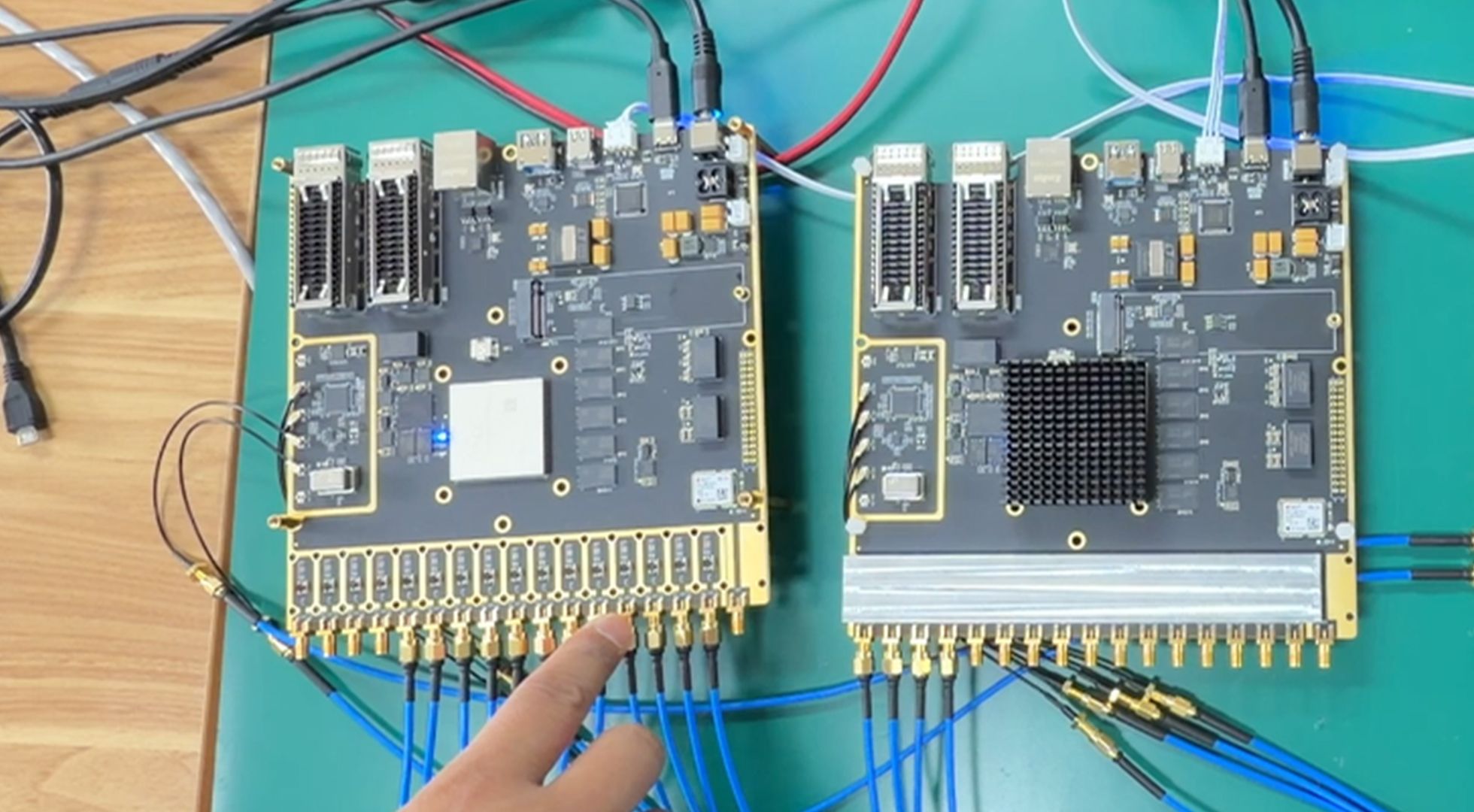

We produce and test the products here in Shanghai. Before arranging for shipment, we will conduct thorough testing on all products.
Having appropriate accessories is essential, which is why we are shipping them together with PZSDR P047 so you do not have to worry about sourcing them yourself. If we encounter any new challenges or delays, we will keep you posted through regular campaign updates and periodic post-campaign updates.
After our production run is complete, we will package everything up and send it along to Crowd Supply’s fulfillment partner, Mouser Electronics, who will handle distribution to backers worldwide. You can learn more about Crowd Supply’s fulfillment service under Ordering, Paying, and Shipping in their guide.
Produced by Puzhi in Shanghai, China.
Sold and shipped by Crowd Supply.

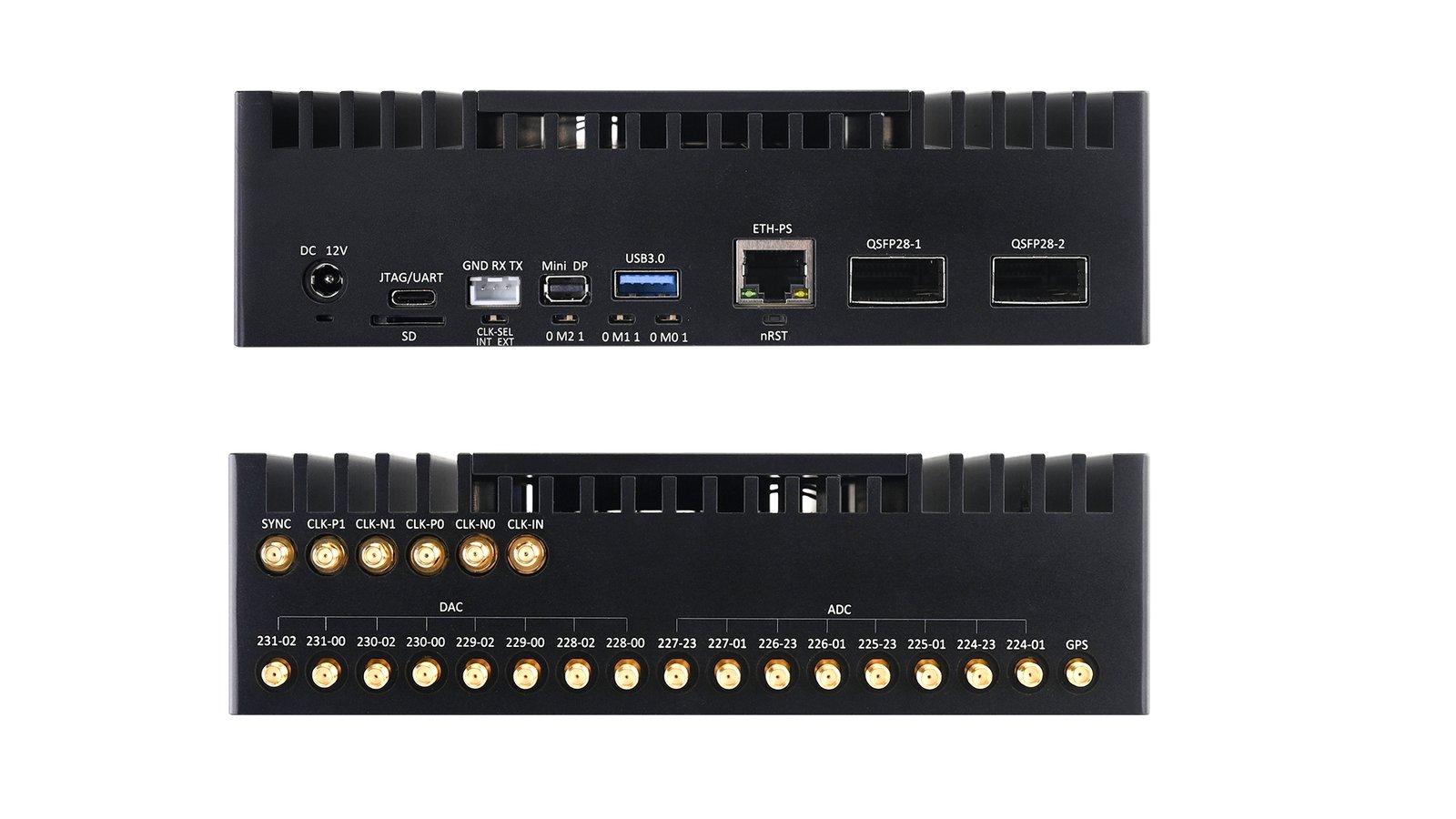

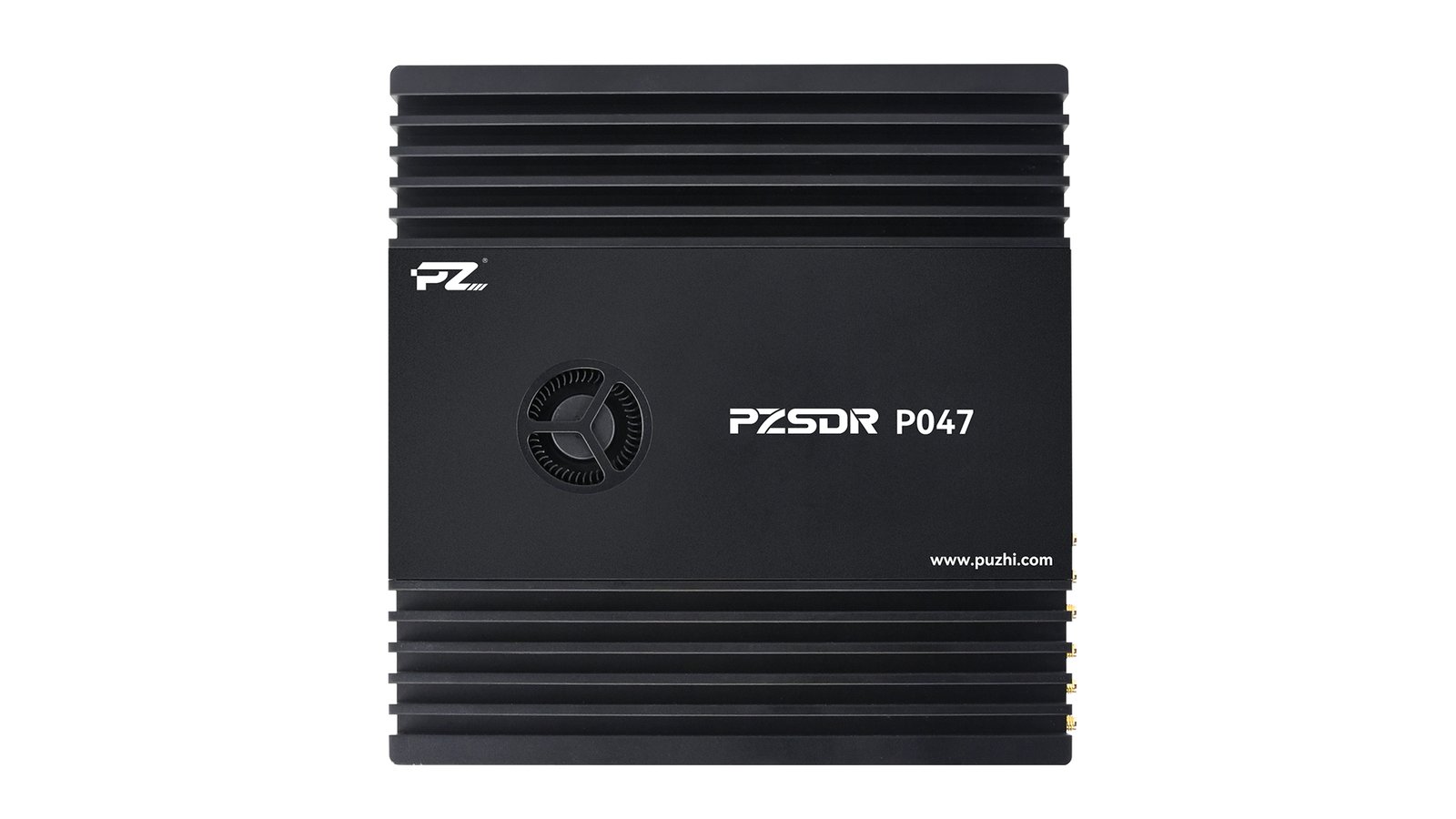

A powerful, single-chip software-defined radio (SDR) platform based on the ZYNQ UltraScale+ RFSOC XCZU47DR with support for 8T8R synchronized operation, an RF range of 1 MHz to 6 GHz, a 5 GSPS RF ADC, and a 9.85 GSPS RF DAC. Comes with a pre-installed enclosure, a 12 V (3 A) power adapter, a GPS antenna, 23 RF cables, a USB Type-C cable, a two-sided USB 3.0 cable, a gigabit Ethernet cable, a 3-pin XH2.54 cable, a 32 GB SD card, and an SD card reader
