TinyPICO

by Unexpected Maker

A tiny, mighty ESP32 development board

Crowdfunding Page History

This page is an archive of the original crowdfunding campaign for this project. It may not be up-to-date with the latest updates and product availability. Return to the current project page.

$39,929 raised

of $100 goal

39,929% Funded! Order Below

Pledge Now

$26

Single TinyPICO

Your very own TinyPICO with MicroPython pre-installed. Comes with unassembled male headers, stackable headers, a JST PH battery connector, and a JST MicroBlade battery connector.


$45

TinyPICO 2 Pack

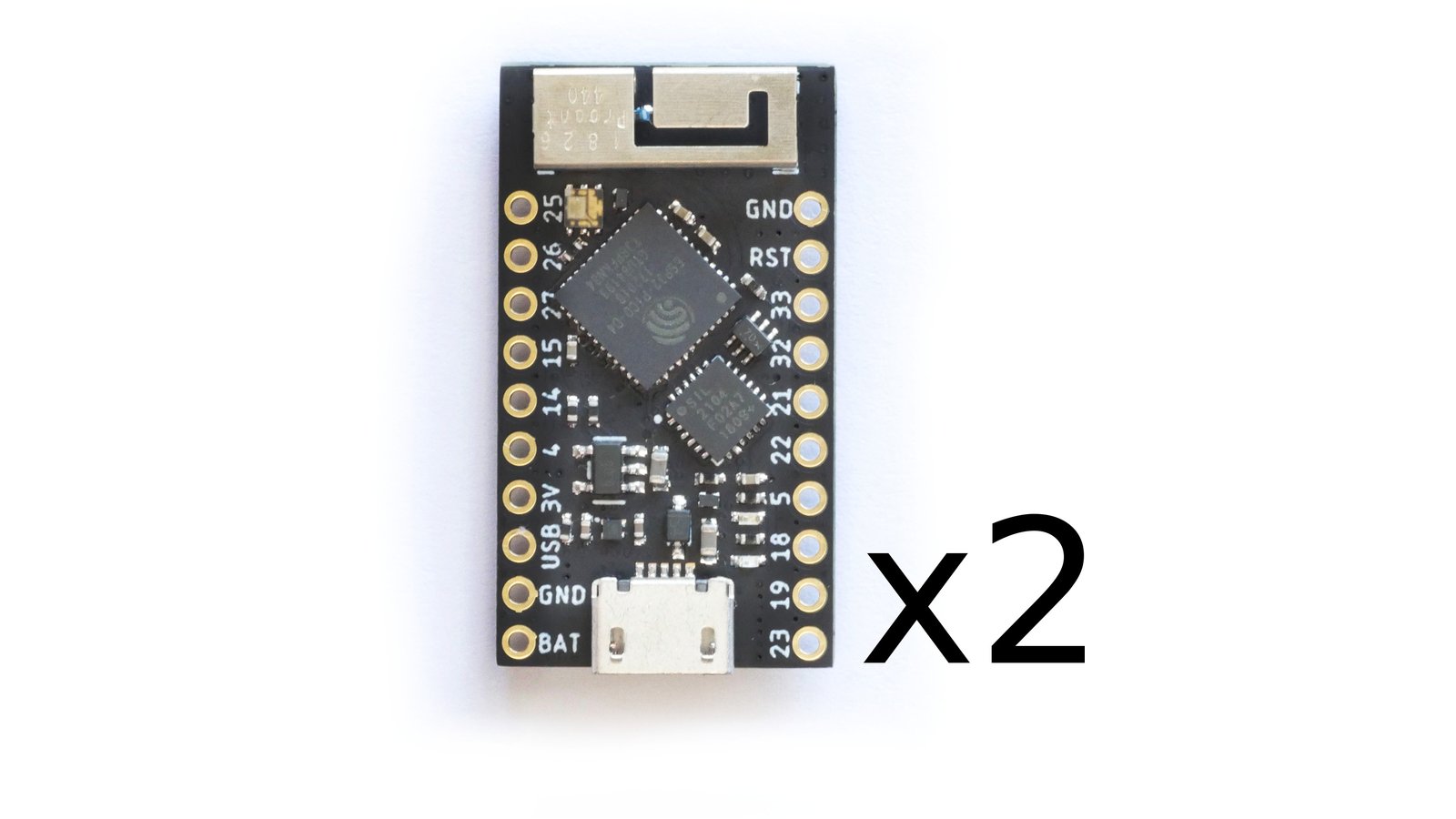

Two TinyPICOs with MicroPython pre-installed. Each TinyPICO comes with unassembled male headers, stackable headers, a JST PH battery connector, and a JST MicroBlade battery connector.


$79

TinyPICO 4 Pack

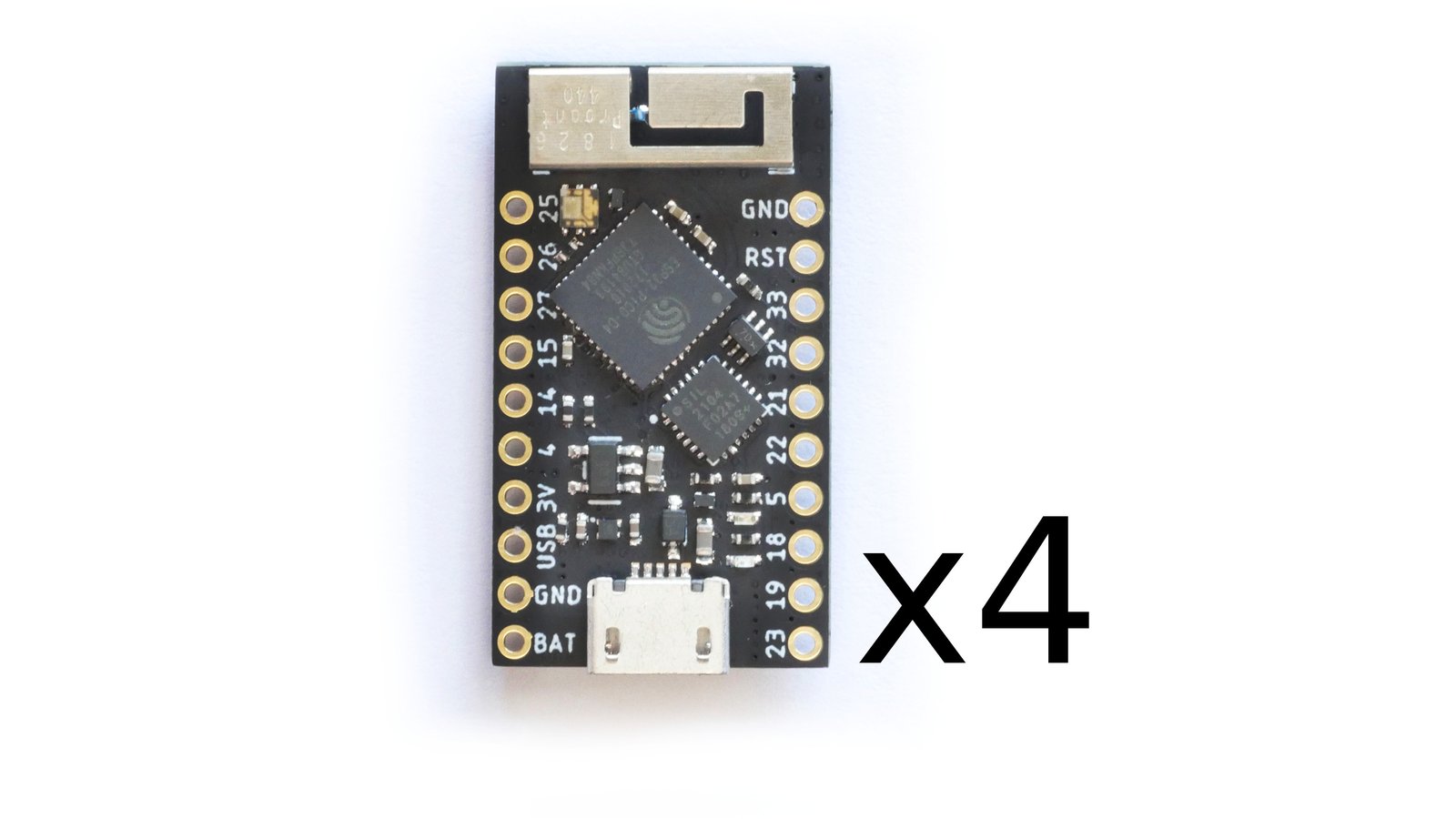

Four TinyPICOs with MicroPython pre-installed. Each TinyPICO comes with unassembled male headers, stackable headers, a JST PH battery connector, and a JST MicroBlade battery connector.


$45

TinyPICO Play Pack

Your very own TinyPICO with MicroPython pre-installed and one of our limited edition Play Shields. The TinyPICO comes with unassembled male headers, stackable headers, a JST PH battery connector, and a JST MicroBlade battery connector.


$55

TinyPICO Shield Pack

A Shield Pack for your Tinypico: you'll receive an Audio Shield, an RTC Shield, an I²C Grove Shield, a Proto Shield and a side-by-side 3 Up Shield + all headers.

Details

Recent Updates


As Featured In

Hackster News

"Unexpected Maker’s new TinyPICO ESP32 stands out, because it’s significantly smaller than any other board on the market."

Electronics-Lab.com

"The designers of the board wasn't satisfied with the existing ESP32 boards that compromised some of it's features, so they decided to build TinyPICO by adding a set of new capabilities."

MickMake

"It looks to be a nice little package based on the ESP32."

Hackster News

"You can easily fit TinyPICO into even the smallest projects in order to gain all of the benefits of the ESP32."

MickMake

"Great idea. I think it's one of the smallest ESP32 boards around!"

TinyPICO is the world's smallest, fully-featured ESP32 development board, designed to give you access to the power of the ESP32’s dual core 240 MHz processor and internet connectivity, all in a package smaller than your thumb!

Why We Made TinyPICO

There are quite a few ESP32 boards on the market, but they all require you to compromise on one or more features. Some don't have on-board battery management, while some do but they don't have low deep sleep current. Others have great low-power modes, but are large and not breadboard-friendly, and none of them have extra RAM unless you go for a more expensive and larger WROVER-powered board.

We just weren't happy with the status quo - we wanted to have our cake and eat it too!

So we designed the smallest un-compromising ESP32 development board in the world, and then went a step further and gave it 4 MB of extra RAM, an on-board RGB LED, and more juice with a 700 mA 3.3 V regulator. Then we made some shields for it.

Until you hold it in your hand, you really can't appreciate just how small the TinyPICO is.

Features & Specifications

  • Processing:
    • 32-bit dual-core processor operating at 240 MHz
    • 4 MB SPI flash
    • 4 MB extra PSRAM
  • Wireless:
    • 2.4 GHz Wi-Fi - 802.11b/g/n
    • Bluetooth BLE 4.2
    • 3D antenna
      • Power:
      • 700 mA 3.3 V LDO regulator
      • Optimised power path for low-power battery usage
      • LiPo battery management
      • Battery pads on the bottom support both JST PH & MicroBlade connectors (included unassembled with every TinyPICO)
      • Power (red) & charge (orange) LEDs
      • Form-factor:

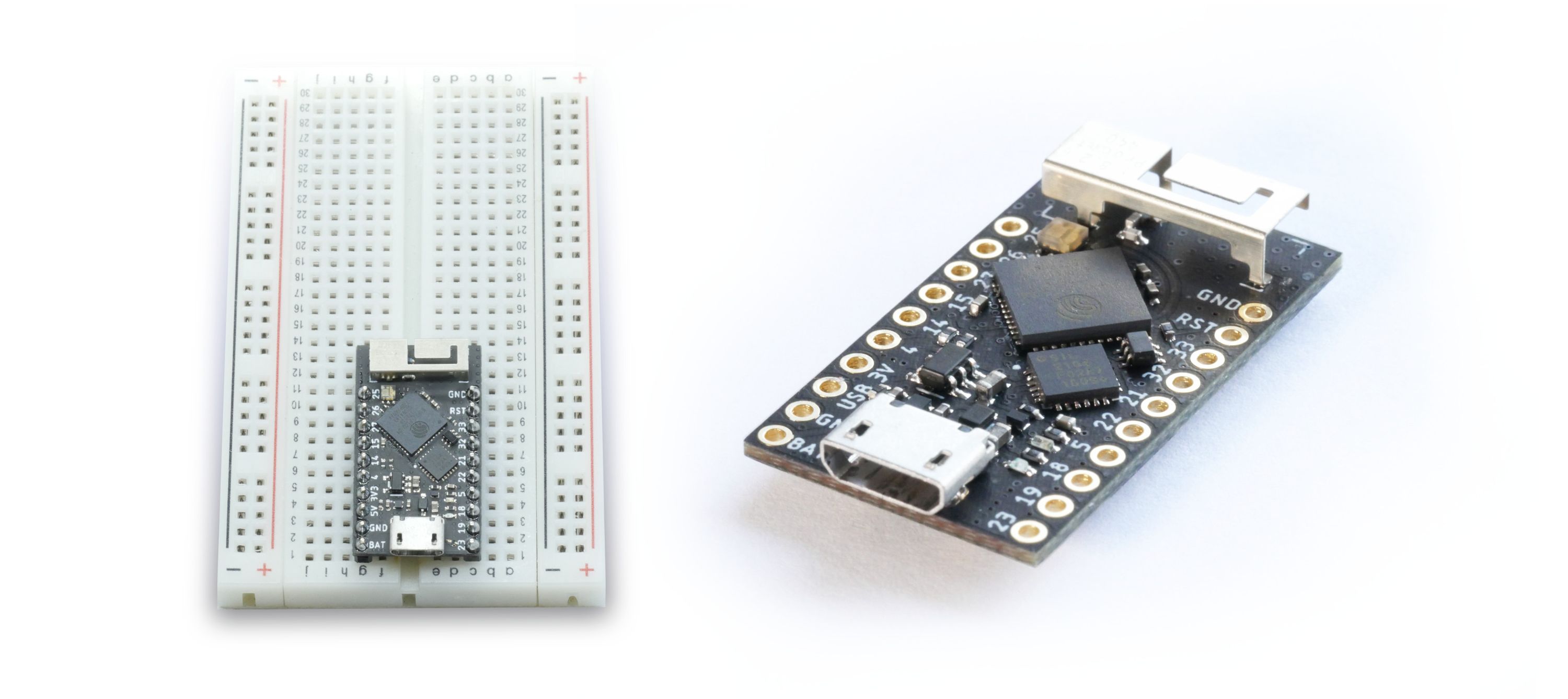

      • Breadboard-friendly

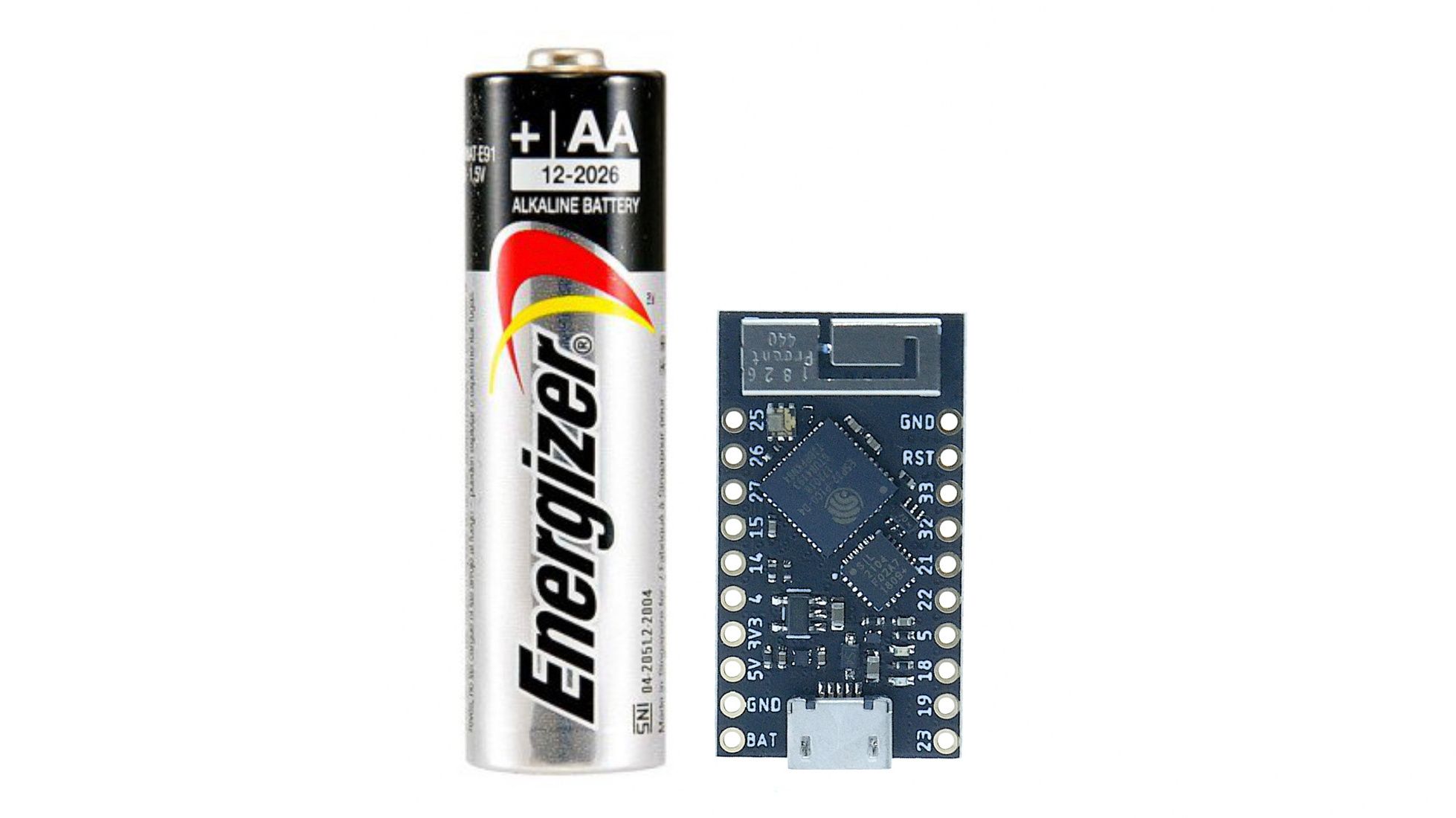

      • Oh, it’s tiny! Just 18 mm x 32 mm
      • Connectivity:
      • 14x GPIO broken out to standard pitch headers
      • USB + serial/UART for programming
      • APA102 RGB LED
      • Control:
      • MicroPython pre-installed
      • Supports Arduino IDE
      • Supports Espressif IDF
      • Lots of example code and libraries

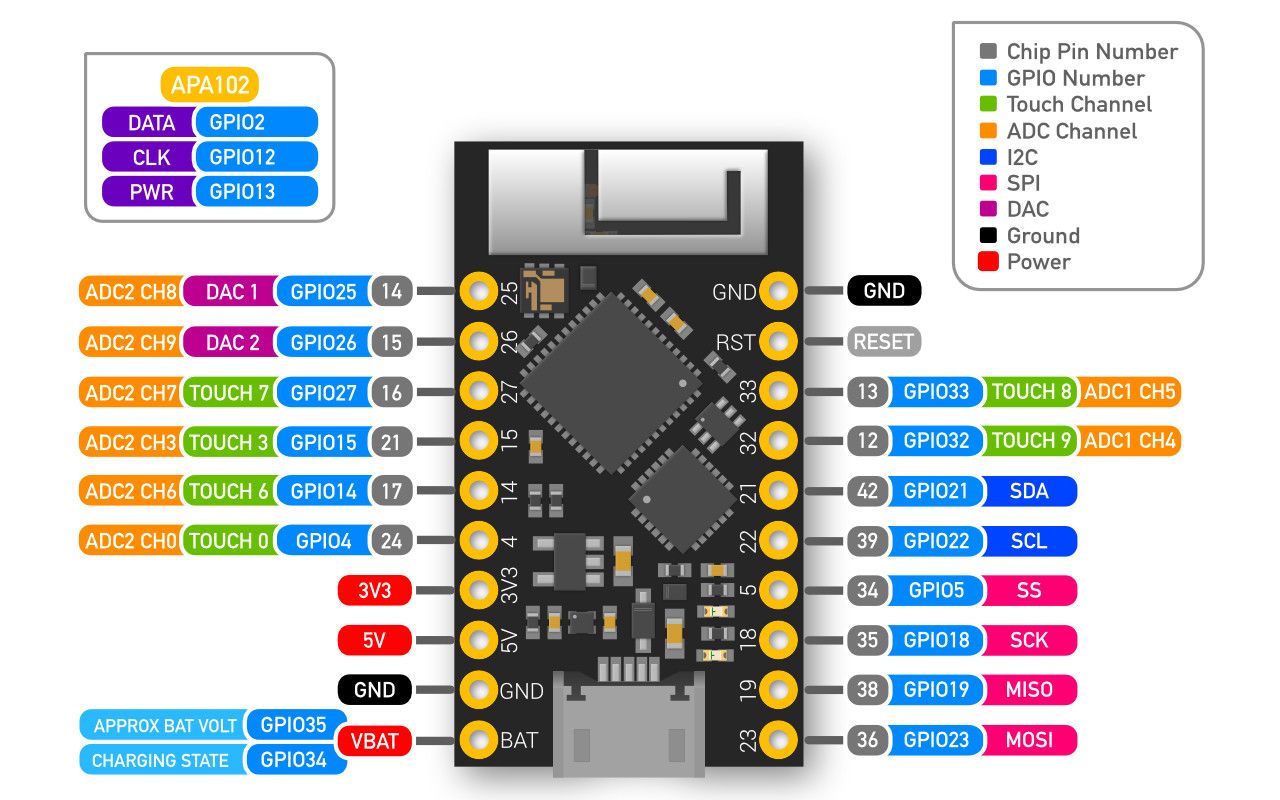

Pinout Diagram

Development Platforms & Software Documentation

TinyPICO ships with mainline MicroPython pre-installed and supports Arduino IDE and Espressif IDF, so you have the flexibility to code the way you want.

We have been working hard behind the scenes on MicroPython and Arduino C++ helper libraries for TinyPICO as well as collecting and even writing MicroPython libraries for all the hardware we use on our shields.

We have basic coding examples on our TinyPICO website and all of our libraries are being added to the TinyPICO GitHub repository.

Optimised Power Paths & Deep Sleep Current

TinyPICO has been designed with two isolated power paths: a 5 V path and a 3.3 V path. Any components that are not needed for operation via battery or via the 3.3 V power pin are isolated within the 5 V power path, and are totally shut down when no USB cable is plugged in.

In-fact, even the power & charge LEDs are shutdown when no 5 V power source is present.

Deep sleep has been optimised for all development platforms, and though we have seen it go as low as 10 uA, our official current rating in deep sleep is 18 uA.

Note: TinyPICO includes an on-board APA102 RGB LED that has a quiescent current of 1 mA.

Thankfully we have a solution for deep sleep. GPIO13 controls the power to the APA102 using a PNP transistor via a high-side switch, so taking GPIO13 high shuts down power to the APA102. It's essential to do this before going into deep sleep to ensure the lowest current draw possible.

In MicroPython, it's also required to shutdown GPIO2 and GPIO12 (DATA and CLK for the APA102) as MicroPython uses IDLE HIGH as the default clock state, so you can get current leakage via the CLK or DATA, even with no power to the APA102 directly. We have created some helper functions for you in our TinyPICO MicroPython helper library to make this easy.

Open Source

We love open source hardware! Seon started his electronics journey digging through schematics and board layout files from the likes of Adafruit, Sparkfun, and many others, and it's only fitting that we now gave back to the community by making TinyPICO fully open source.

All hardware is released under the CERN open hardware license, so please make yourself familiar with it before you decide to fork or use the files.

All software is released under the MIT open software license, so again, please make yourself familiar with it before you decide to fork or use the files.

All of the design files for the TinyPICO and all of the shields shown here are available from the TinyPICO GitHub repository

Package Contents

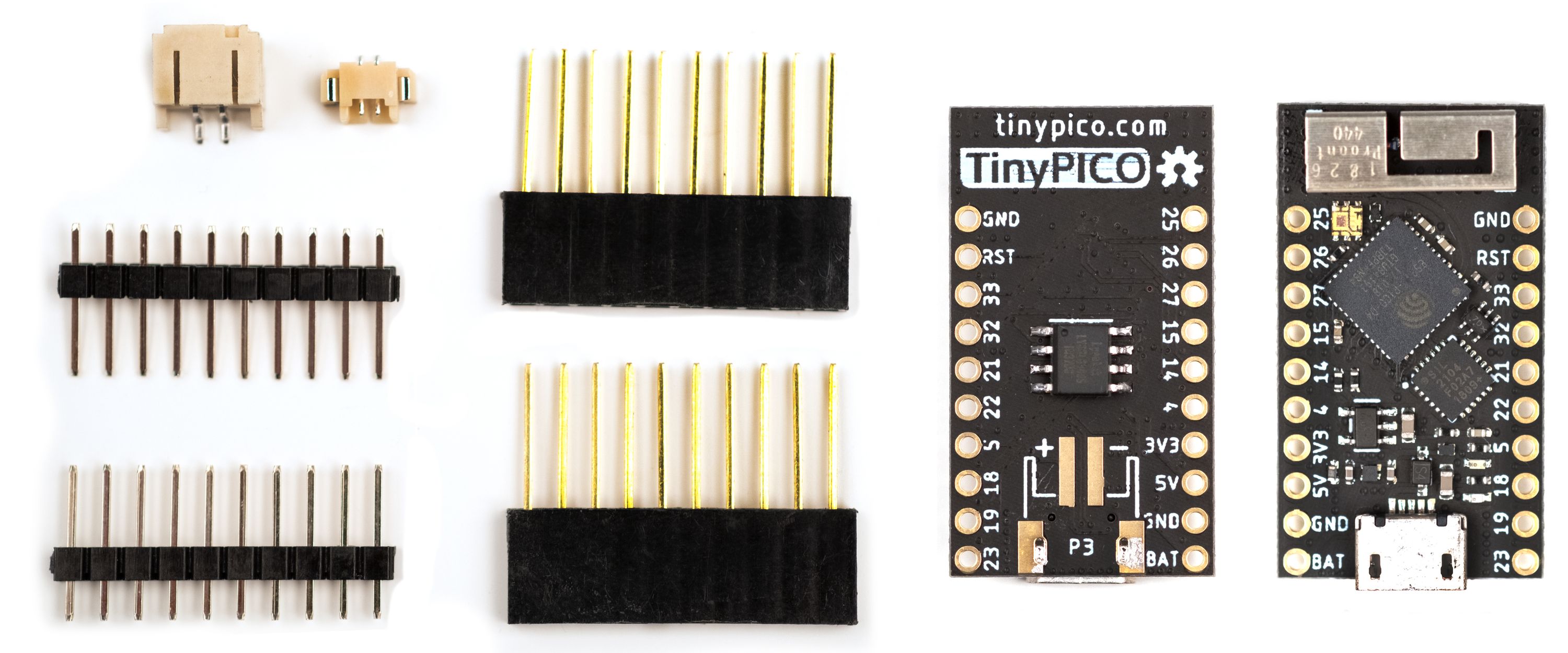

Each TinyPICO comes in an anti-static bag that includes:

  • 1x TinyPICO
  • 1x Set of male headers
  • 1x Set of female stackable headers
  • 1x JST PH connector
  • 1x JST MicroBlade connector
  • 1x Printed pinout reference card

The headers and JST connectors come loose, so you can chose which you would like to use and solder those on yourself.

Why do we ship with two different JST connectors? The smaller MicroBlade connector is becoming more popular because of how small it is, but many of you (like us) already have LiPo batteries with the PH connectors on them, so we decided it was just nicer for us to provide both, so you can choose which one suits you best.

TinyPICO Shields

We have an assortment of shields available for TinyPICO, and others in the community are designing shields and plugin boards too.

We will be keeping a list of all add-on boards and shields being made for the TinyPICO on our TinyPICO website.

All shields come with appropriate headers, but they are loose, so some soldering is required.

Play Shield

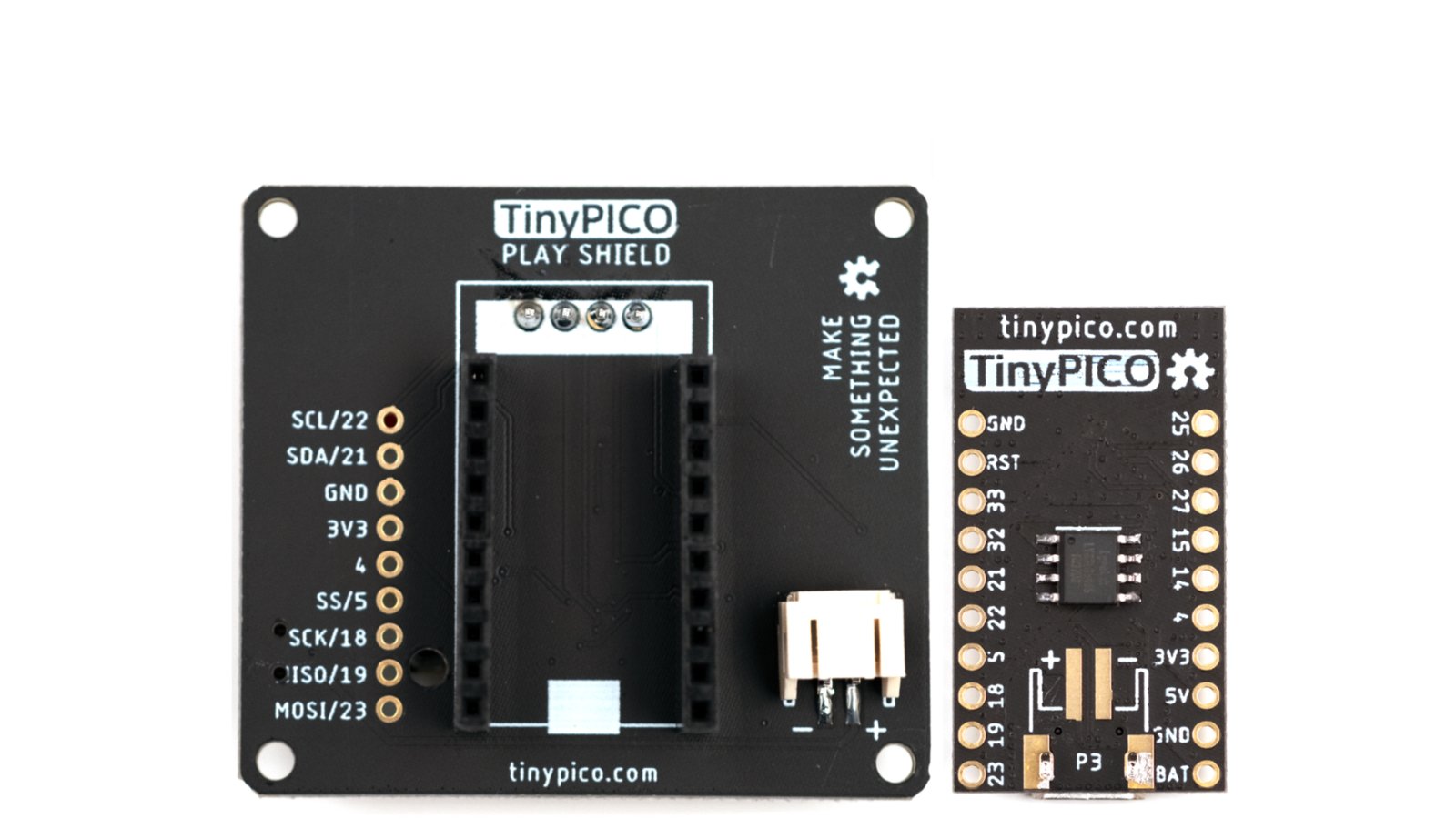

The Play Shield was designed to be a multi-purpose board that can be used for all sorts of activities like prototyping output, experimentation, and even games. It has lots of goodies on it, including:

  • 128x64 white OLED
  • 3-axis accelerometer
  • Light sensor
  • Mono amplifier
  • Magnetic buzzer
  • Blue LED
  • Four input buttons + reset button
  • LiPo connector plus power switch
  • Headers for your TinyPICO to plug right into

Play Shield Pinout

If you power the Play Shield and TinyPICO from the shield JST connector, you can use the slide switch on the shield to power down everything. Make sure you have the switch turned on, though, if you want to charge the battery when the USB cable is plugged in.

Audio Shield

The Audio Shield brings the noise with:

  • 1.5 W mono amplifier - which can be turned off to reduce power consumption
  • Magnetic buzzer
  • Trimmer potentiometer for gain control
  • A switch to swap between on-board buzzer and external speakers that can be connected via provided header

Audio Shield Pinout

Audio-in is connected to GPIO25, one of the two DACs (Digital to Analog Converter) and GPIO4 is connected to the amplifier (PAM8301) to allow you to shut down power to the amp to reduce current... ideal when running off battery.

RTC Shield

Accurate timing is important with electronics! The RTC Shield helps with that - featuring:

  • MCP7940N RTC
    • Ultra-low power consumption
    • Goodies like calendar and alarms
    • MFP (Multi Function Pin) - disconnectable via solder jumper if you need the pin for something else
  • Battery holder for CR1025 3 V coin cell battery (not provided)

RTC Shield Pinout

Grove I²C Shield

Grove is an incredibly convenient connection system with a large ecosystem of add-on boards. The Grove I²C Shield lets you quickly tap into that ecosystem:

  • Plug up to three I²C Grove modules into a TinyPICO
    • A fourth device can be added via the provided headers
  • 10K pull-ups on the SDA and SCL pins - disconnectable via solder jumpers

Grove I²C Shield Pinout

Note: Grove connectors can be used for more than just the I²C protocol, and though you can technically connect other protocol Grove devices to this shield, it's not recommended or supported by us.

Proto Shield

Sometimes you just want to add a few small components to a project, and pulling out the perfboard seems like too much hard work. Yes, that's how we feel too! Also, how often is it simply a button or two that you want to add?

The Proto Shield gives you the space to do just that, but with two buttons already on and wired up to GPIO14 and GPIO15 so you can skip that step. It also breaks out the reset button as a convenience.

3 Up Shield

The 3 Up shield is a simple and convenient way for you to connect a TinyPICO and two other shields together without needing to go to a breadboard or use stackable headers.

The shield also comes with a 3D-printed base for it to sit on, so that you won't scratch your desk from the header socket solder joints!

TinyPICO and Heat

The Espressif PICO-D4 is a very powerful SIP (System In a Package) for its size, and when running Wi-Fi continuously it gets hot, and because the TinyPICO is small, there is not a lot of place for heat to transfer to.

This is nothing to be alarmed about though. Even when running hot, everything is well within spec. It's just something we wanted everyone to be aware of.

If you need to keep Wi-Fi active for long periods of time, like for a soft-ap setup, make sure you don't enclose your TinyPICO in a small case that has no air flow, and maybe even consider adding a small heatsink to the board to help with heat transfer.

Manufacturing Plan

Our current plan is we will be doing all of the manufacturing ourselves in Melbourne, Australia. That includes assembly, testing, and packaging for all pledge levels. If the campaign gets too big for us to manage ourselves, we have partners in Shenzhen, China ready to go as a backup, including a project manager on the ground in Shenzhen.

Our PCBs are manufactured at JLCPCB in China, and we source our components from the USA and trusted suppliers in China.

Testing & Firmware Loading

We built a custom TinyPICO Flashing & Testing Jig, and every TinyPICO goes through the test jig twice.

Each time through the test sequence we perform the following:

  • All power paths are checked for correct voltages
  • PICO-D4 revision check takes place, then it is erased
  • PICO-D4 is then flashed with mainline MicroPython
  • Testing code is uploaded to the TinyPICO
  • All GPIO's are tested
  • PSRAM is tested
  • Wi-Fi bring-up and connectivity is tested
  • A bunch of MicroPython libraries and hello world scripts are installed
  • Final visual inspection of the board

We are pretty serious about making sure every TinyPICO works great.

Shipping & Fulfillment

Once orders have been packaged up by us, they will be sent to the US to be distributed to backers using Crowd Supply’s fulfillment services.

Delivery within the US is included in the listed price while delivery outside the US will incur the shipping surcharge listed for each pledge level.

Deliveries to outside the US will have VAT and customs duties paid in advance, so your package will ship straight to your door, and there's no need to deal with your customs office.

Note: We are aware that the doc linked to above states VAT and customs are the responsibility of the buyer, but Crowd Supply are in the middle of transitioning to this new VAT/customs pre-paid system and we have confirmed that our campaign is using this new system.

For more information, see Crowd Supply’s article on Ordering, Paying, Shipping: The Details.

Risks & Challenges

Designing hardware is no easy task, but TinyPICO has been through a long and thorough development and prototyping process (some might say too long). So what we have now is a tried and tested product that's been looked at by many eyes during its journey.

Shipping hardware also has its own set of risks. Parts might not arrive on time, or might become discontinued or change without notice from the manufacturer.

We have contingencies in place, including multiple sources for obtaining components, and multiple options for some components that can easily be interchanged during manufacturing if required.

Of course, should any setbacks arise during the manufacturing process, we'll keep backers apprised through project updates.
